Rear Door Latch

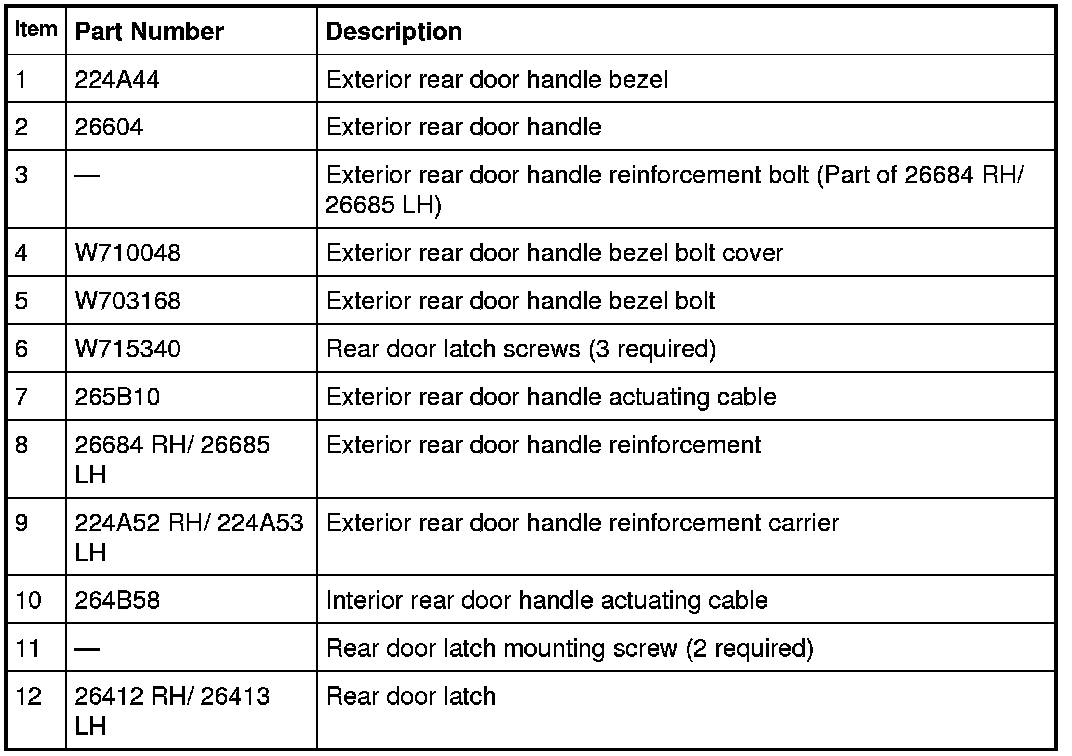

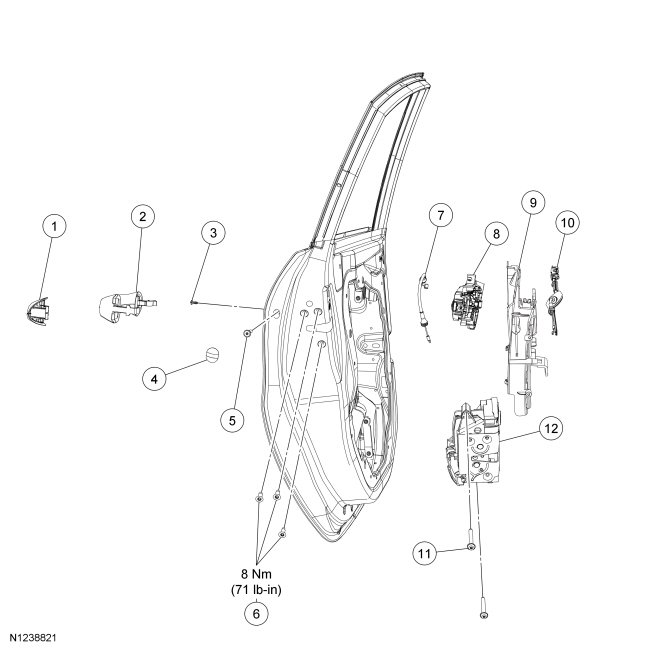

Rear Door Handles, Locks and Latches - Exploded View

NOTE: LH side shown, RH side similar.
