Engine Lubrication

Engine Lubrication Components - Exploded View

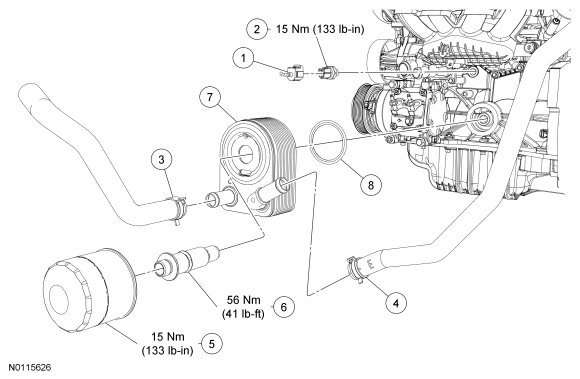

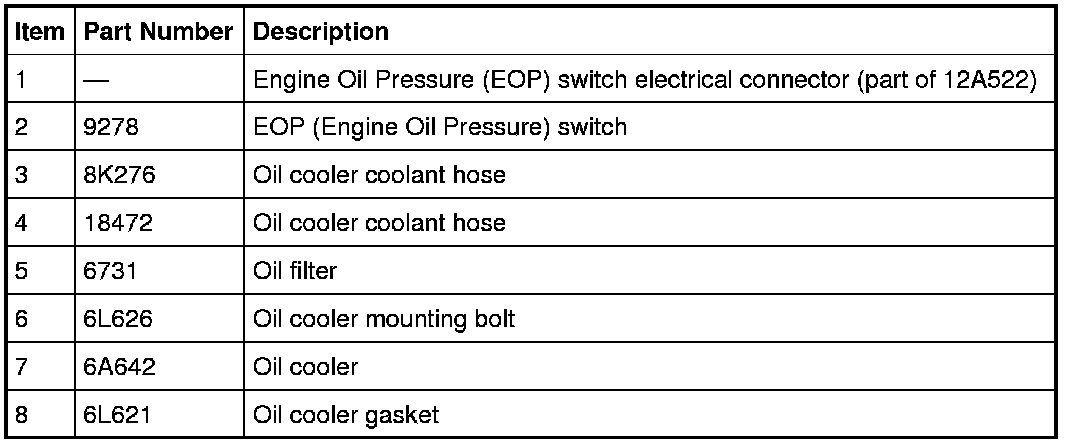

Oil Filter, Oil Cooler and Engine Oil Pressure (EOP) Switch

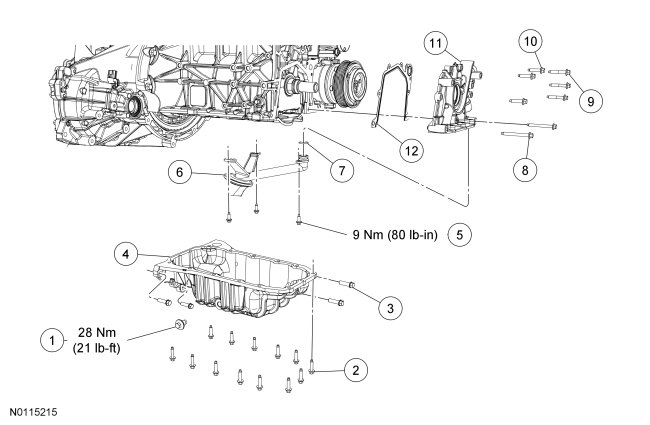

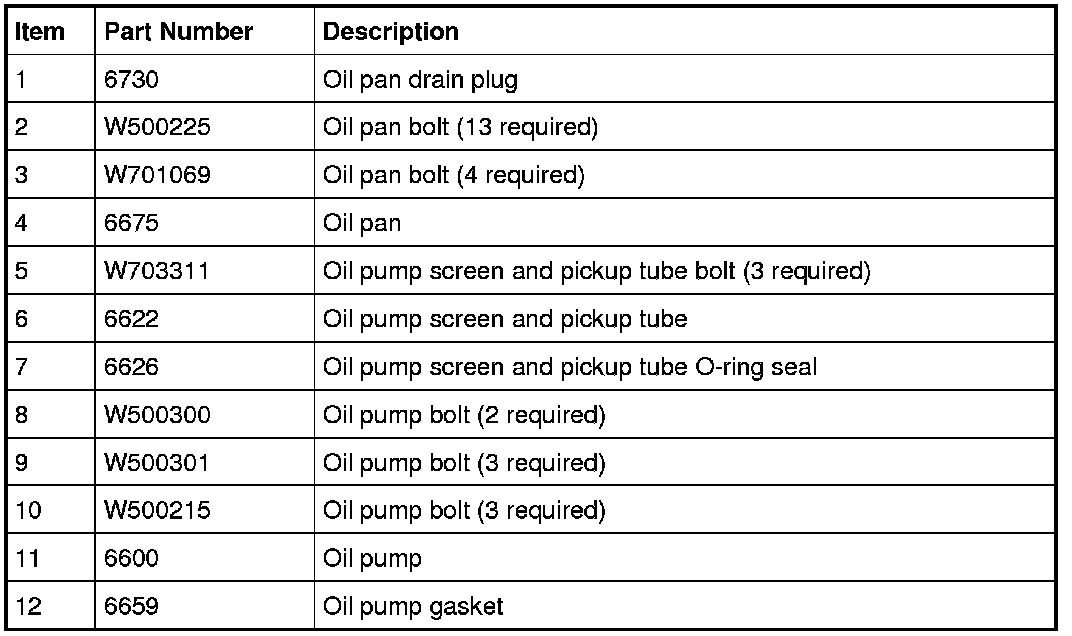

Oil Pan, Oil Pump and Oil Pump Screen and Pickup Tube

NOTE: Automatic transaxle shown, manual transaxle similar.










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
