Control Module, A/T
>>

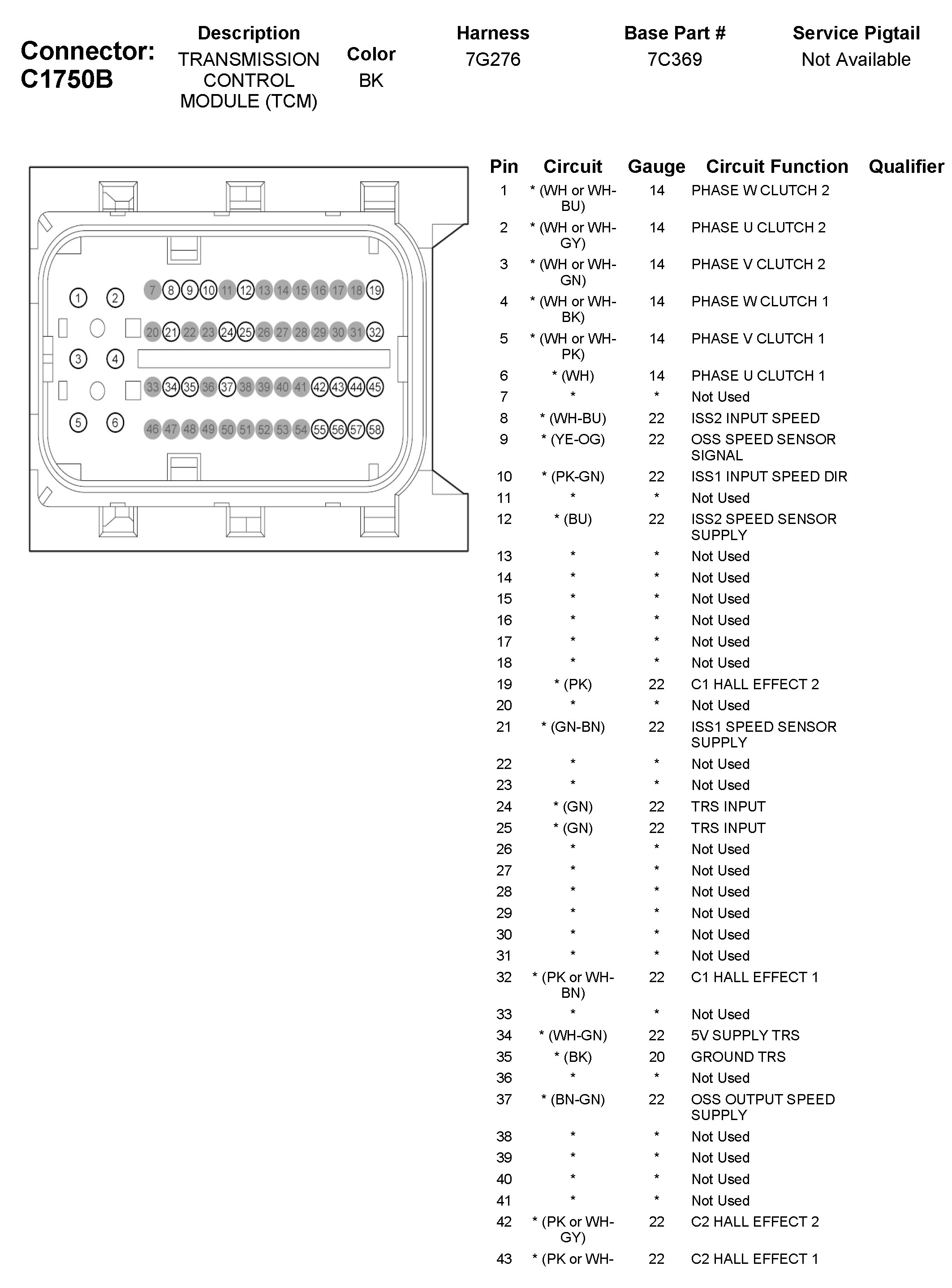

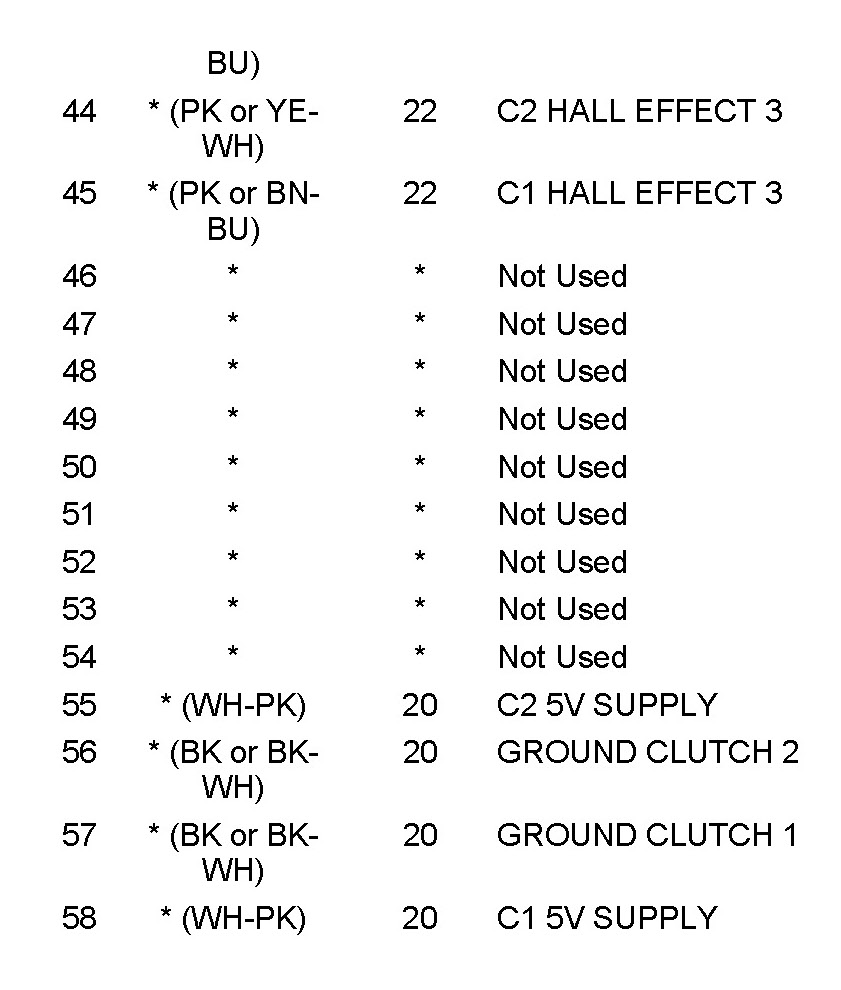

C1750B Transmission Control Module (TCM)
C1750B Transmission Control Module (TCM)
