lemon-mirror
:
Home
>>
Ford
>>
2012
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

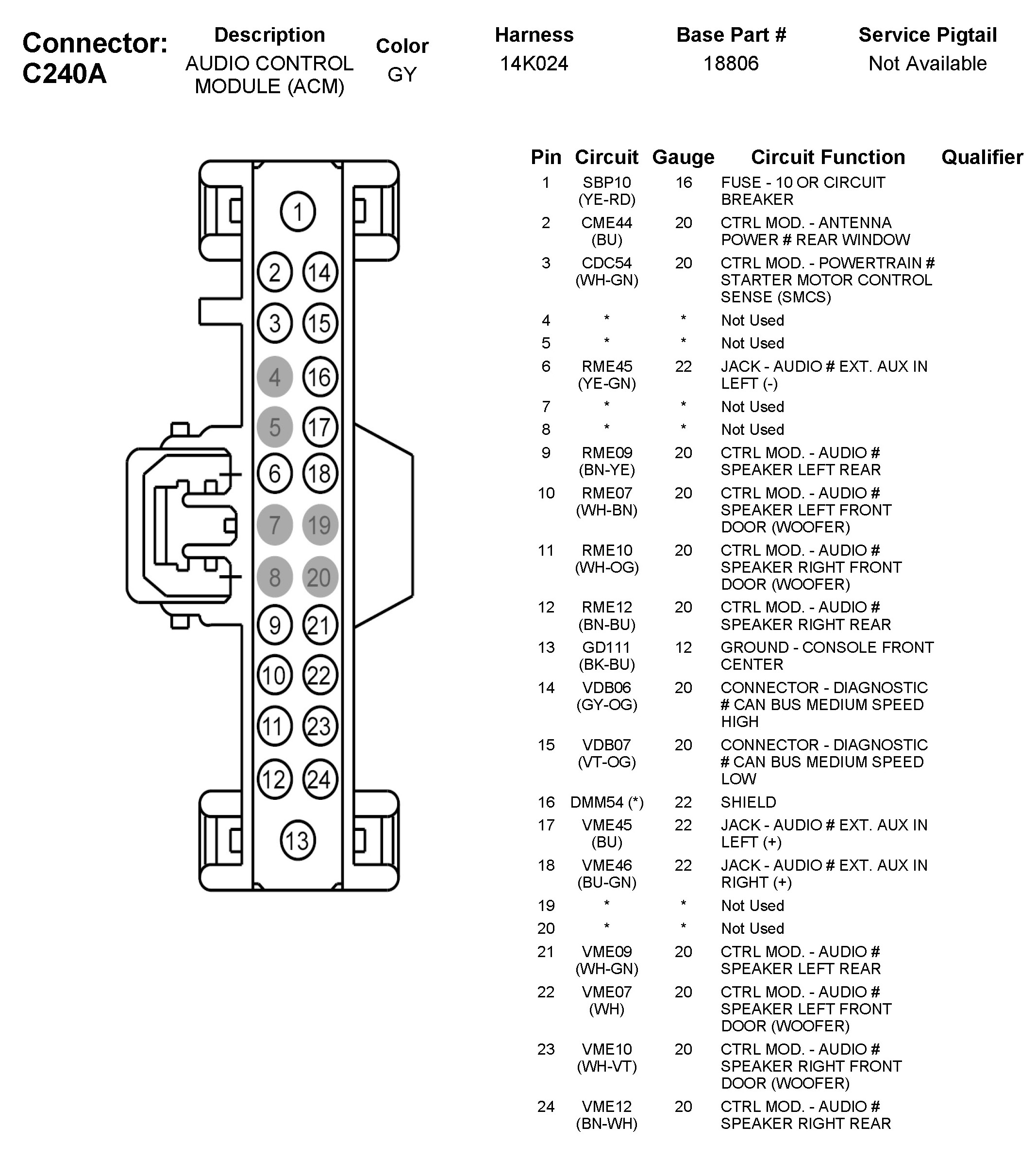

C240A Audio Control Module (ACM)
C240A Audio Control Module (ACM)
