Communications Control Module
>>

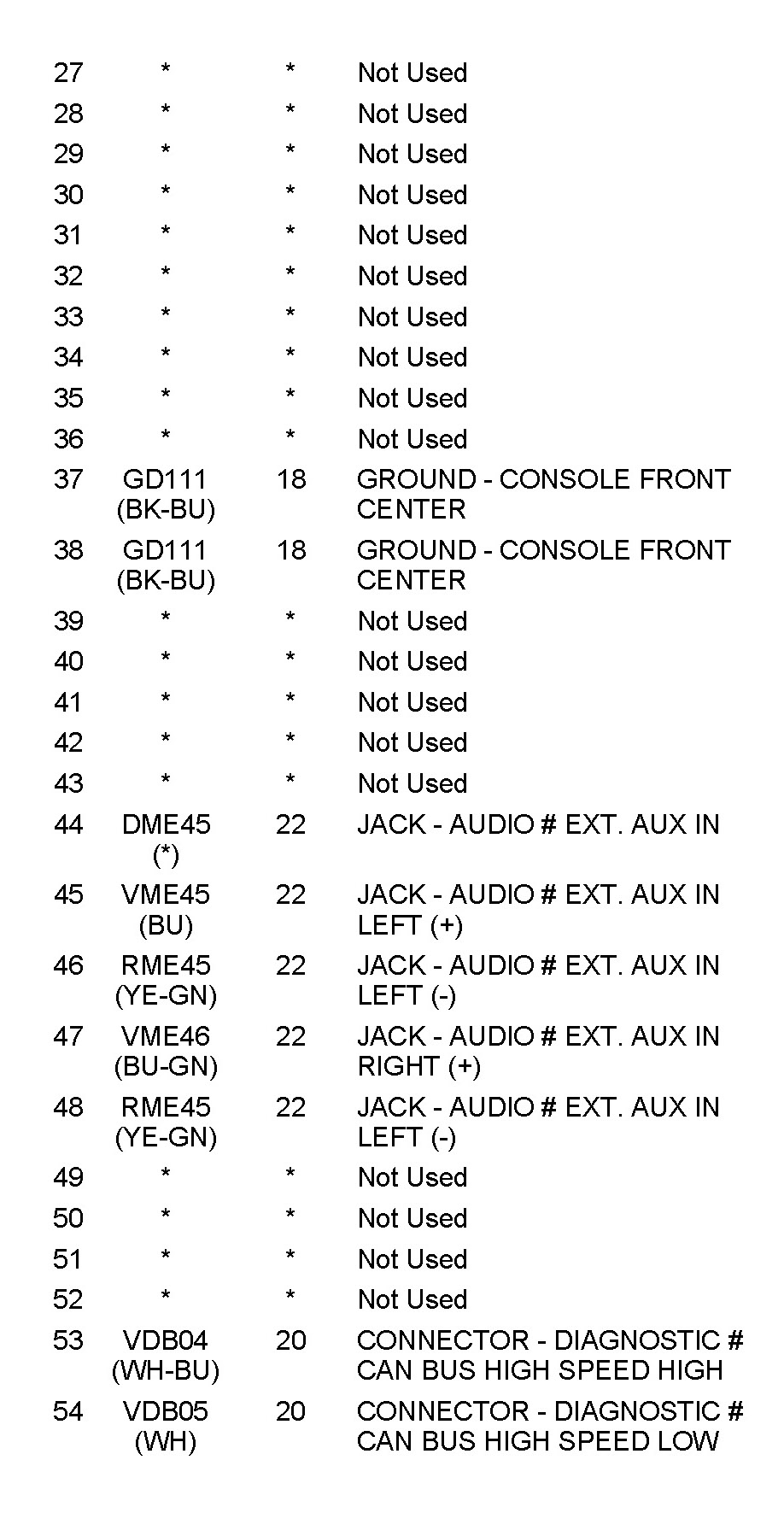

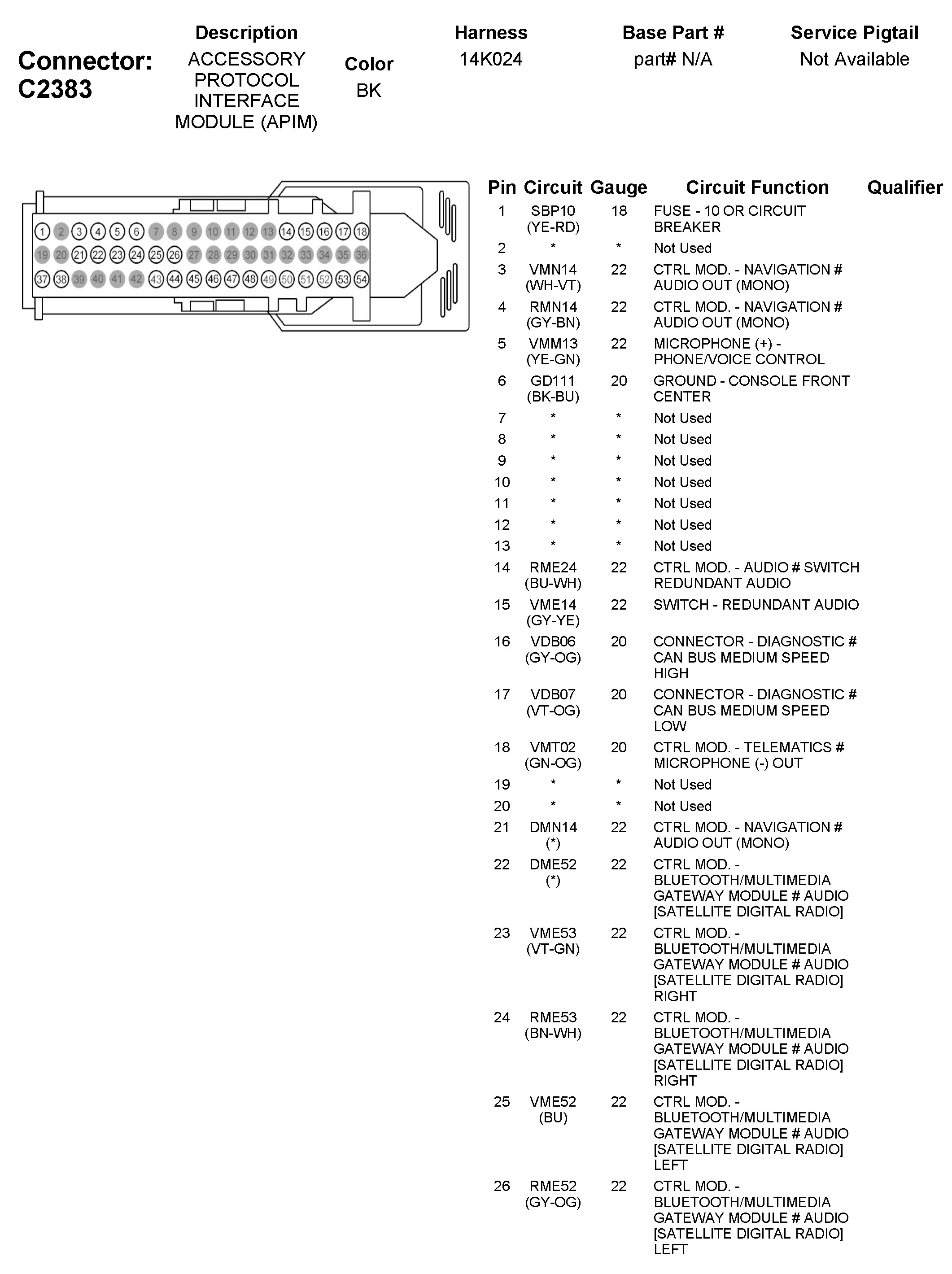

C2383 Accessory Protocol Interface Module (APIM)
C2383 Accessory Protocol Interface Module (APIM)
