Intake Manifold
Using new gaskets, install the intake manifold.

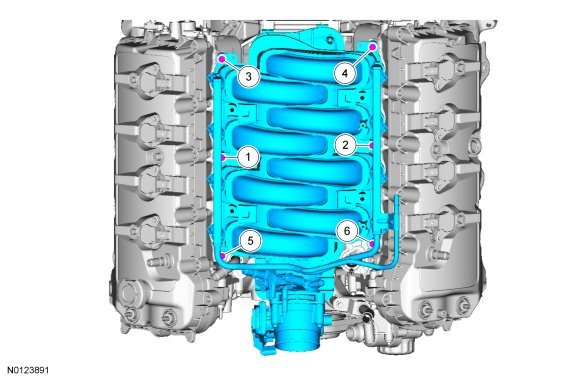

Tighten the 6 intake manifold bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten an additional 45 degrees.
Using new gaskets, install the intake manifold.
Tighten the 6 intake manifold bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten an additional 45 degrees.
