Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

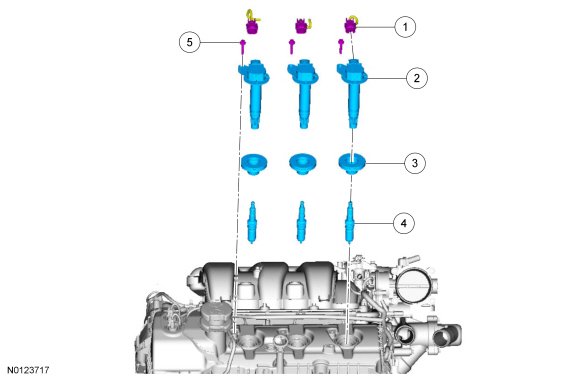

Exploded View

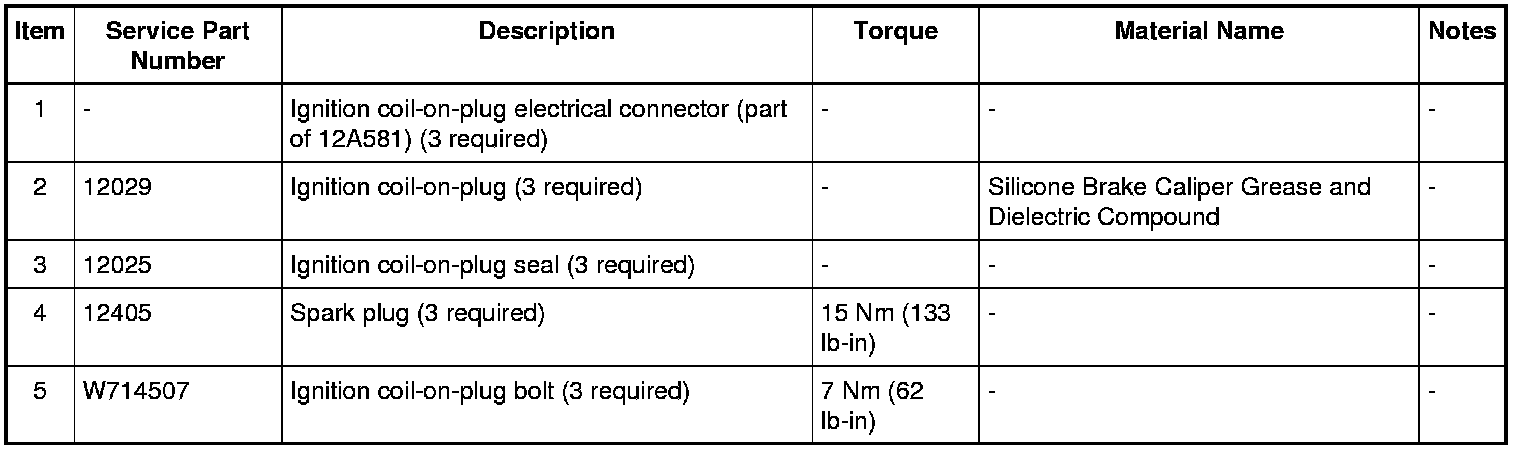

Engine Ignition Components

LH (Left Hand) shown, RH (Right Hand) similar.
