Ford
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Power Distibution Box
Power Distibution Box

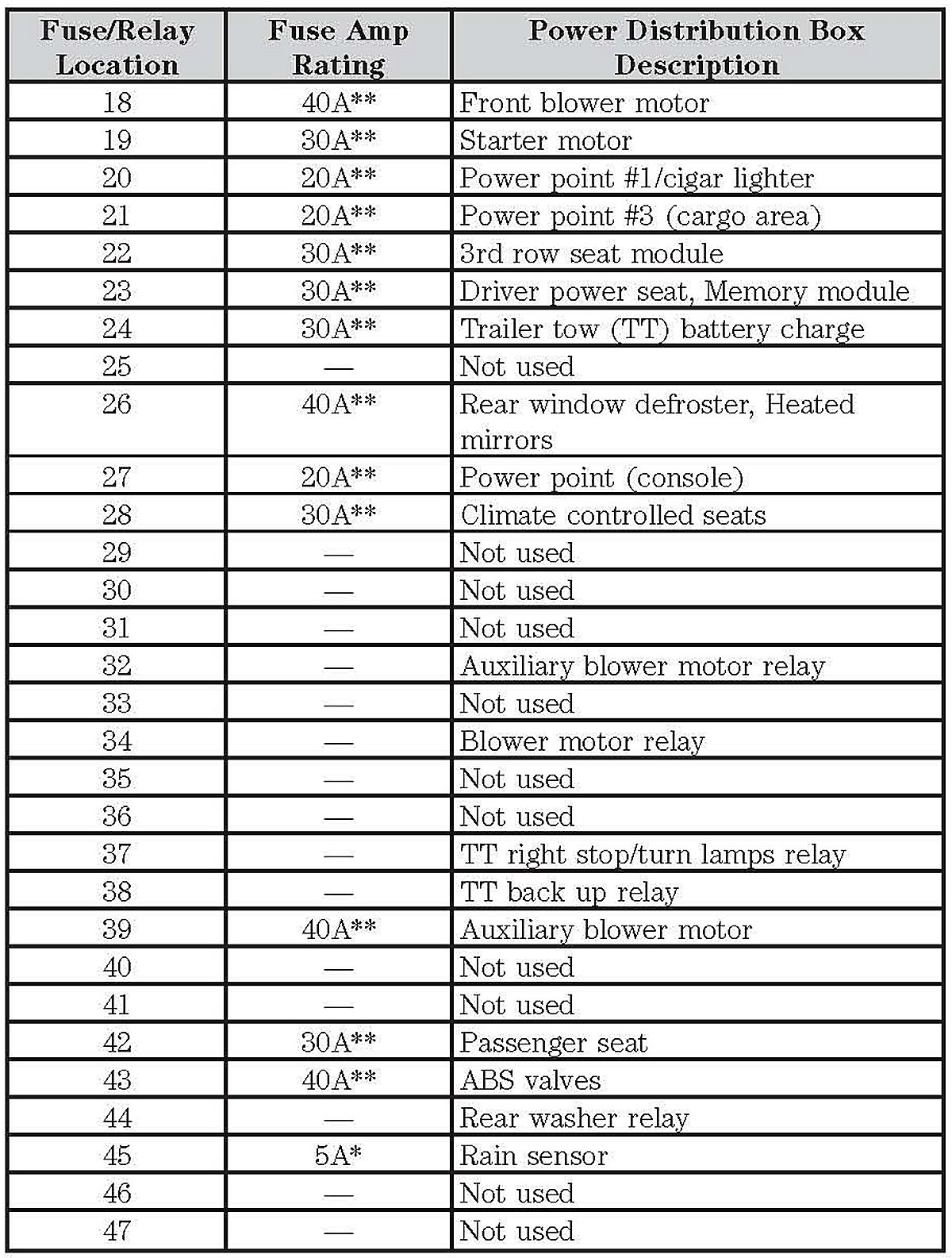

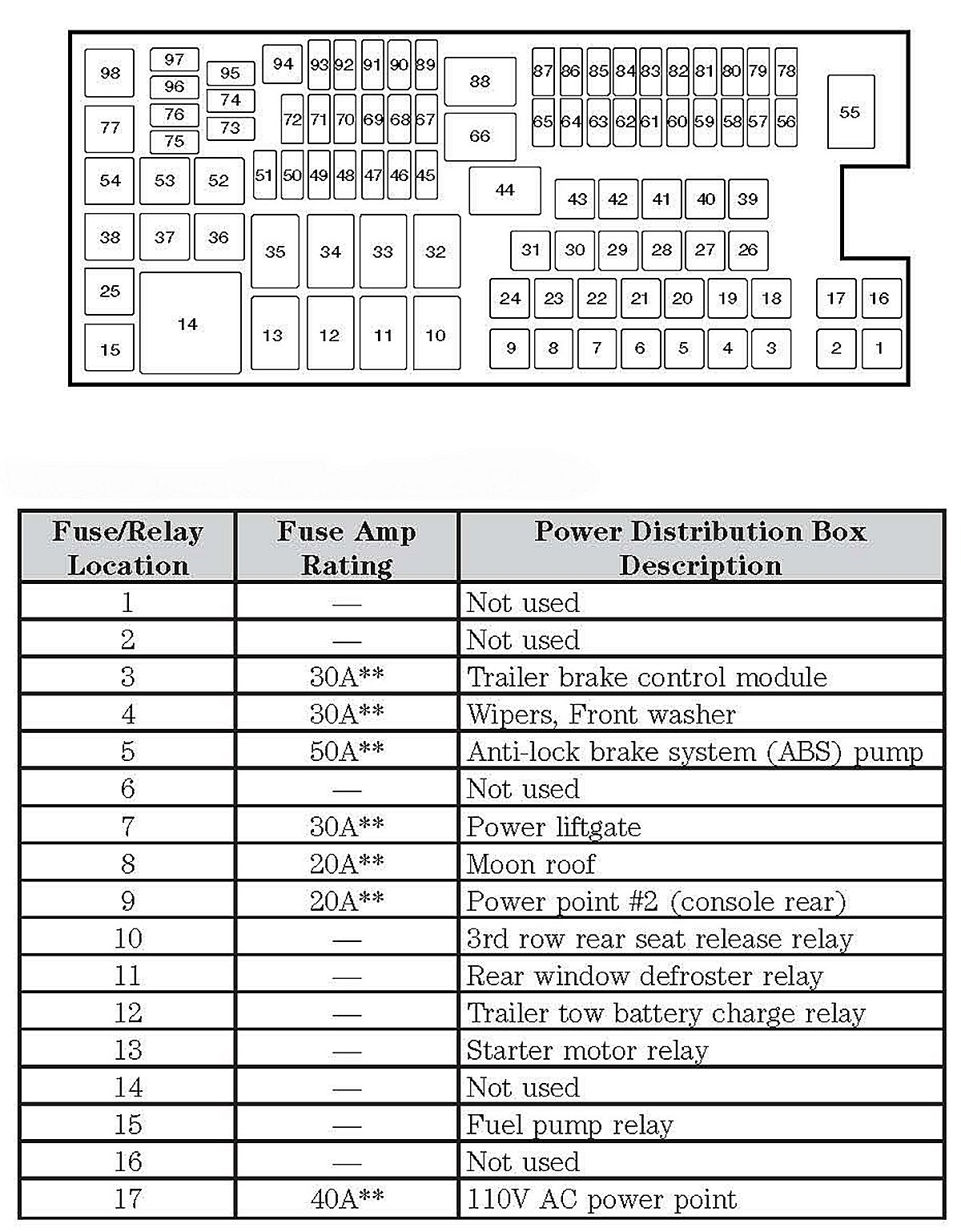

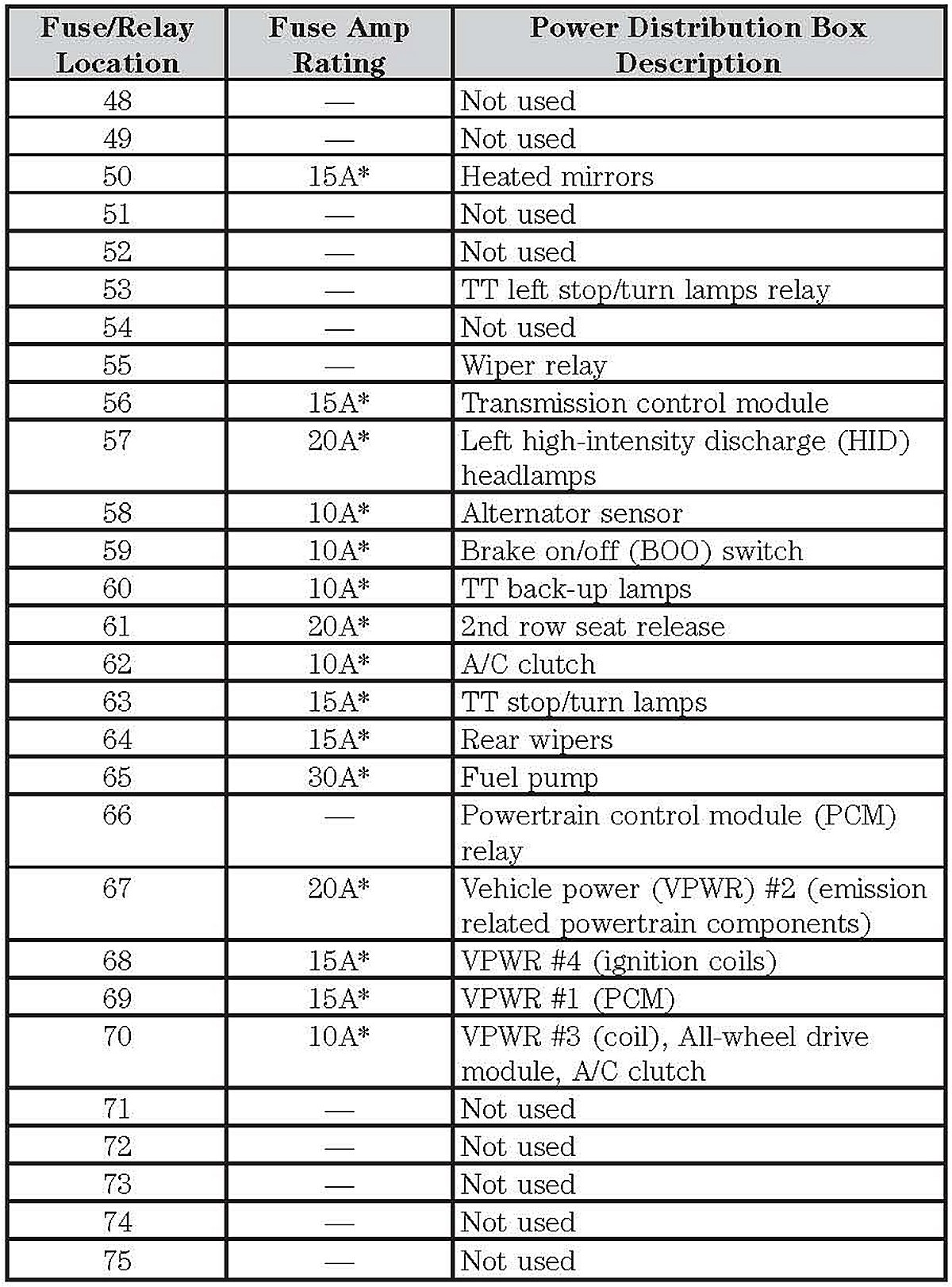

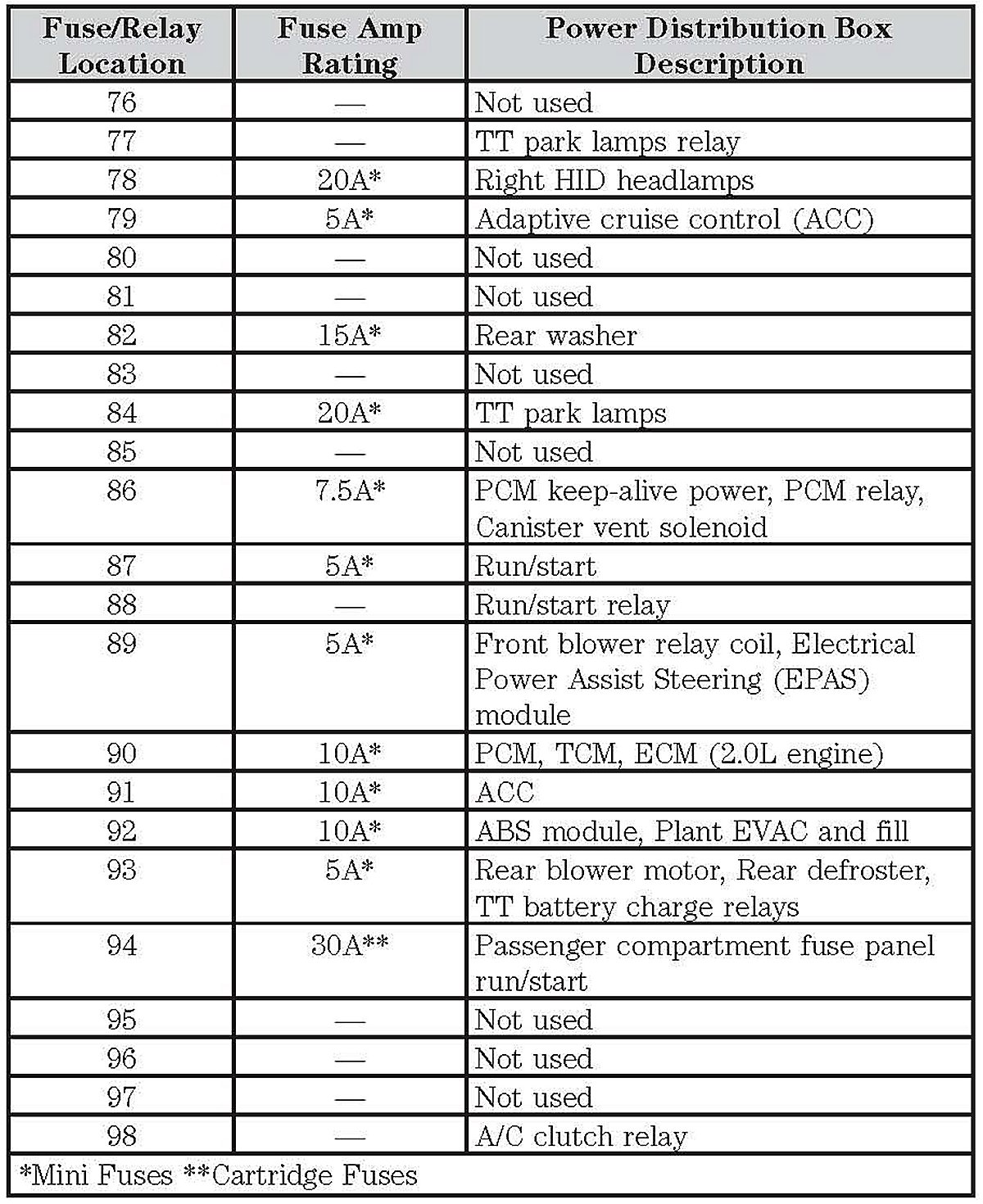

Power Distribution Box
The power distribution box is located in the engine compartment.
