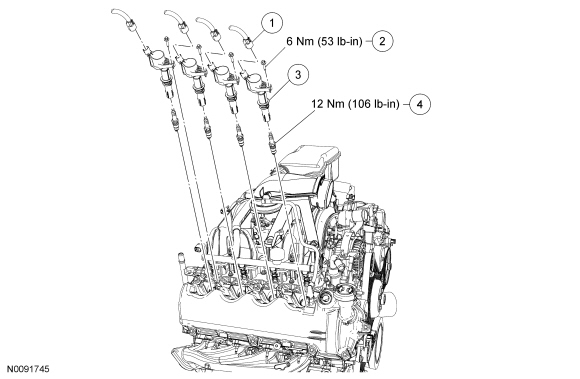

Engine Ignition Components - Exploded View

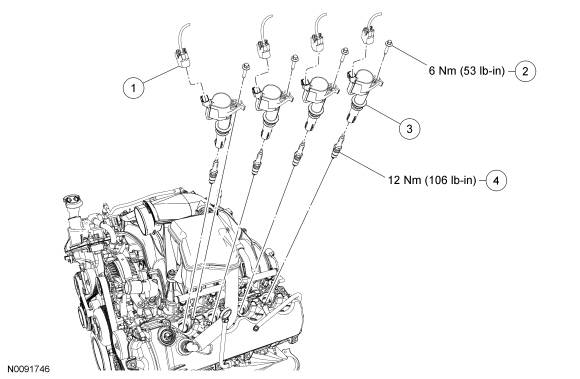

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

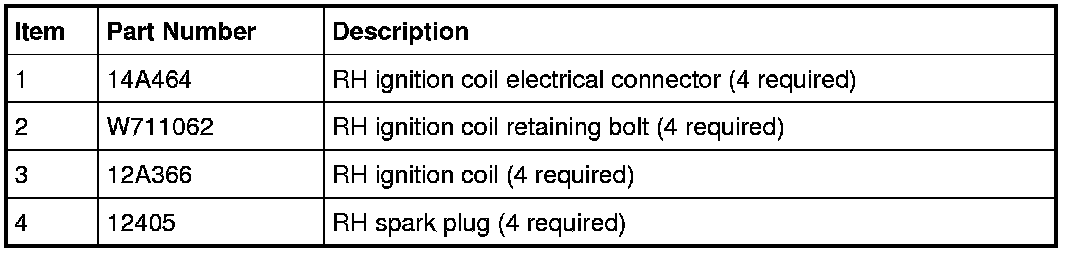

Engine Ignition - RH

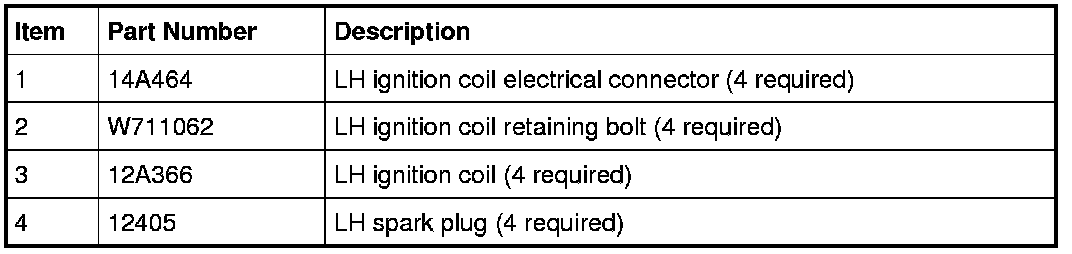

Engine Ignition - LH
