Ford
>>
2012
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

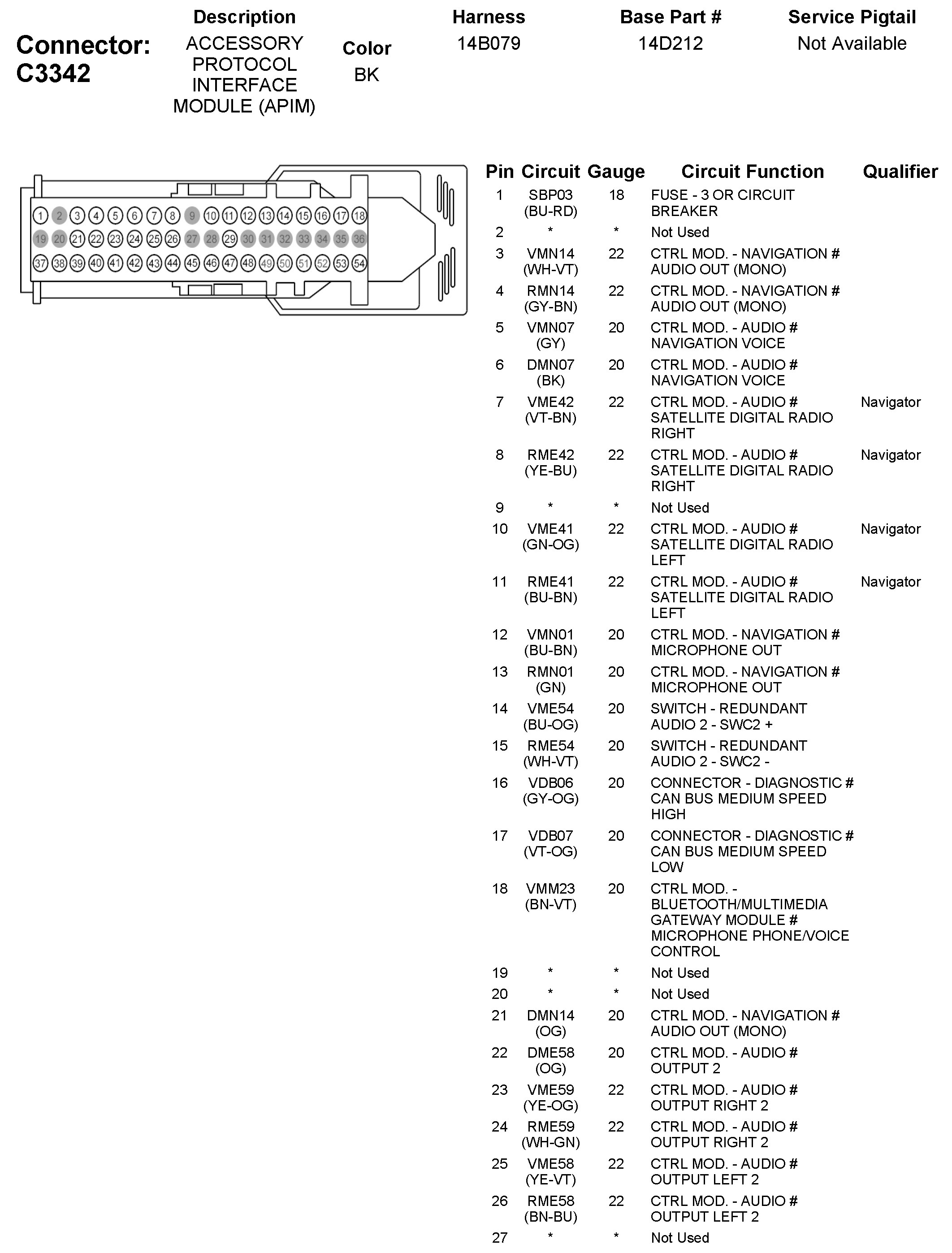

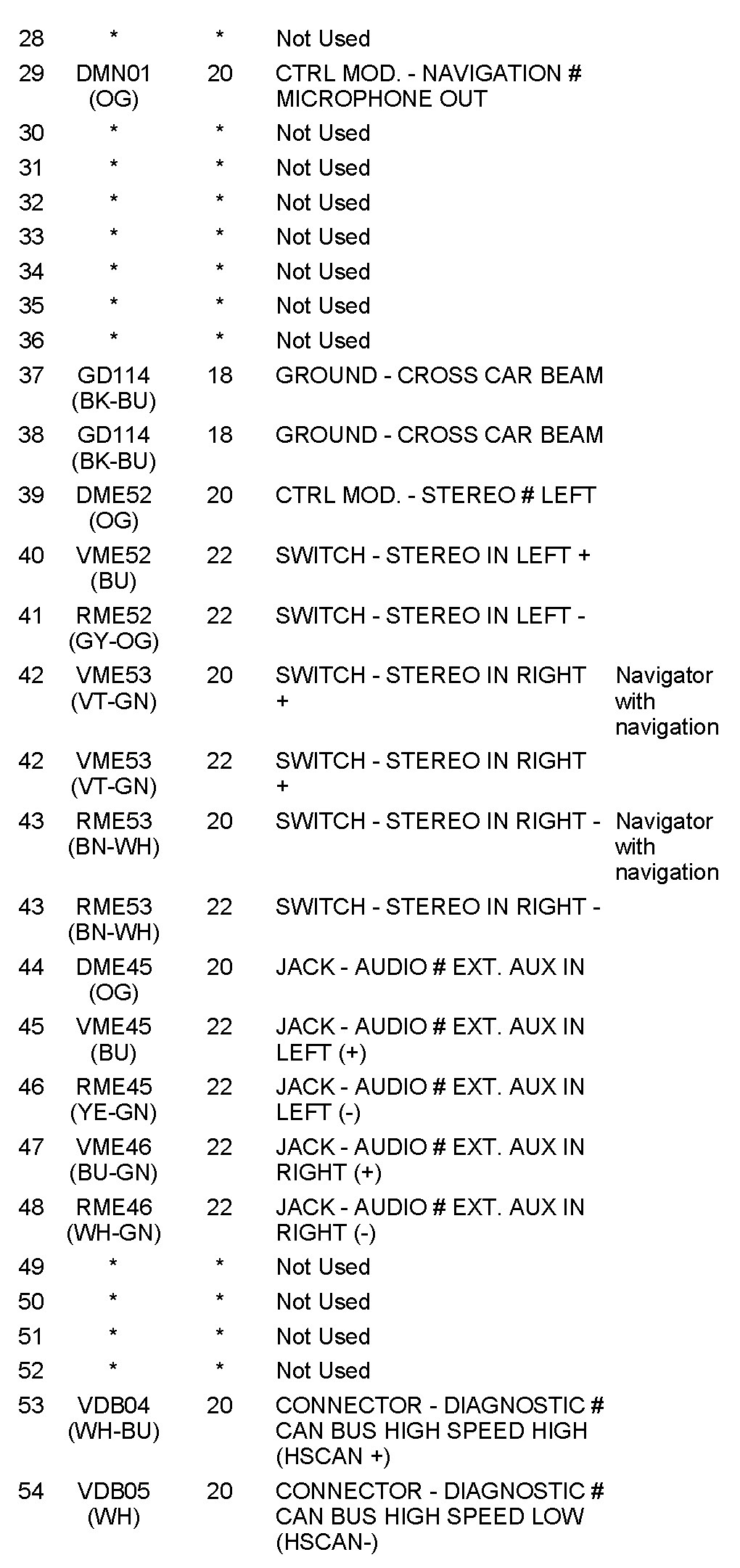

C3342 Accessory Protocol Interface Module (APIM)
C3342 Accessory Protocol Interface Module (APIM)
