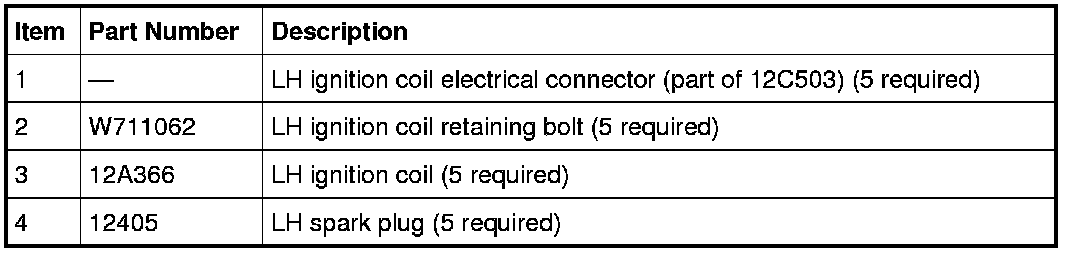

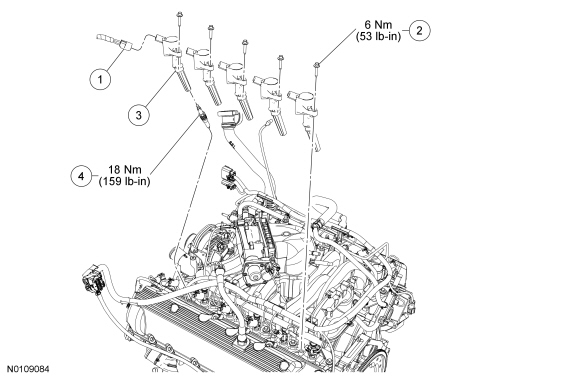

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
NOTE:
LH shown, RH similar.
