Climate Control Assembly

Climate Control Assembly

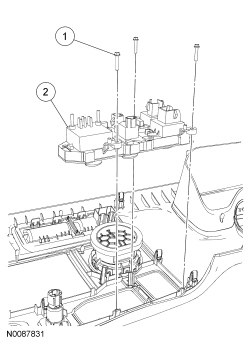

Removal and Installation

1. Remove the instrument cluster finish panel.

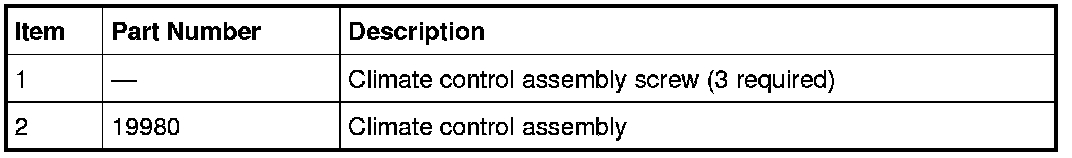

2. Remove the 3 climate control assembly screws.

3. Remove the climate control assembly.

4. To install, reverse the removal procedure.
