Home >> Ford >> 2012 >> E 150 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Oxygen Sensor

Oxygen Sensor

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

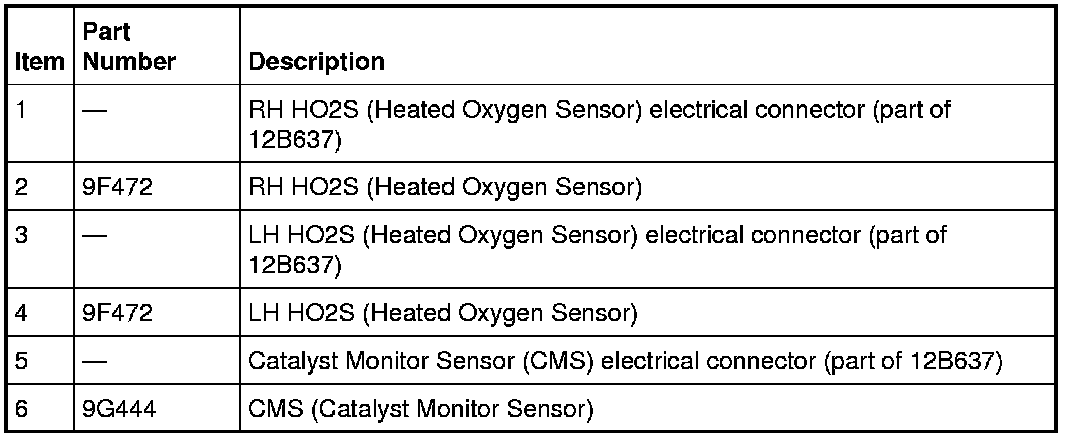

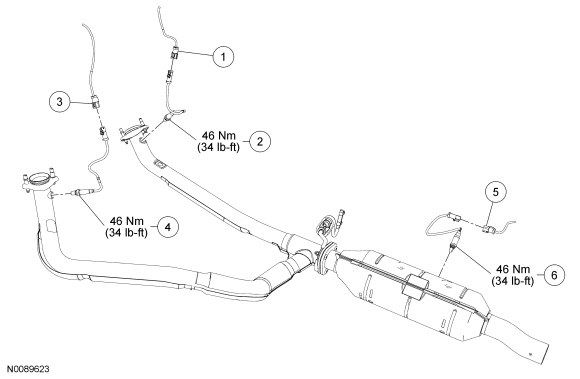

E-150, E-250 and E-350 Vehicles

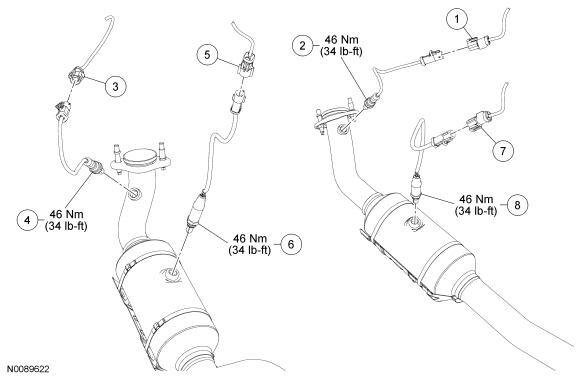

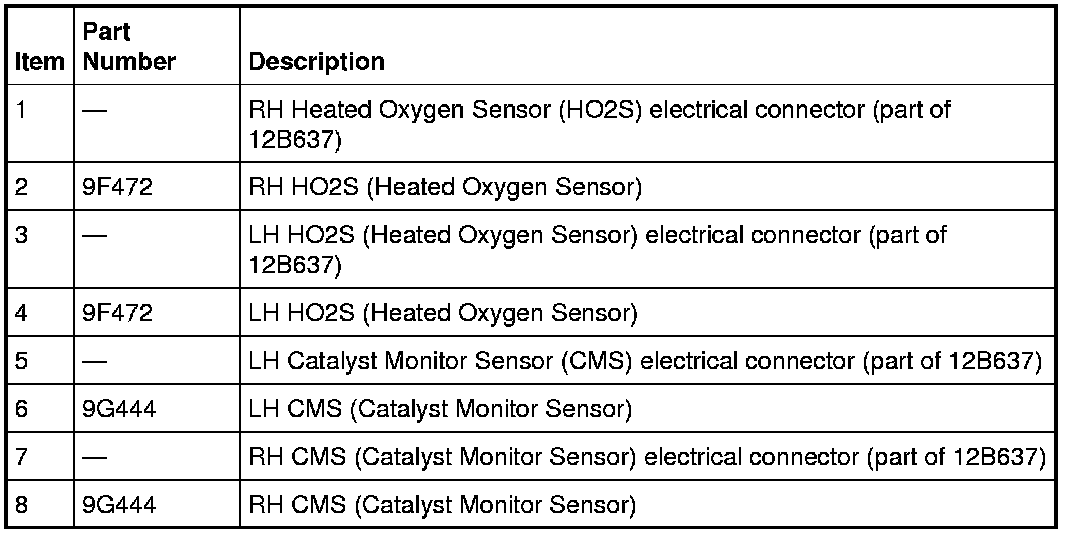

E-450 Vehicles
