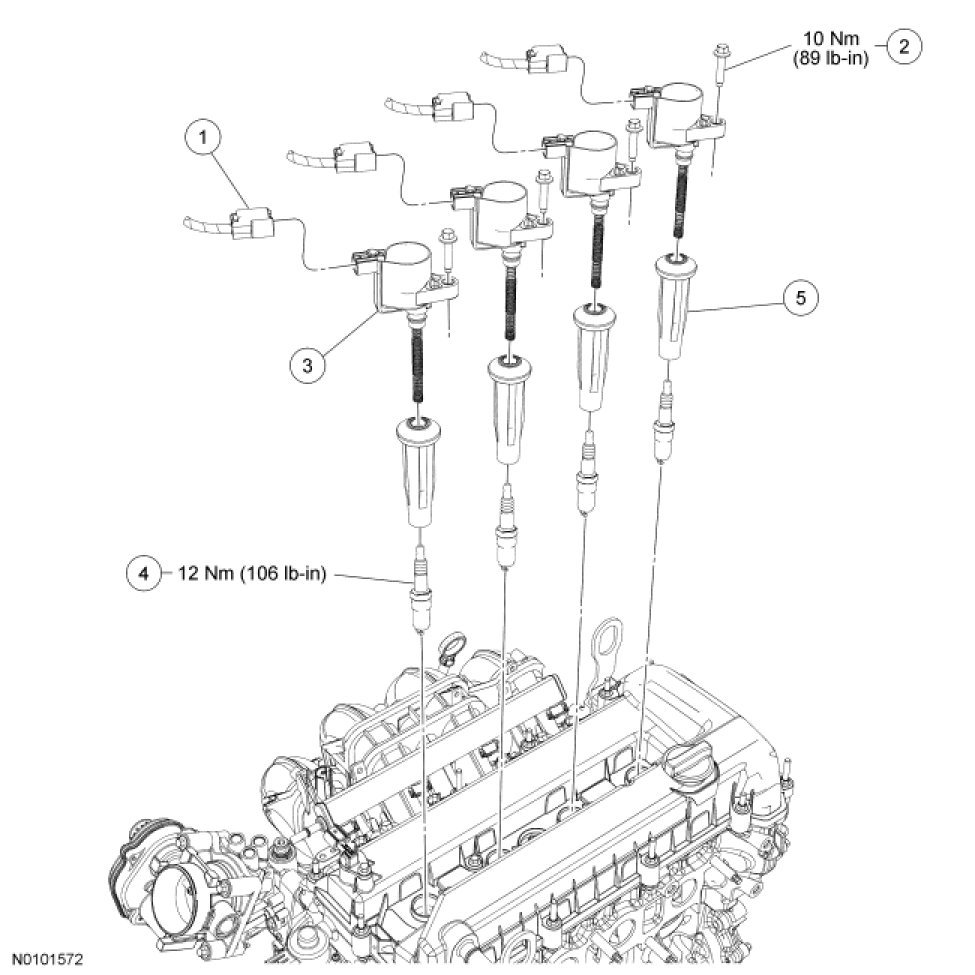

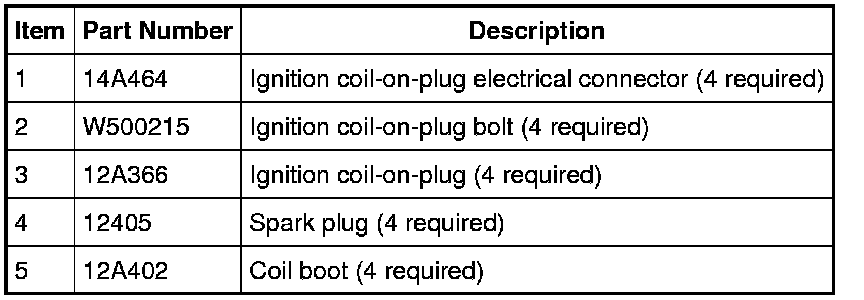

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
