Blower Motor Switch

Blower Motor Switch

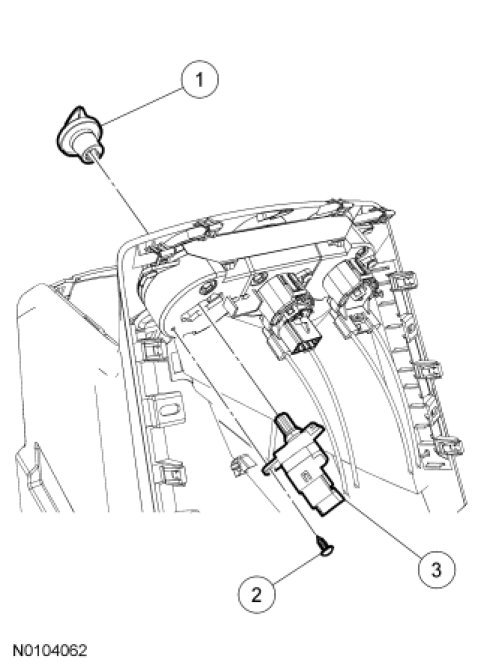

Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Console - Floor.

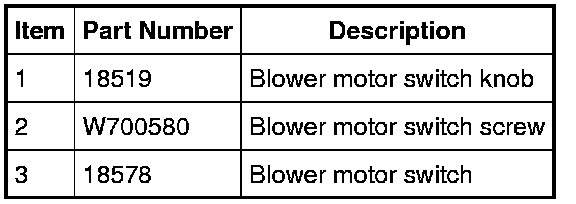

2. Remove the blower motor switch knob.

3. Remove the blower motor switch screw.

4. Rotate the blower motor switch to disengage it from the climate control assembly and remove the blower motor switch.

5. To install, reverse the removal procedure.
