Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

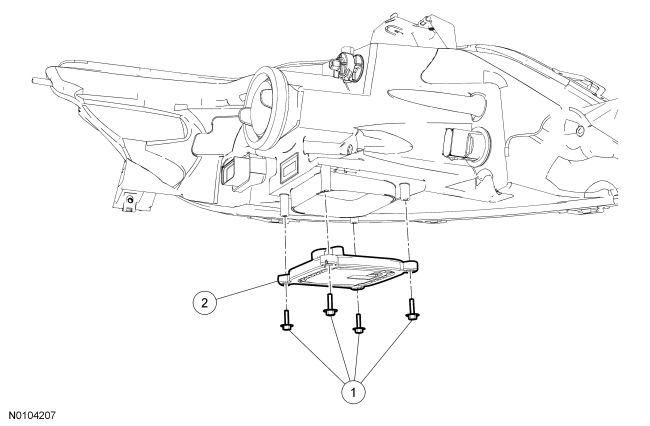

2. Remove the 4 screws and the ballast.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
