Power Window Switch: Service and Repair

Window Control Switch

Removal and Installation

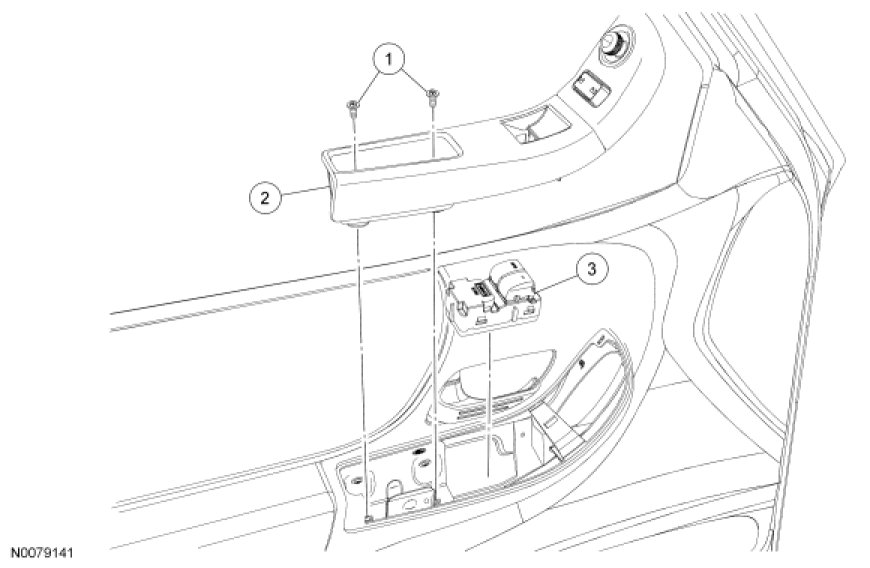

NOTE: Driver side shown, all others similar.

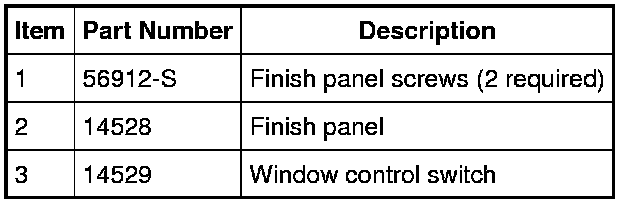

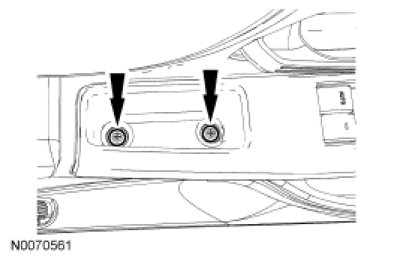

1. Remove the door trim panel finish panel screws.





2. Remove the door trim panel finish panel.

3. Disconnect the electrical connectors.

4. Remove the window control switch from the finish panel.

5. To install, reverse the removal procedure.
