Flywheel

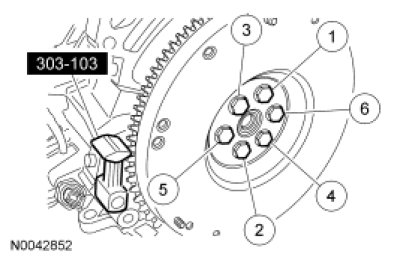

Using the Flywheel Locking Tool, install the 6 bolts in the sequence shown, in 3 stages
Stage 1: Tighten to 50 Nm (37 lb-ft).
Stage 2: Tighten to 80 Nm (59 lb-ft).
Stage 3: Tighten to 112 Nm (83 lb-ft).
