System Specifications

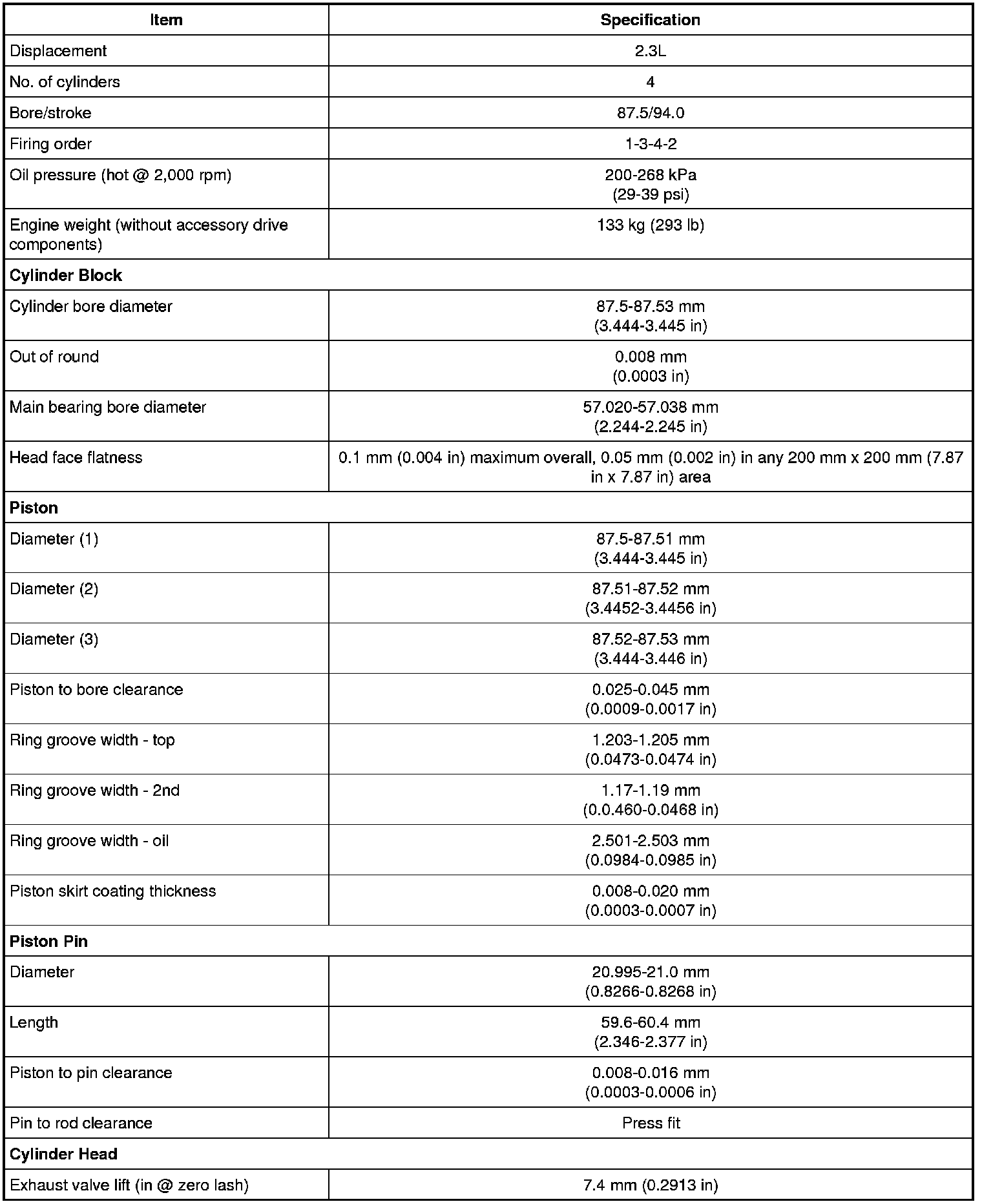

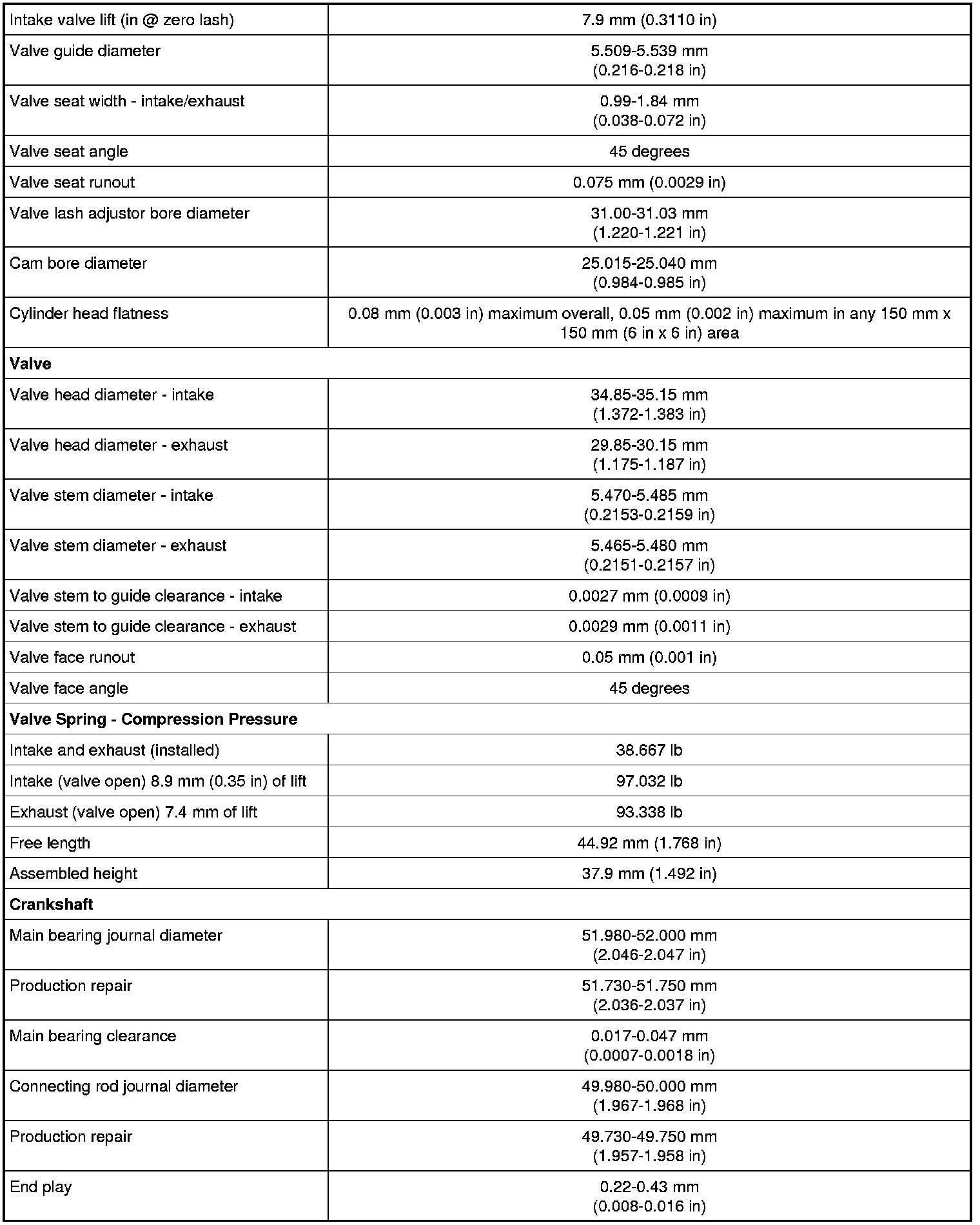

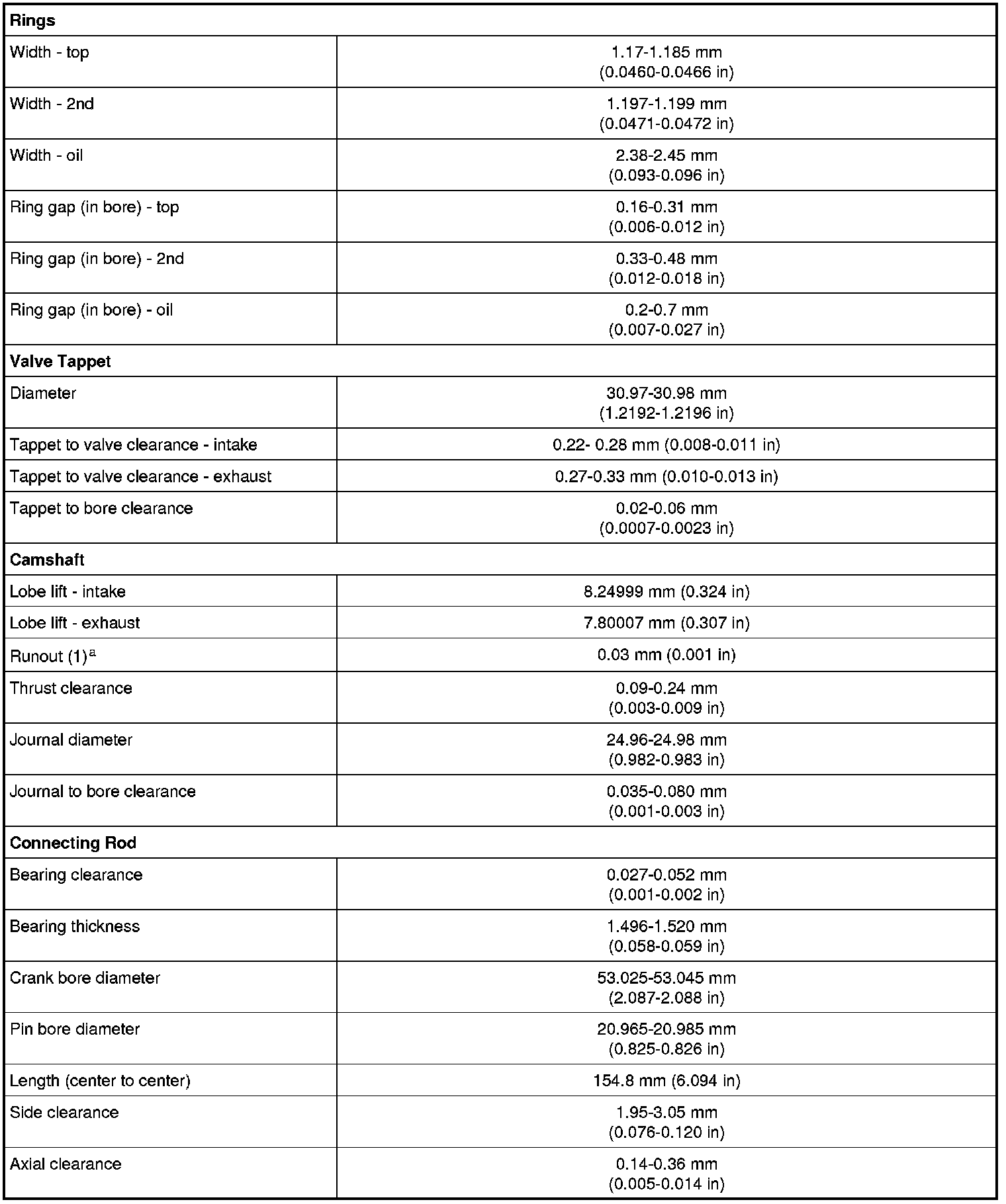

General Specifications













a No. 3 Journal - Supported by No. 1 and No. 5 Journals.
All dimensions are in mm unless noted.

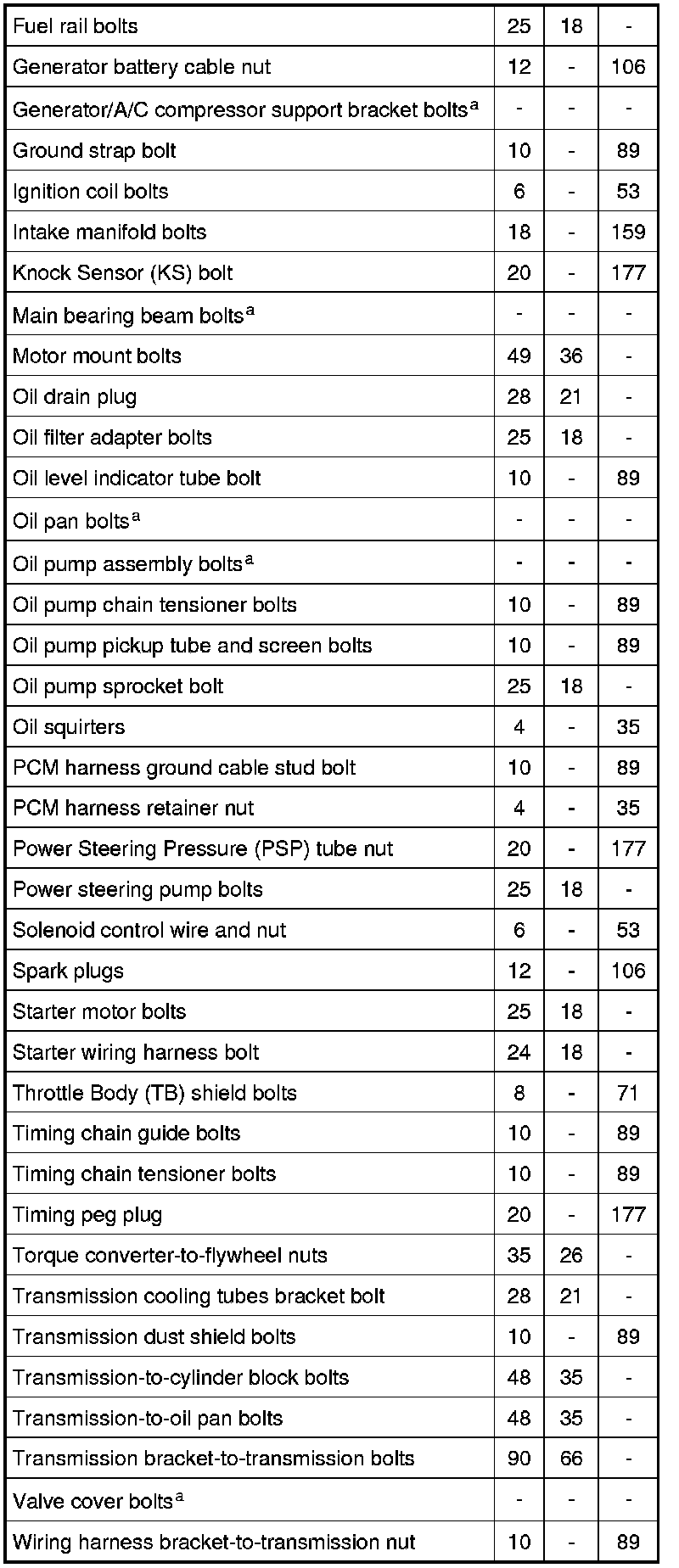

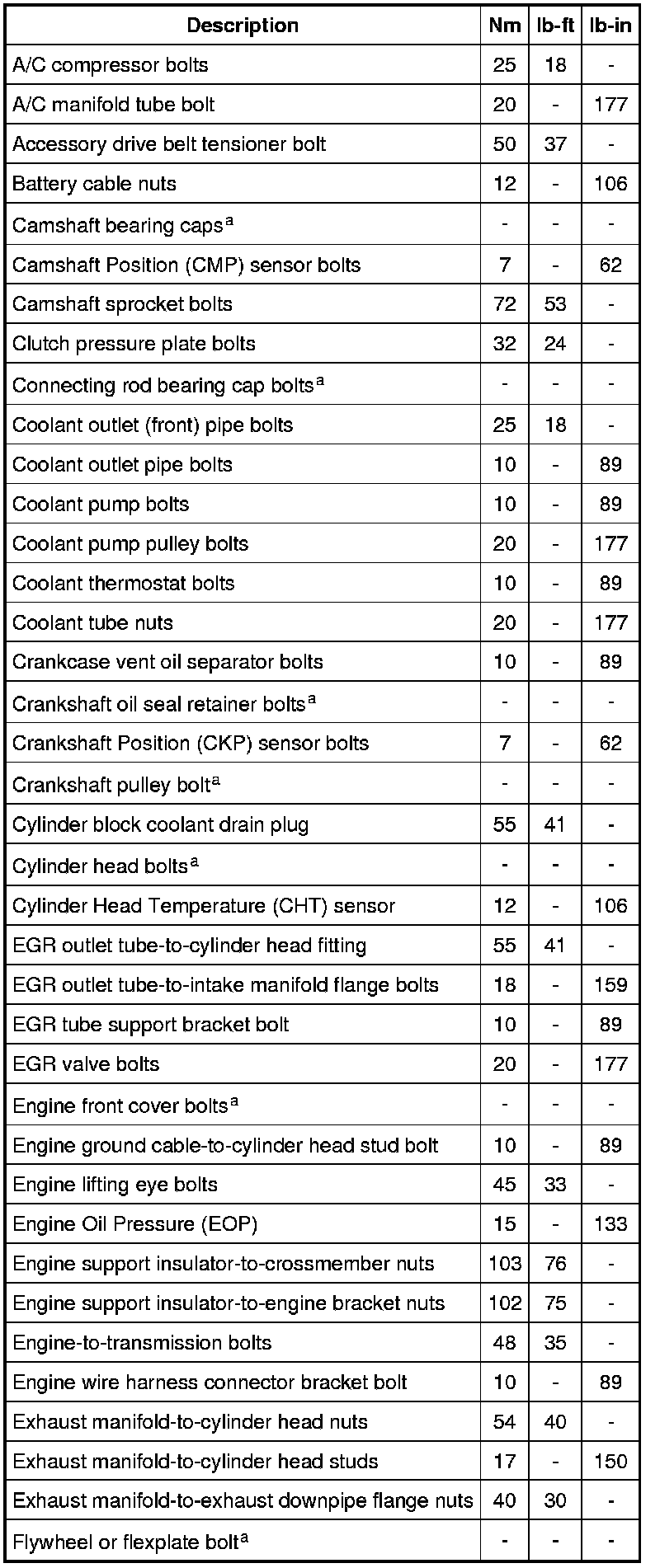

Torque Specifications









a Refer to the procedure.
