Climate Control Assembly

Climate Control Assembly









Removal and Installation

1. Remove the audio unit. For additional information, refer to Information and Entertainment Systems Audio Unit.

2. Remove the 2 screws and the instrument panel center finish panel.
- Disconnect the electrical connector.

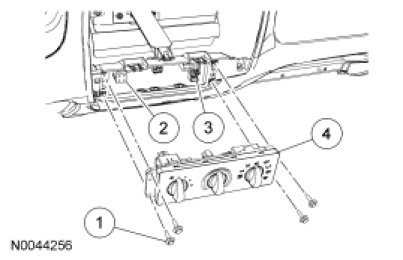

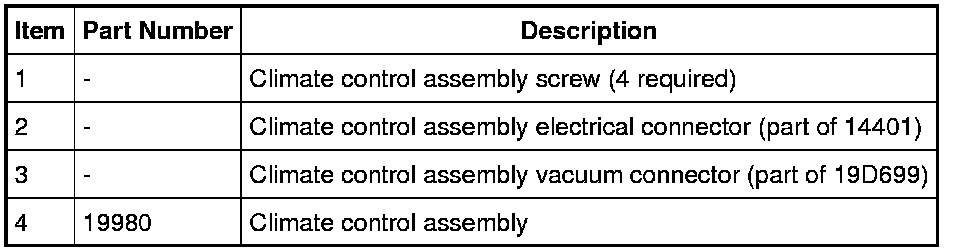

3. Remove the 4 climate control assembly screws.

4. Disconnect the climate control assembly electrical connectors and vacuum connector.

5. Remove the climate control assembly.

6. To install, reverse the removal procedure.
