Exhaust System

Exhaust System - Exploded View

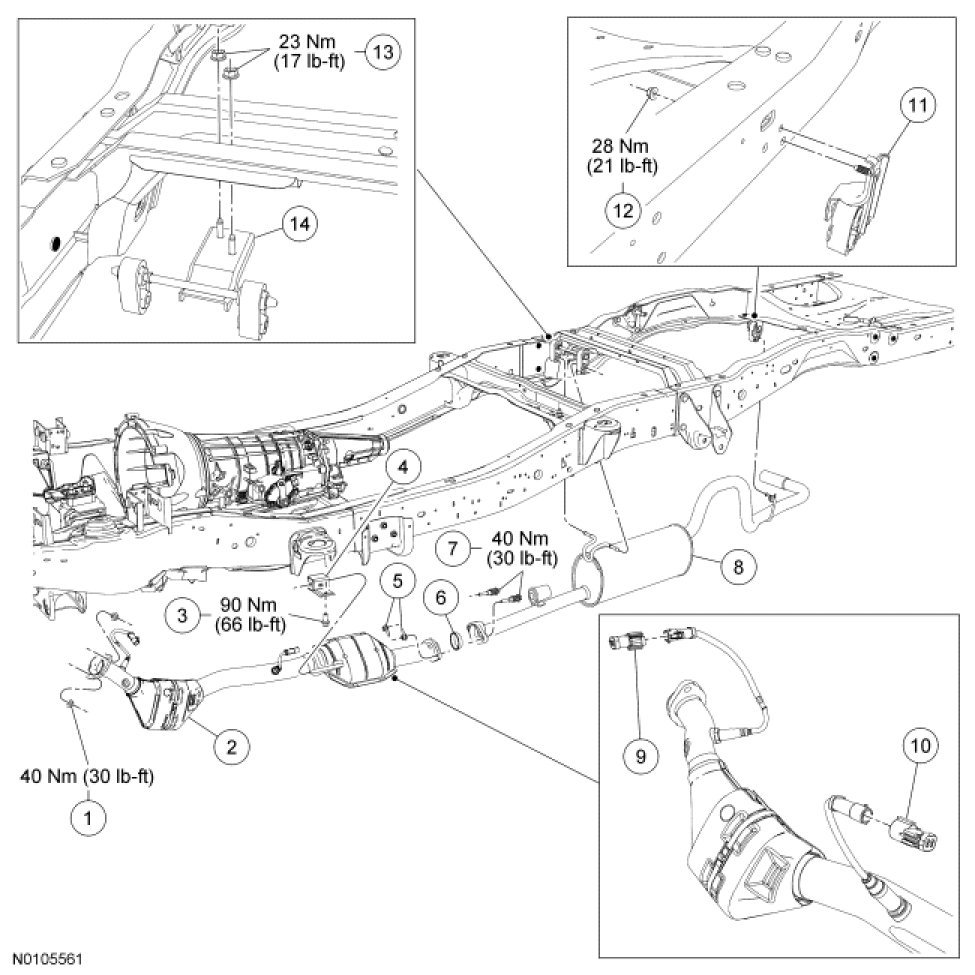

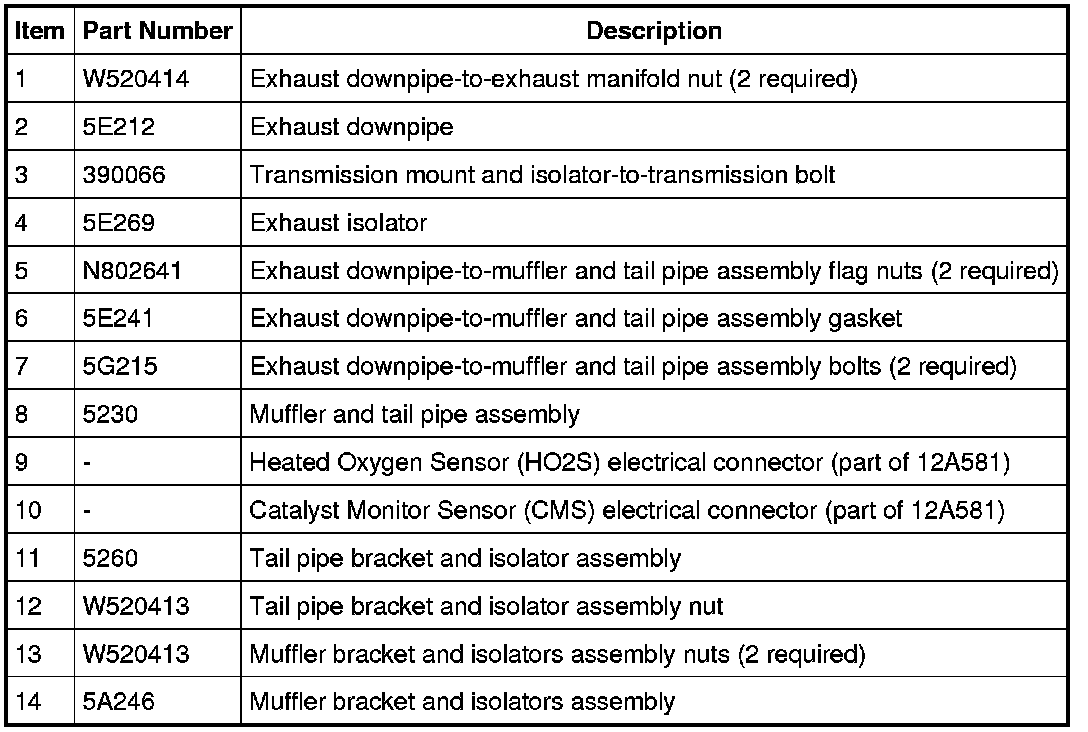

Vehicles with 2.3L

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed from art for clarity.

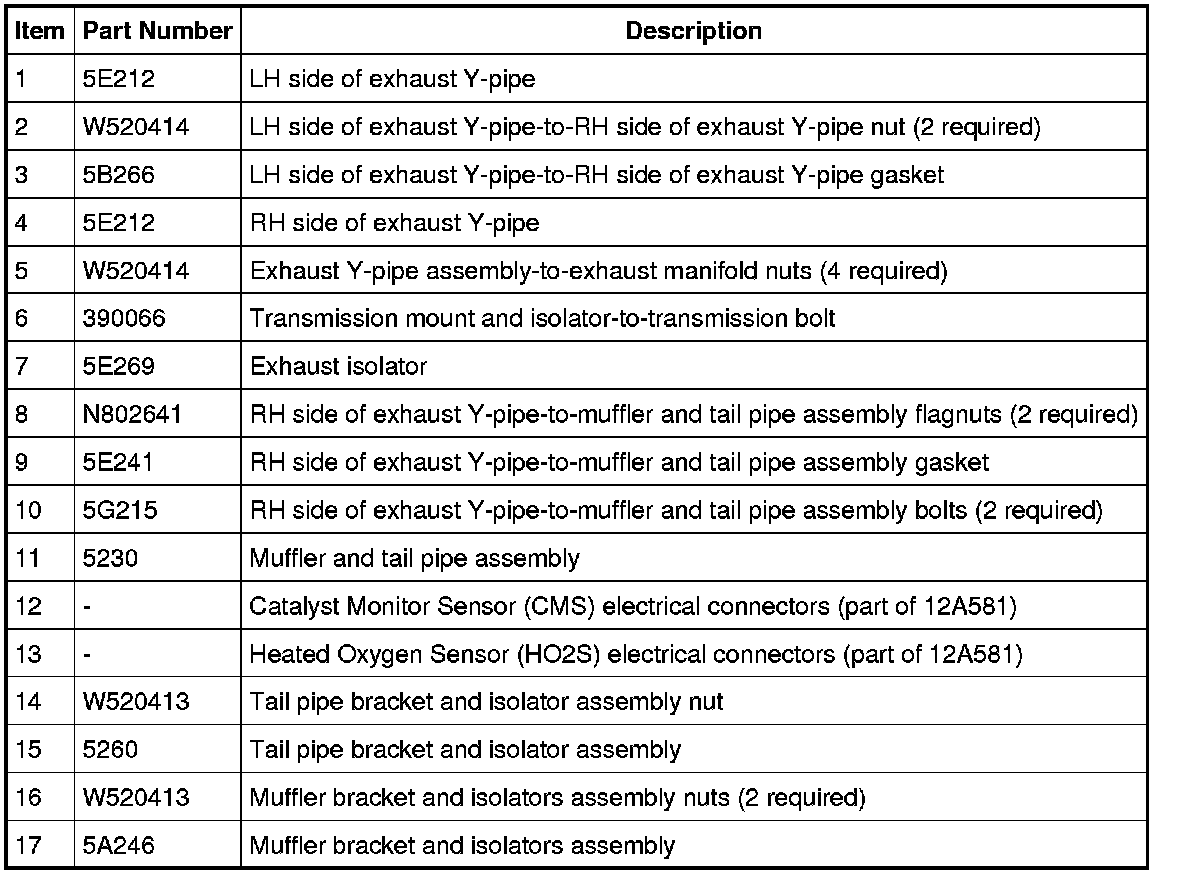

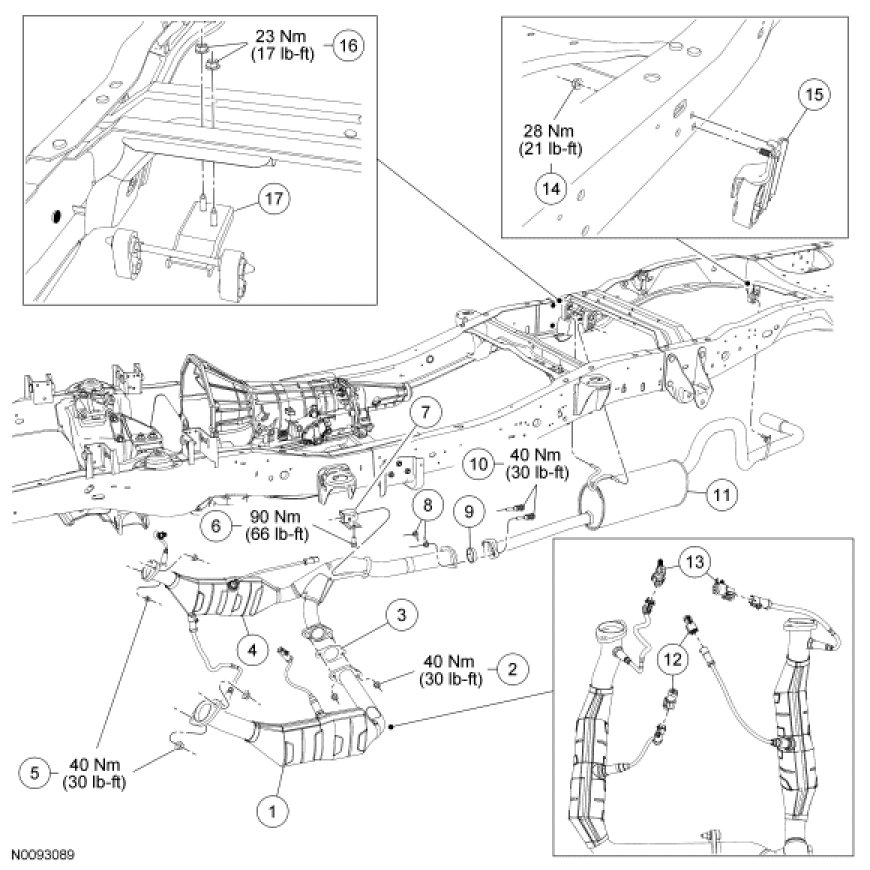

Vehicles with 4.0L

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed from art for clarity.
