Ford
>>
2011
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

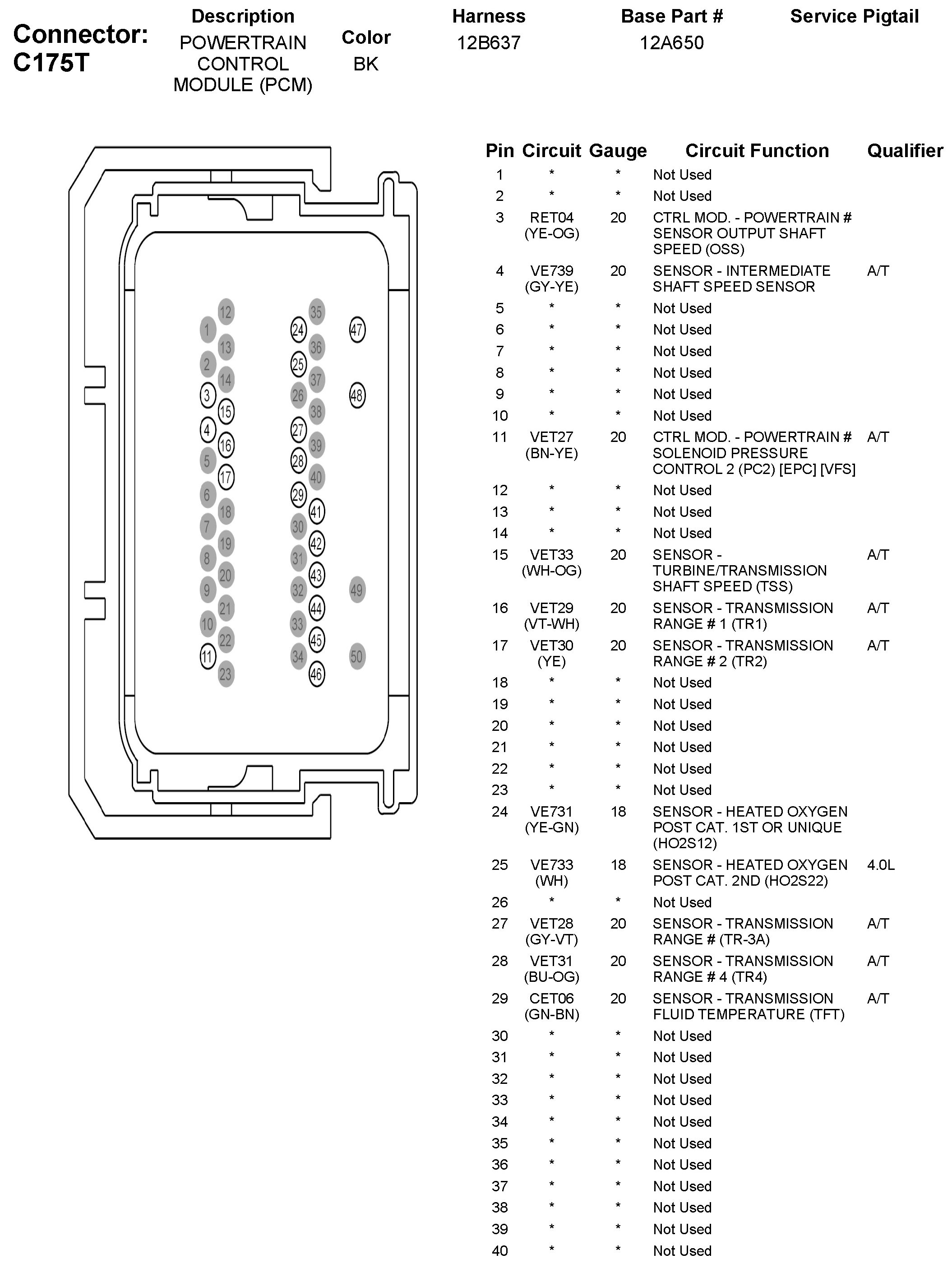

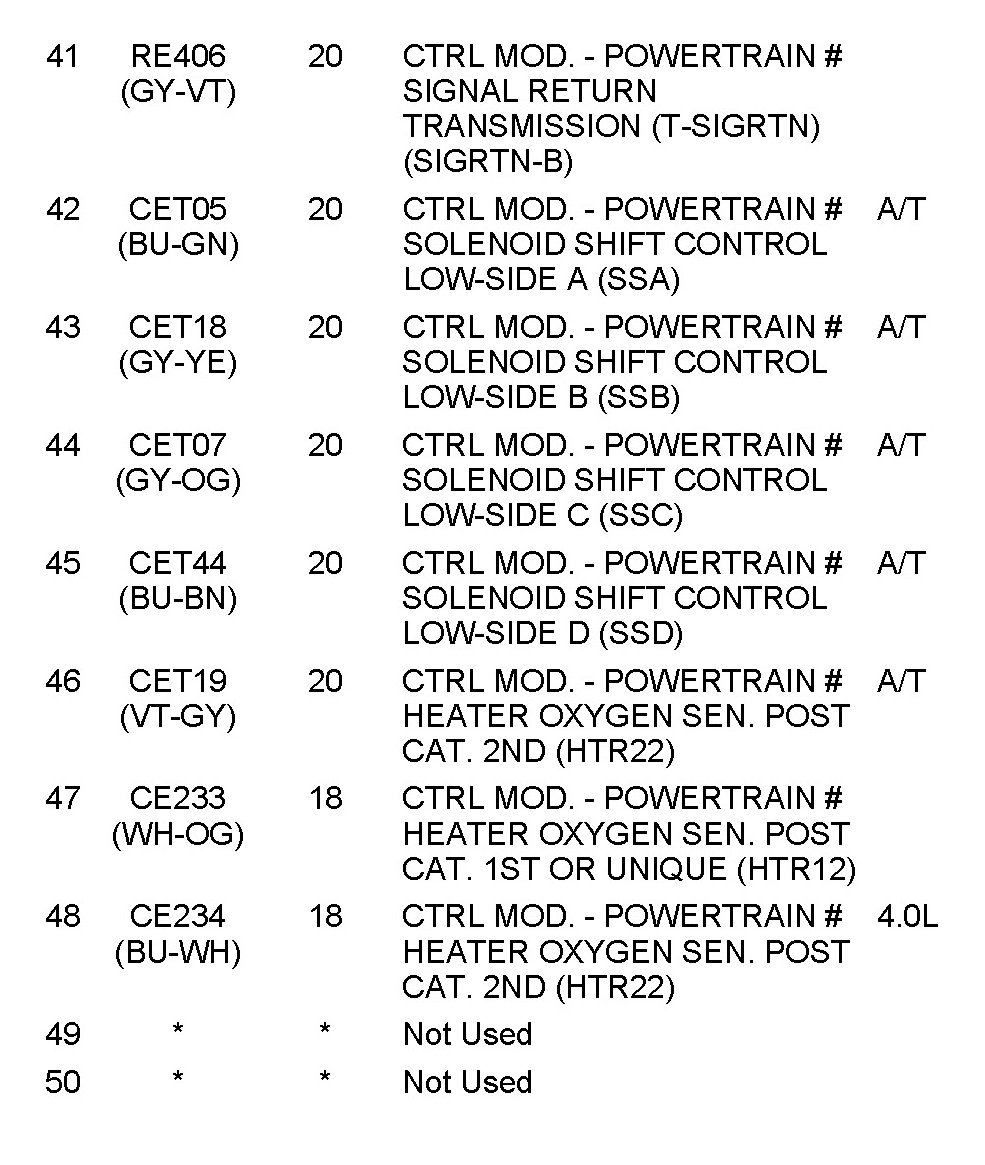

C175T Powertrain Control Module (PCM)
C175T Powertrain Control Module (PCM)
