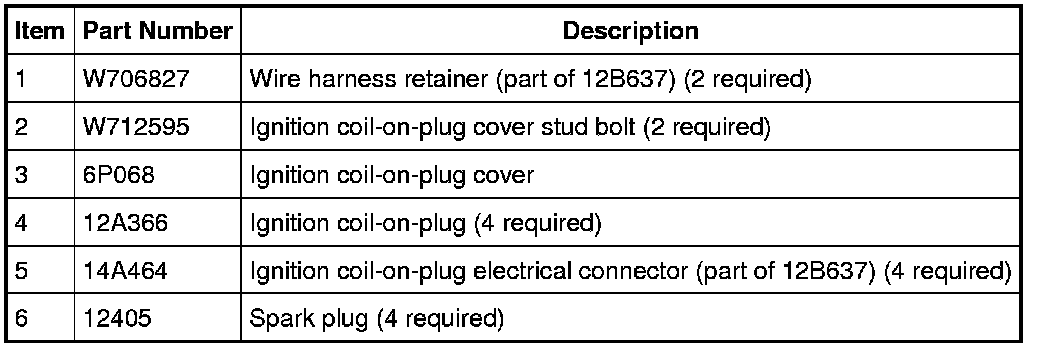

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

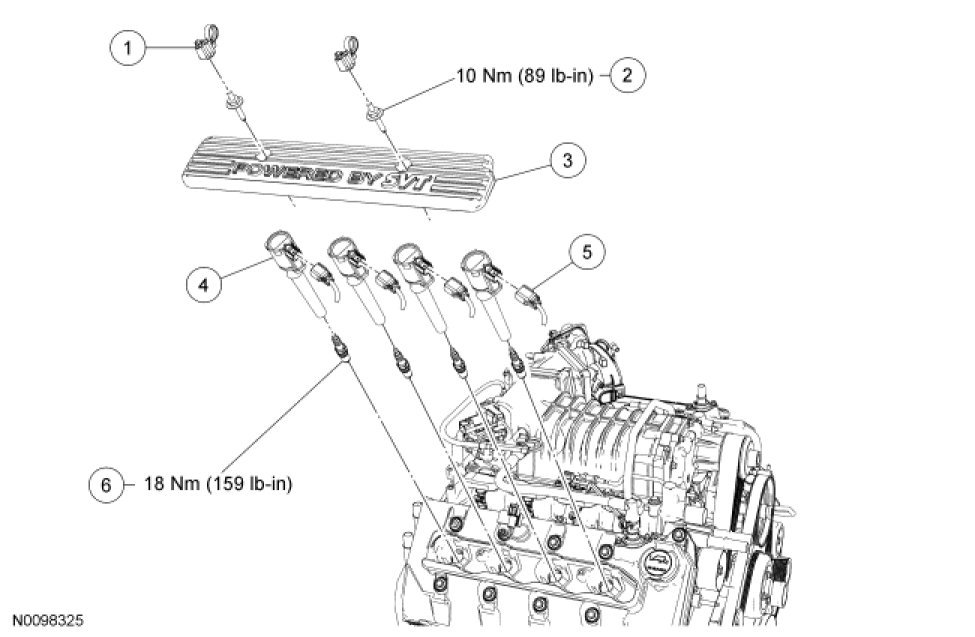

LH Ignition Components

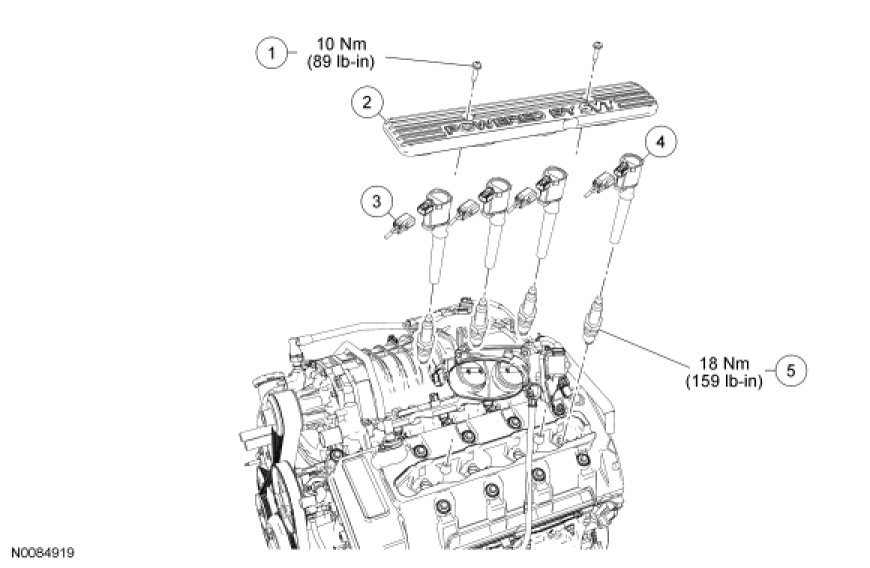

RH Ignition Components
