Clutch Switch: Service and Repair

Clutch Pedal Position (CPP) Switch









Removal and Installation

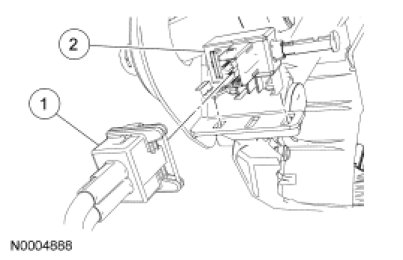

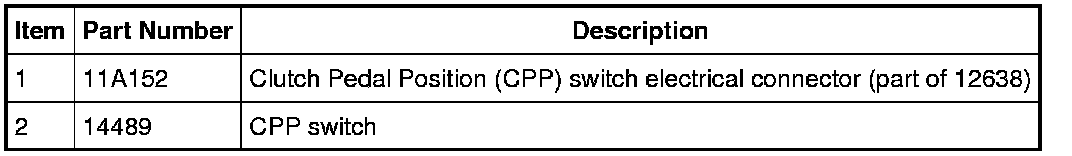

1. Disconnect the Clutch Pedal Position (CPP) switch electrical connector.

2. Release the CPP switch from the clutch pedal bracket.

3. To install, reverse the removal procedure.
