Ford
>>
2011
>>
Flex FWD V6-3.5L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Exploded Views
Exploded Views
Wiper and Washer System - Exploded View

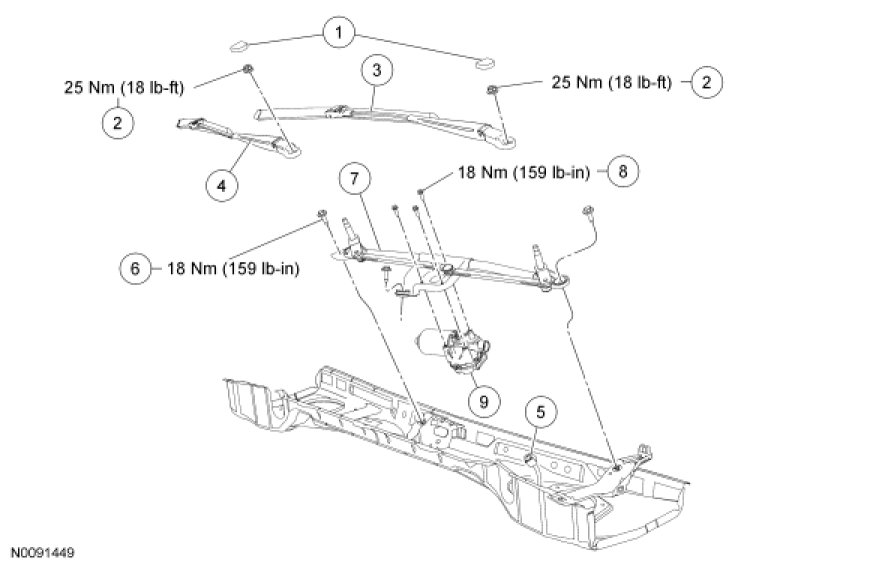

Front Wipers

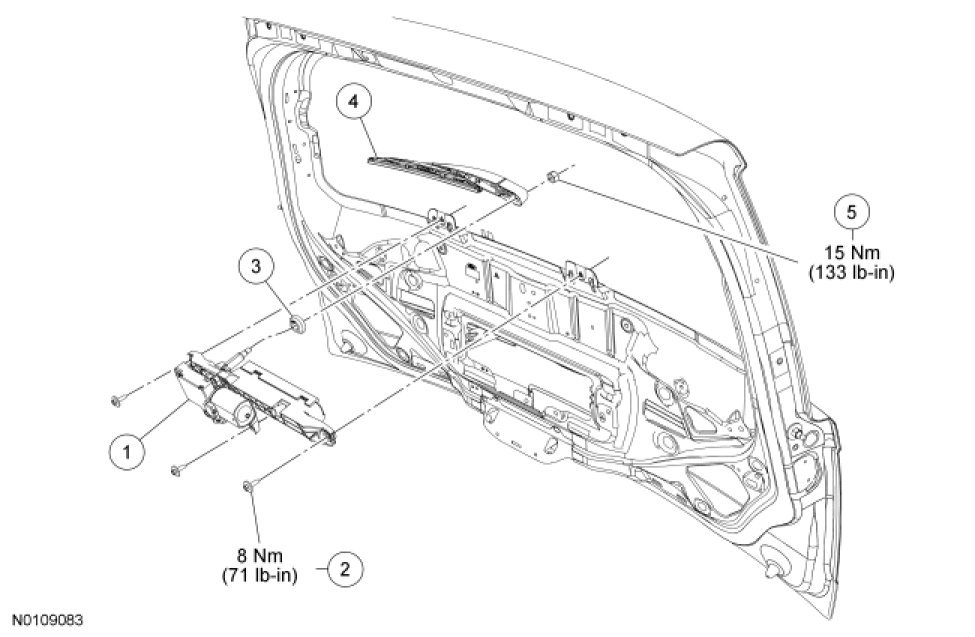

Rear Wiper

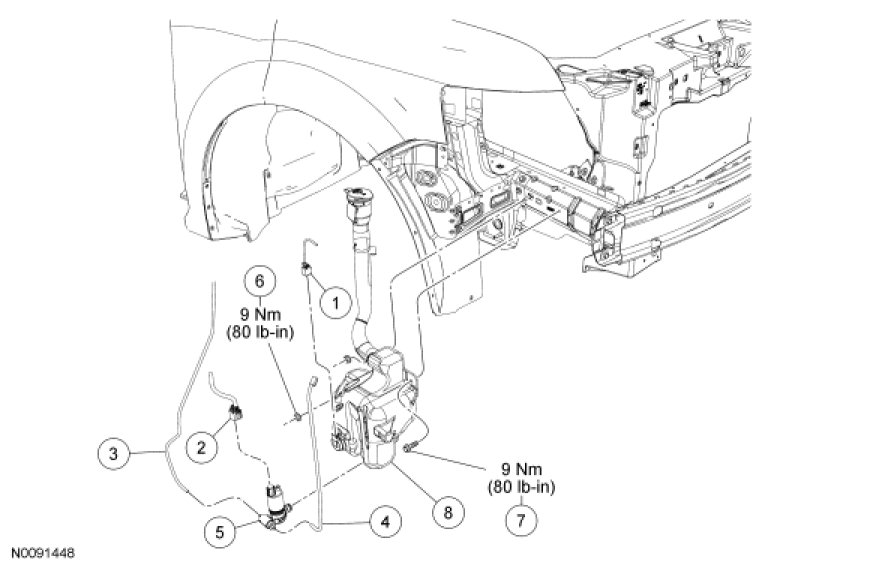

Washer Pump and Reservoir
