Alignment: Specifications

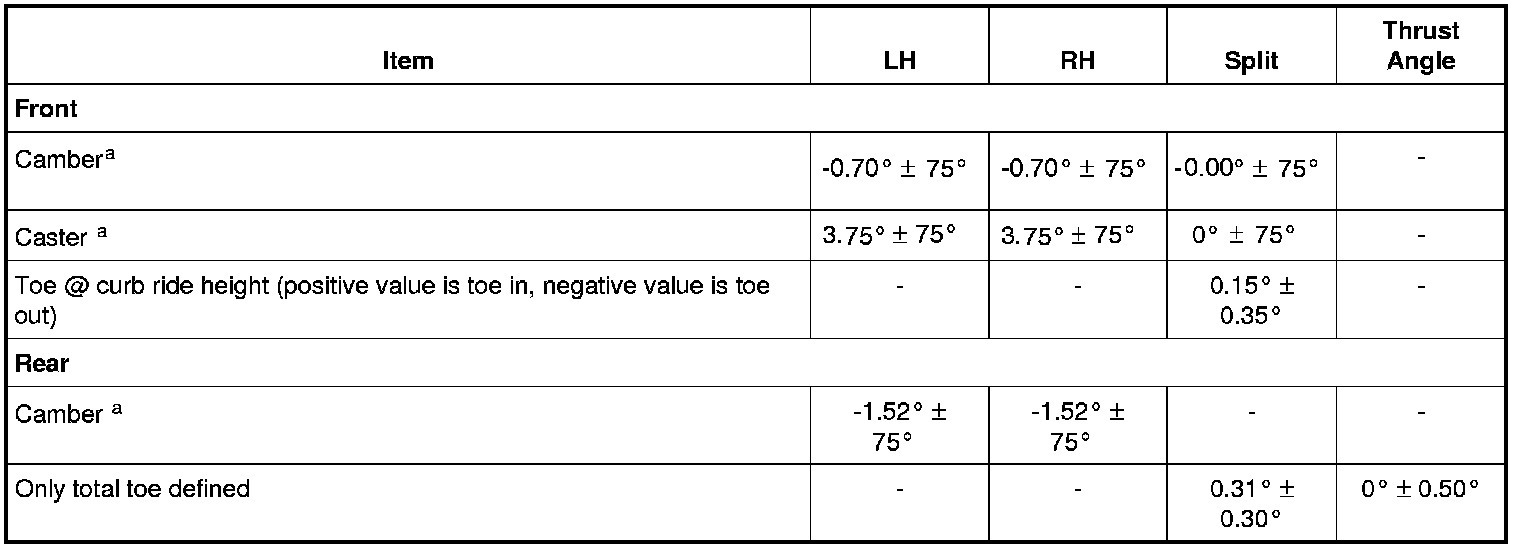

Alignment Specifications

NOTE: All alignment specifications are with the vehicle fuel tank full.





a Nominal setting (reference only) no adjustment

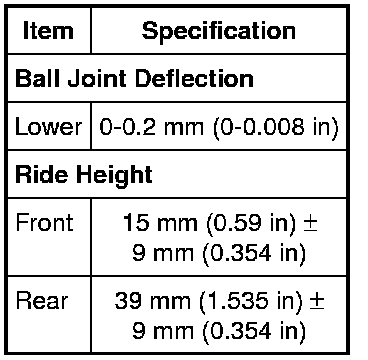

General Specifications

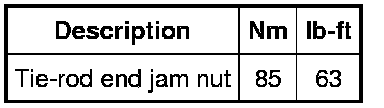

Torque Specifications
