Home >> Ford >> 2011 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

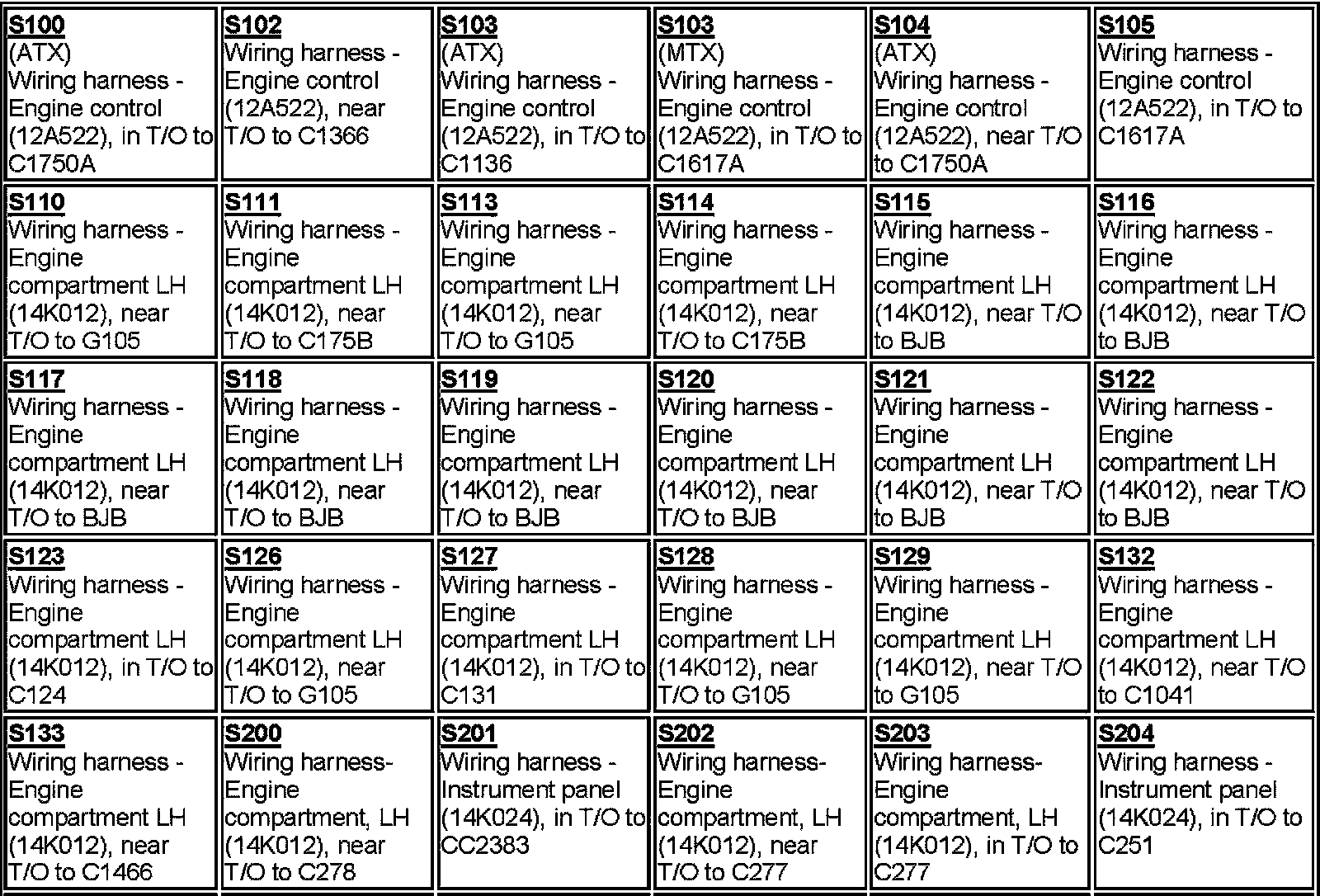

S100-S204:

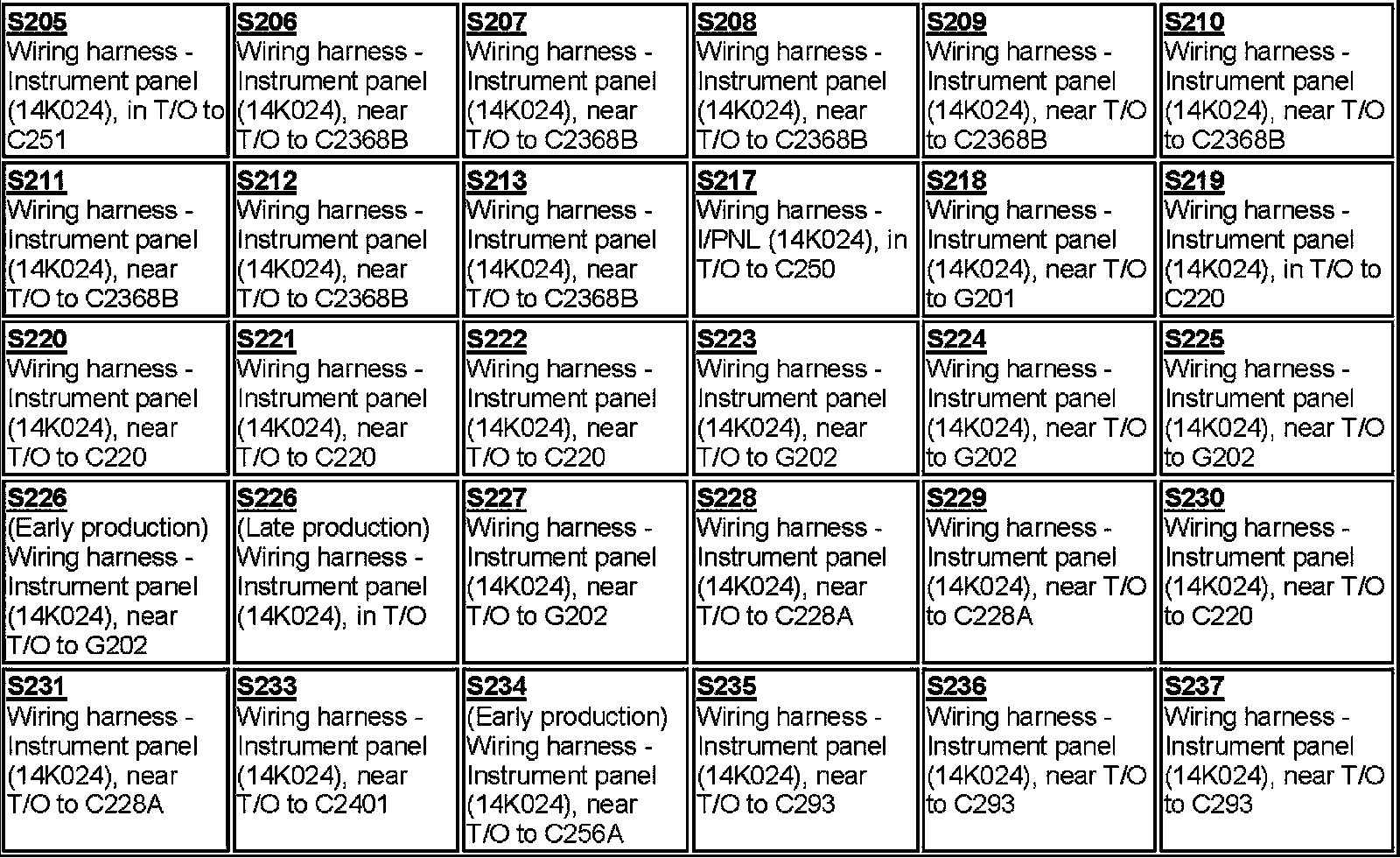

S205-S237:

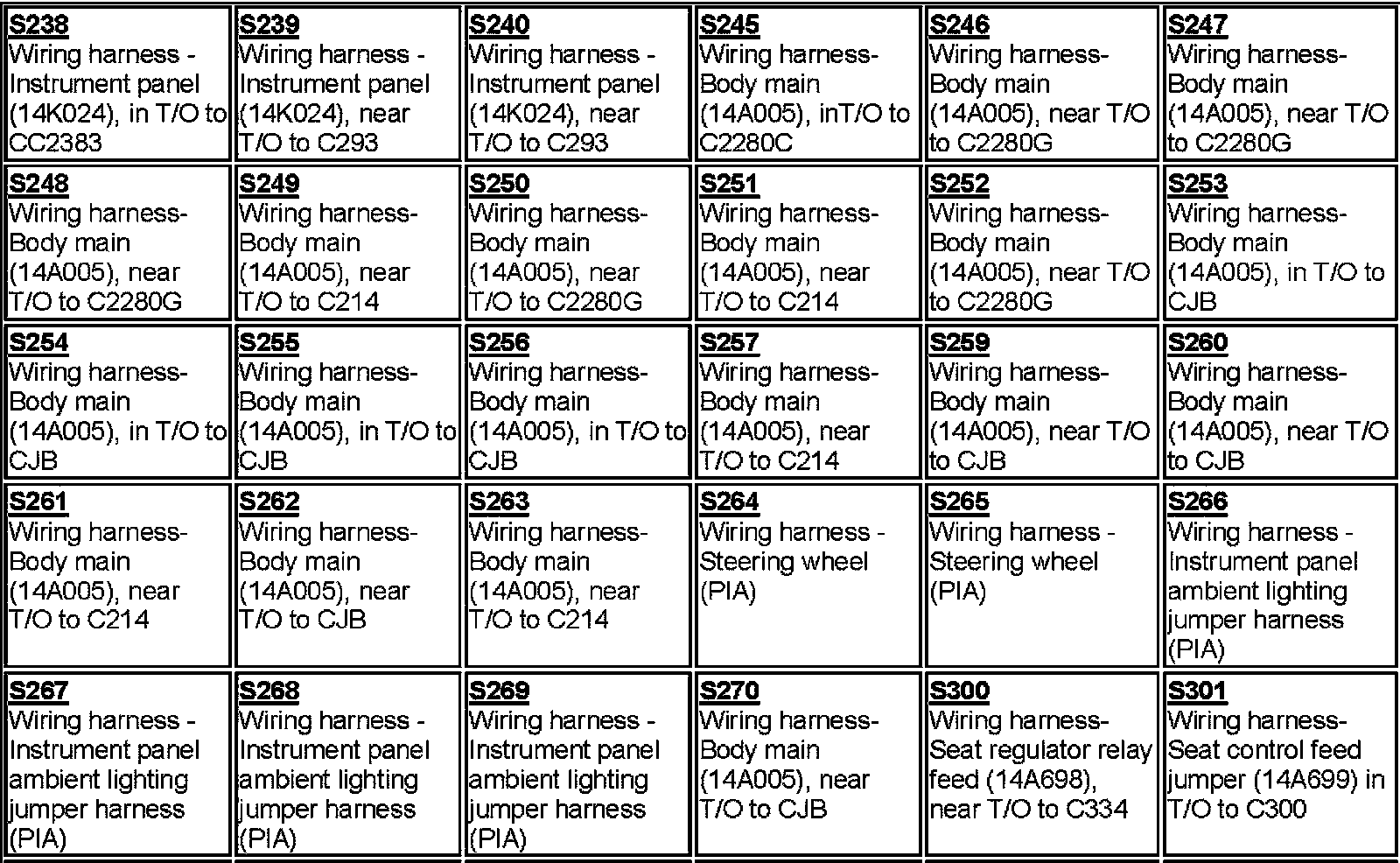

S238-S301:

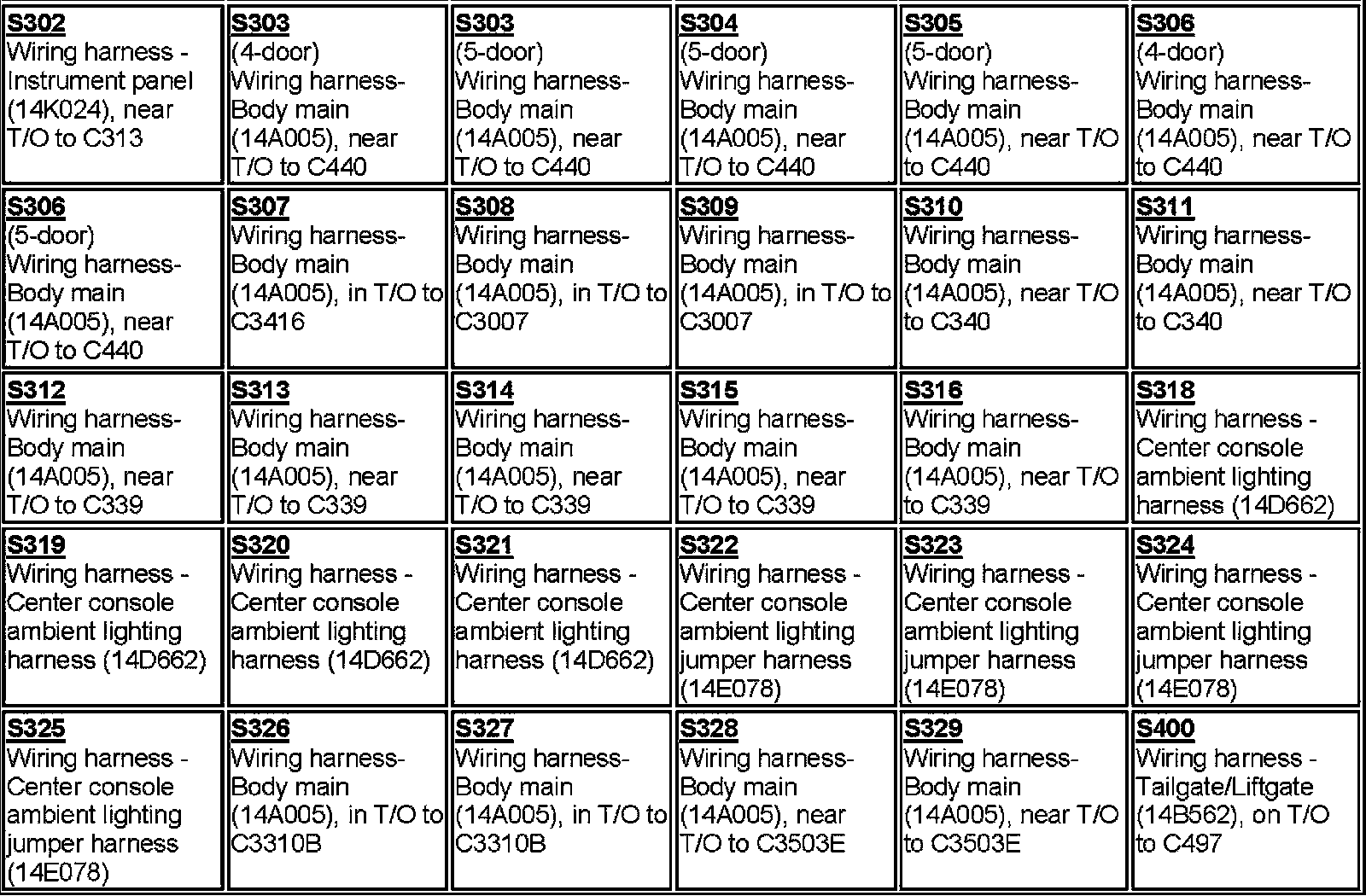

S302-S400:

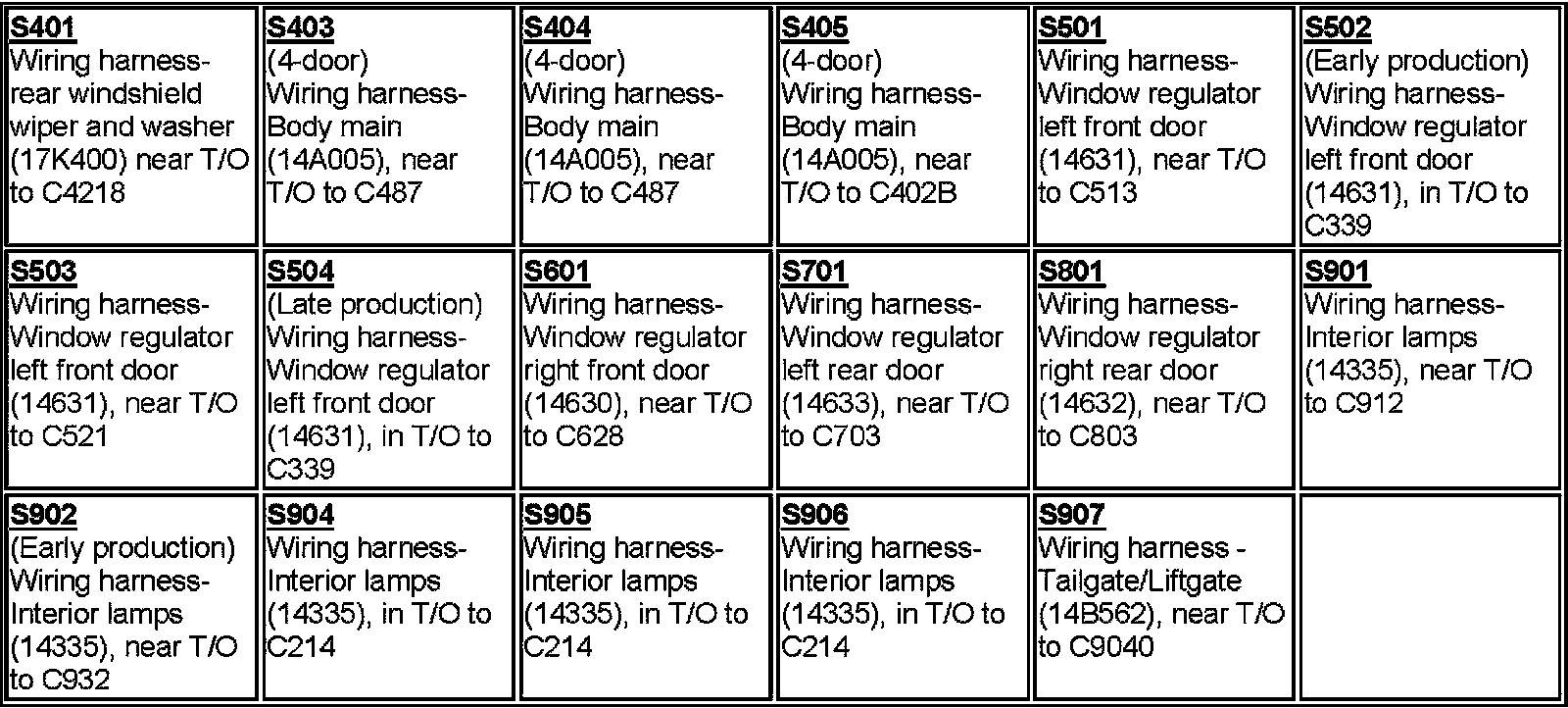

S401-S907:
