lemon-mirror
:
Home
>>
Ford
>>
2011
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, ASMT
>>

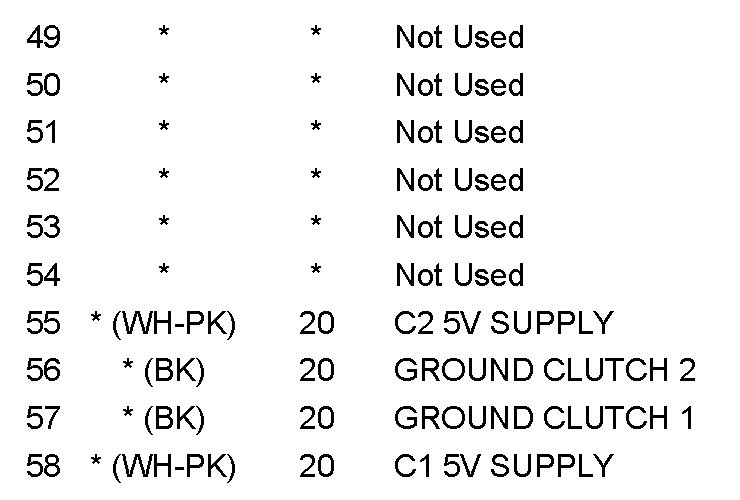

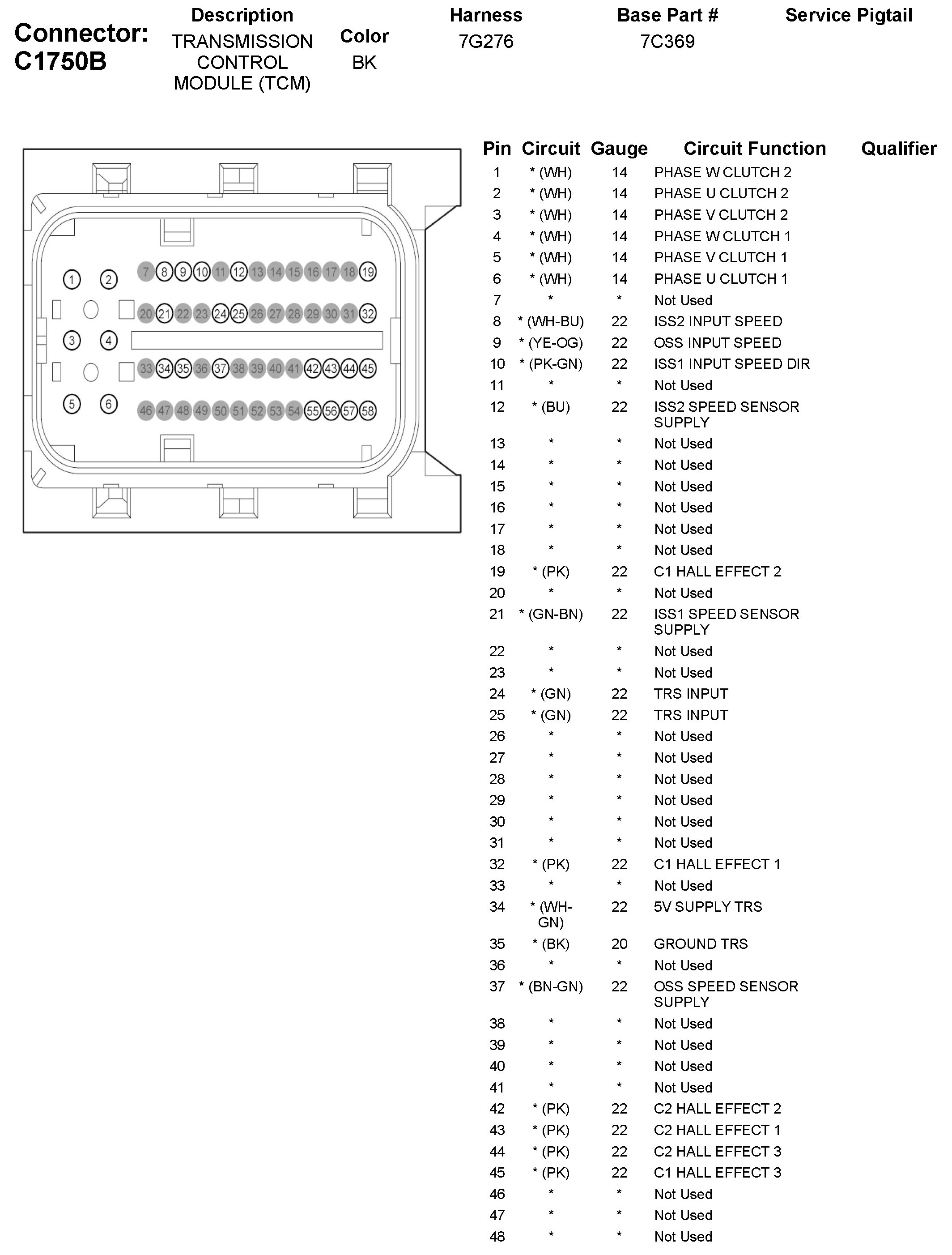

C1750B Transmission Control Module (TCM)
C1750B Transmission Control Module (TCM)
