Ford
>>
2011
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>

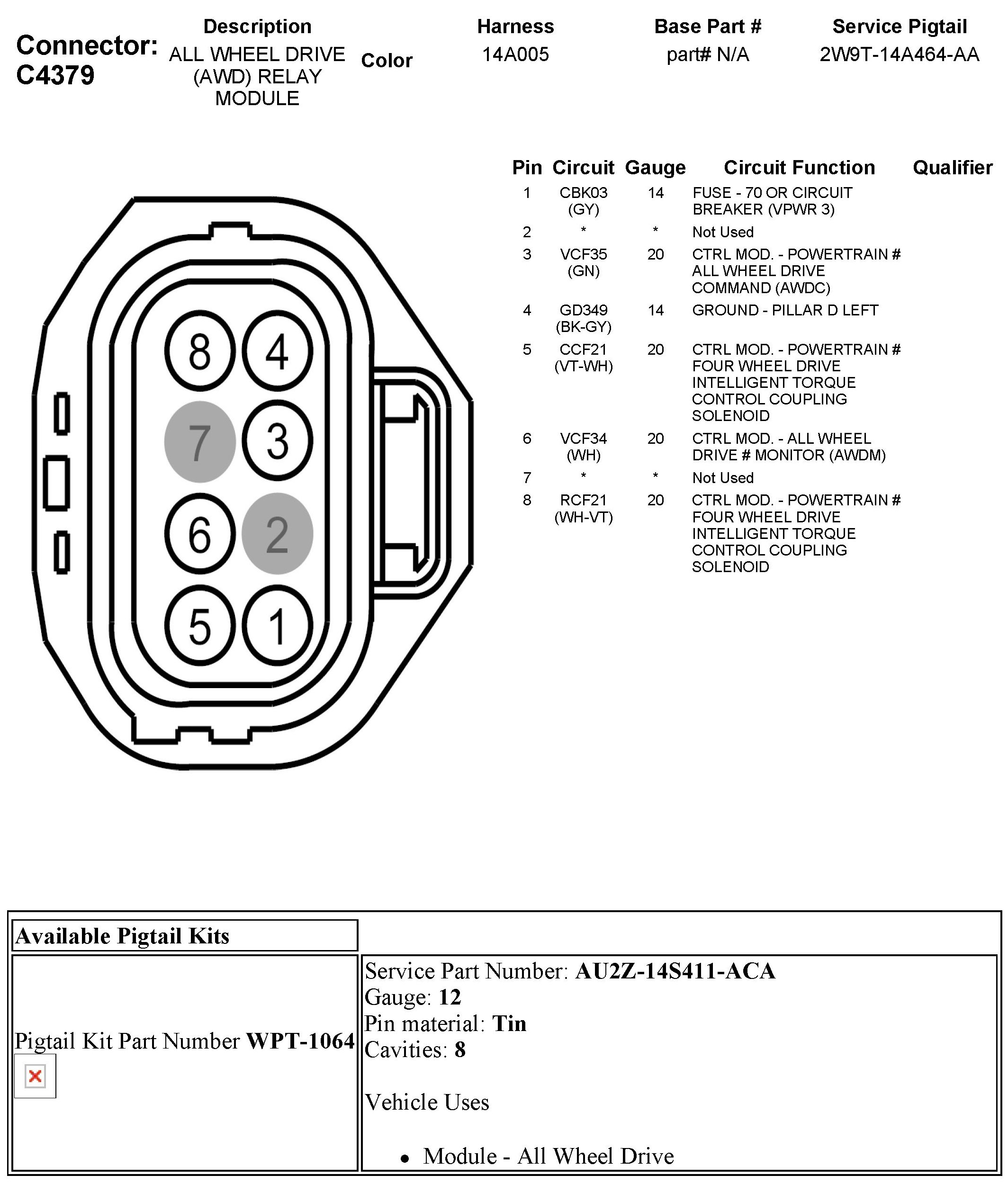

C4379 All Wheel Drive (AWD) Relay Module
C4379 All Wheel Drive (AWD) Relay Module
