Home >> Ford >> 2011 >> Explorer AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> C3639 All Terrain Control Module (ATCM)

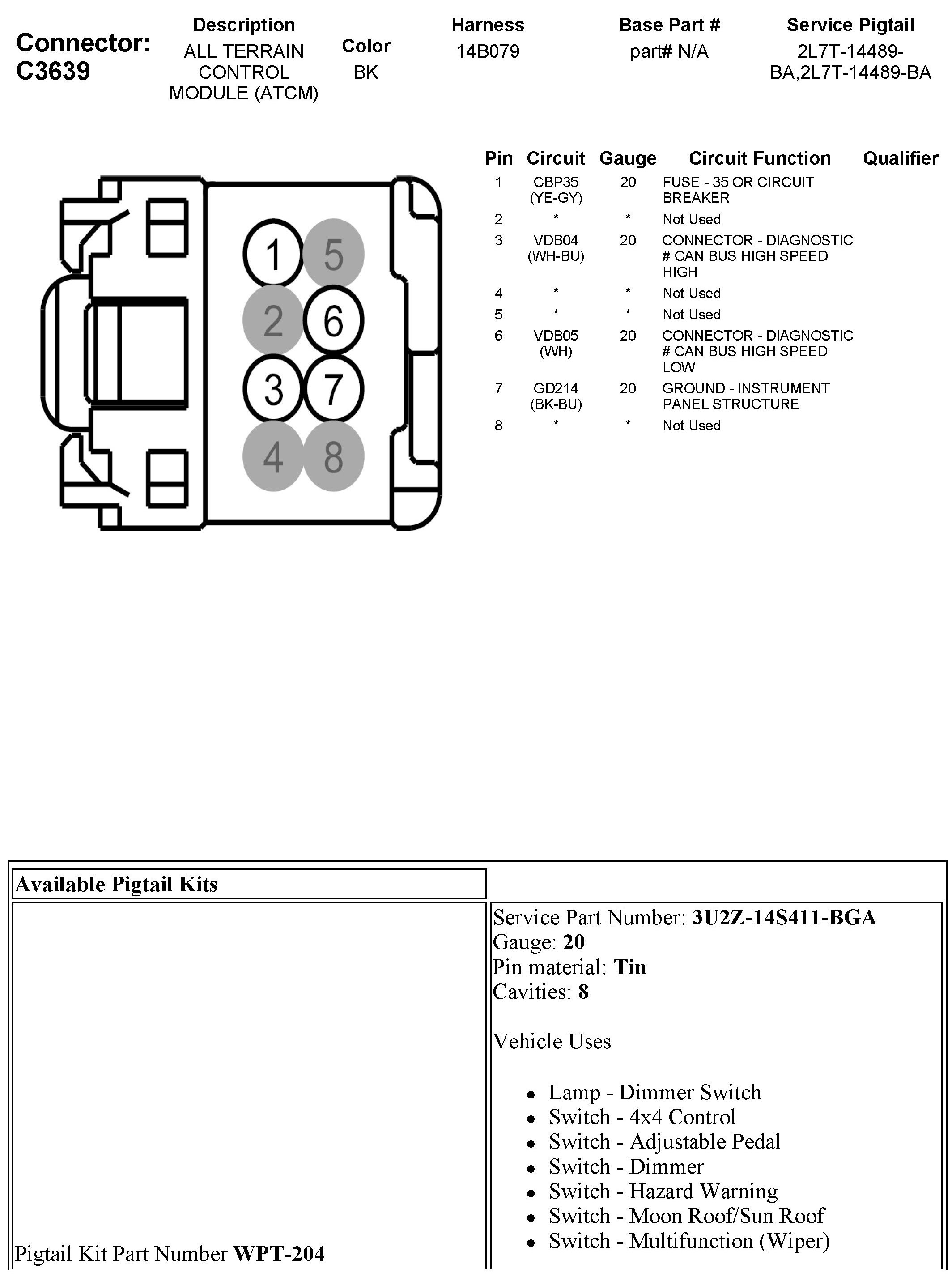

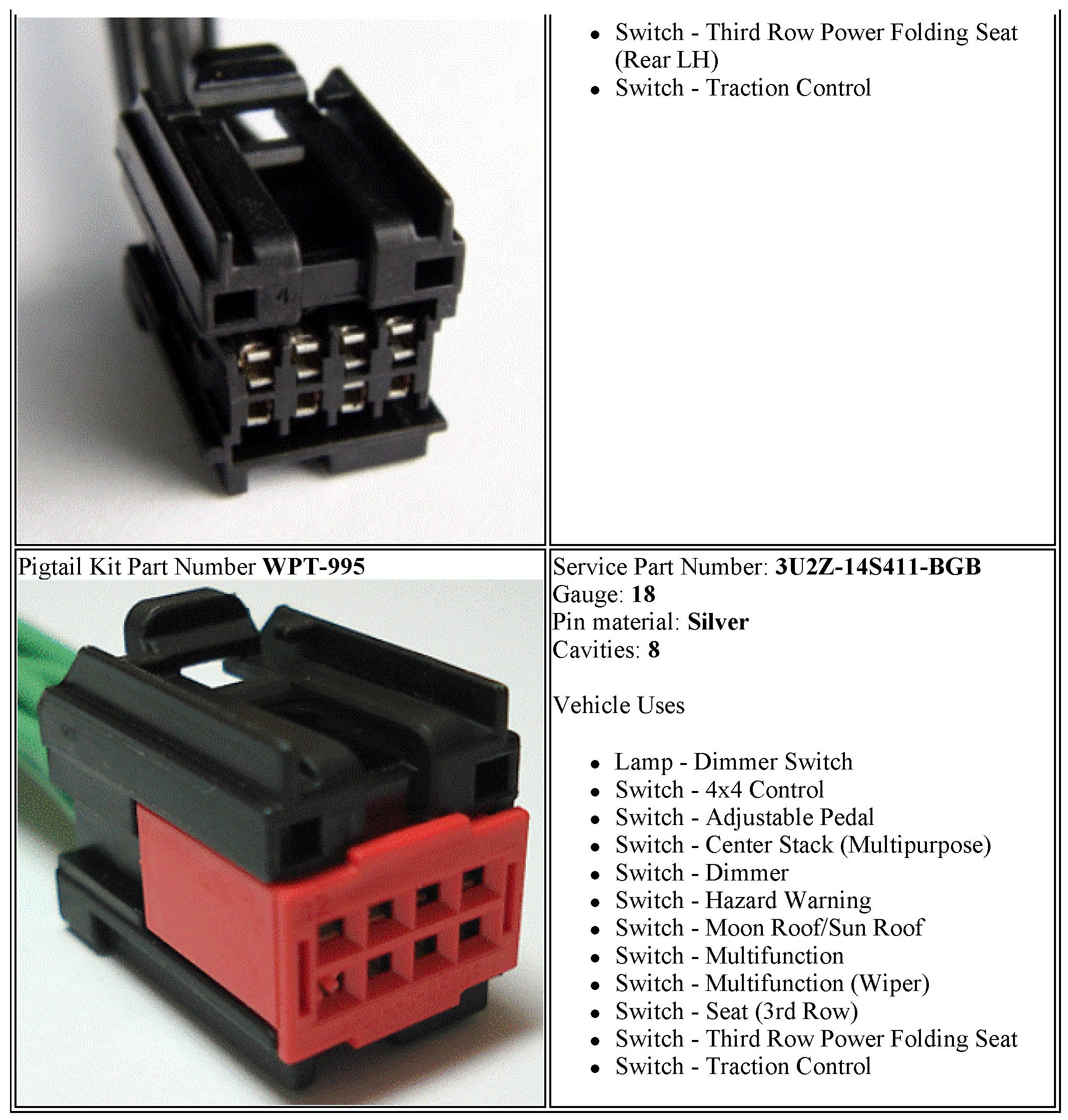

C3639 All Terrain Control Module (ATCM)
