Disc Brake System
>>
Front Disc Brake
Front Disc Brake

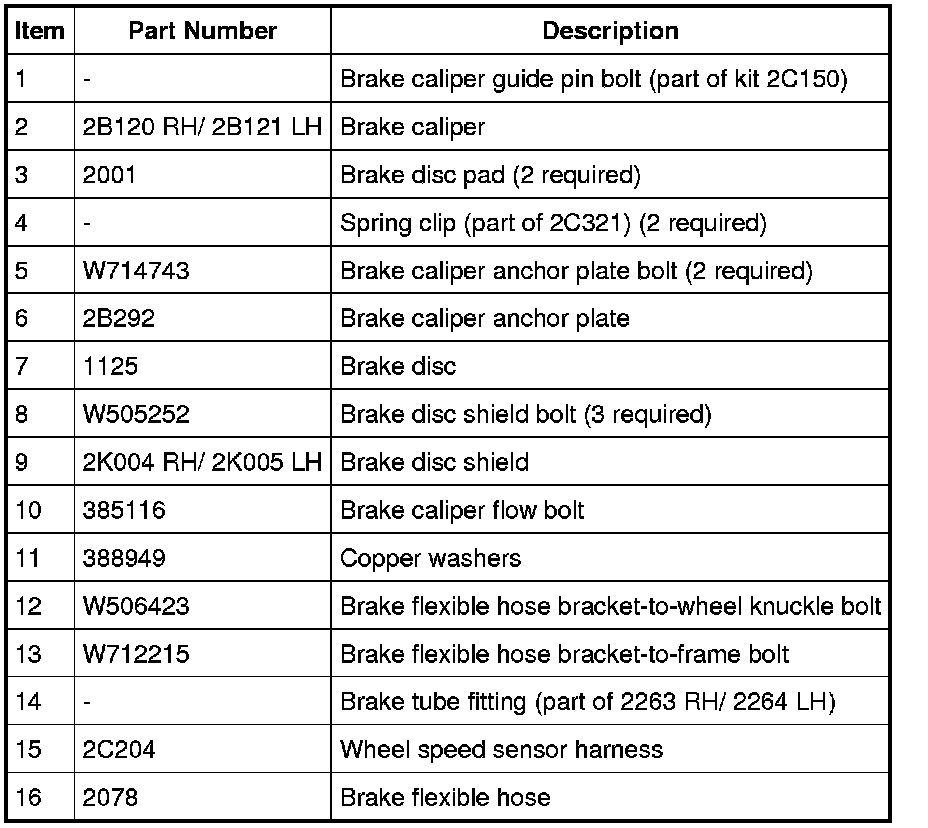

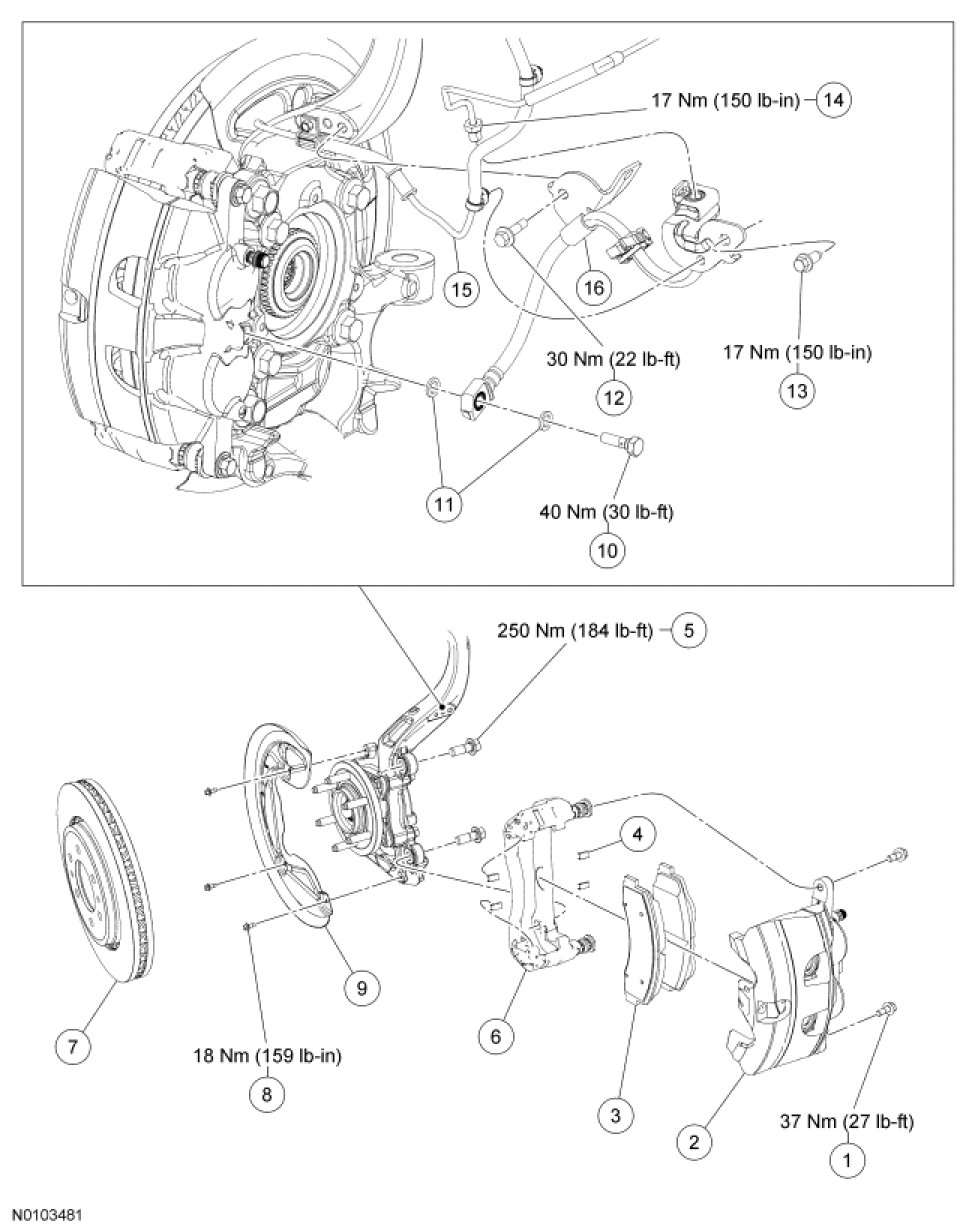

Disc Brake System
- Exploded View
NOTE:
Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.
