System Diagram
System Diagram
Mechatronic Assembly

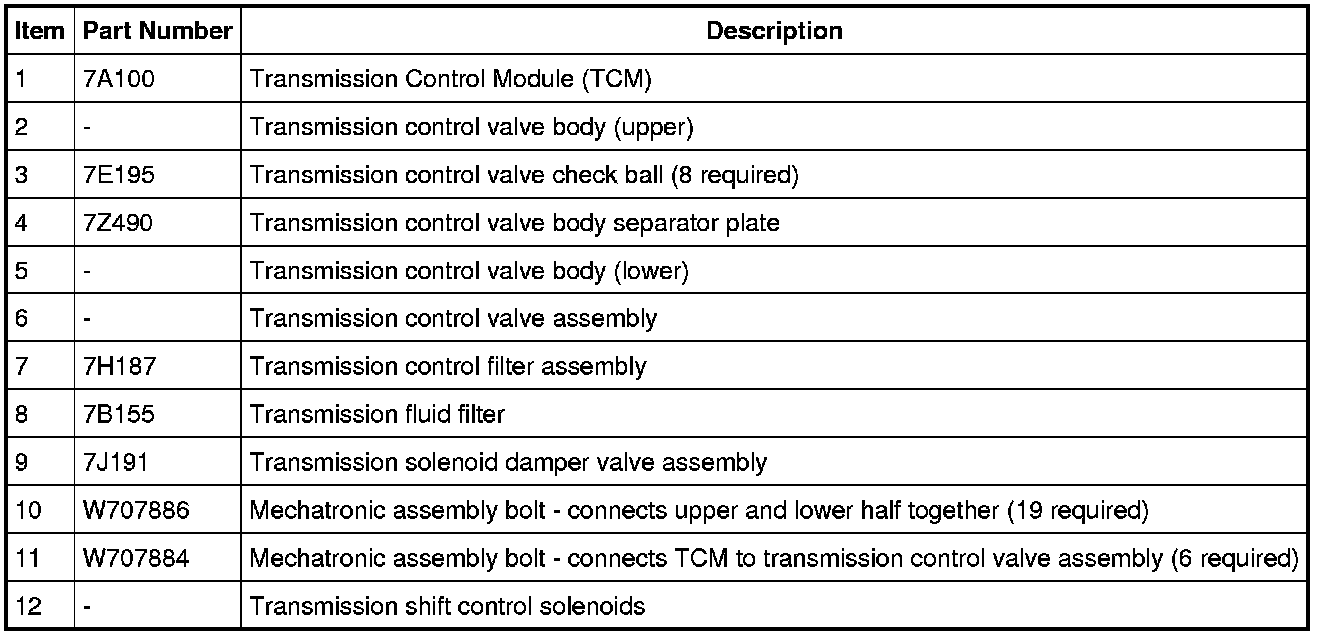

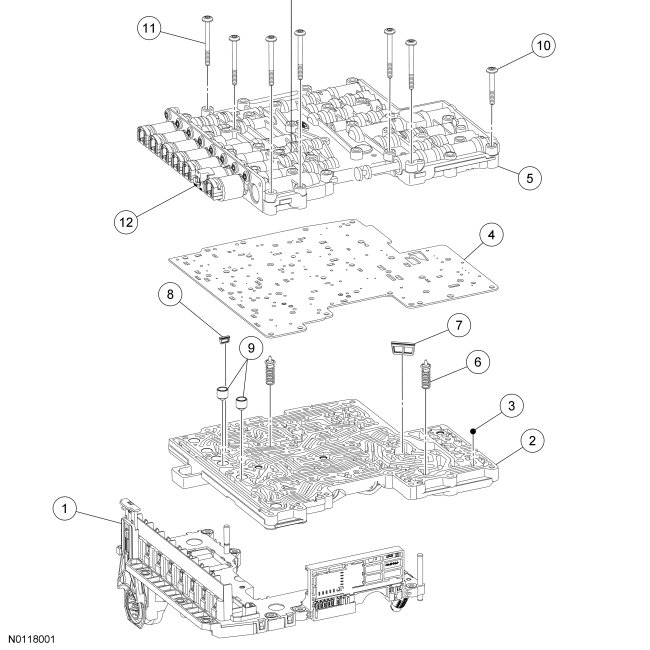

Mechatronic

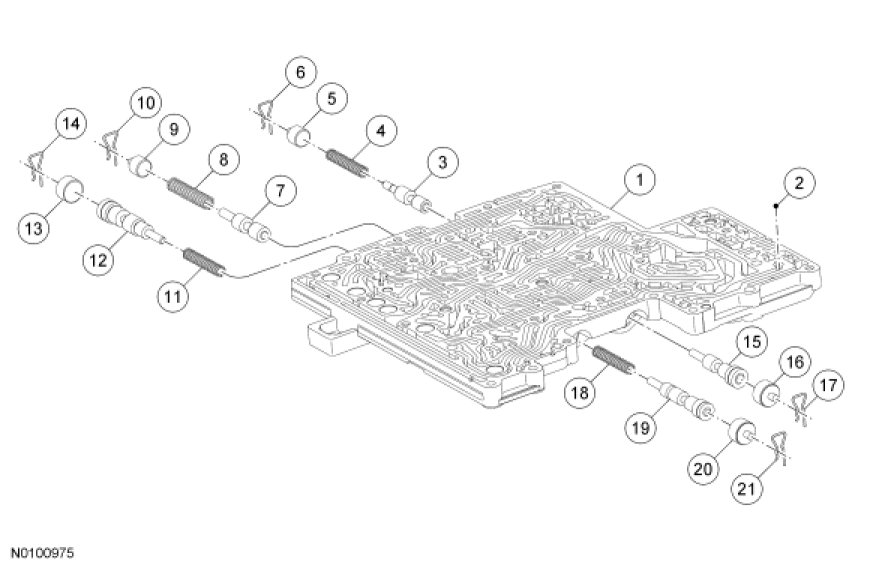

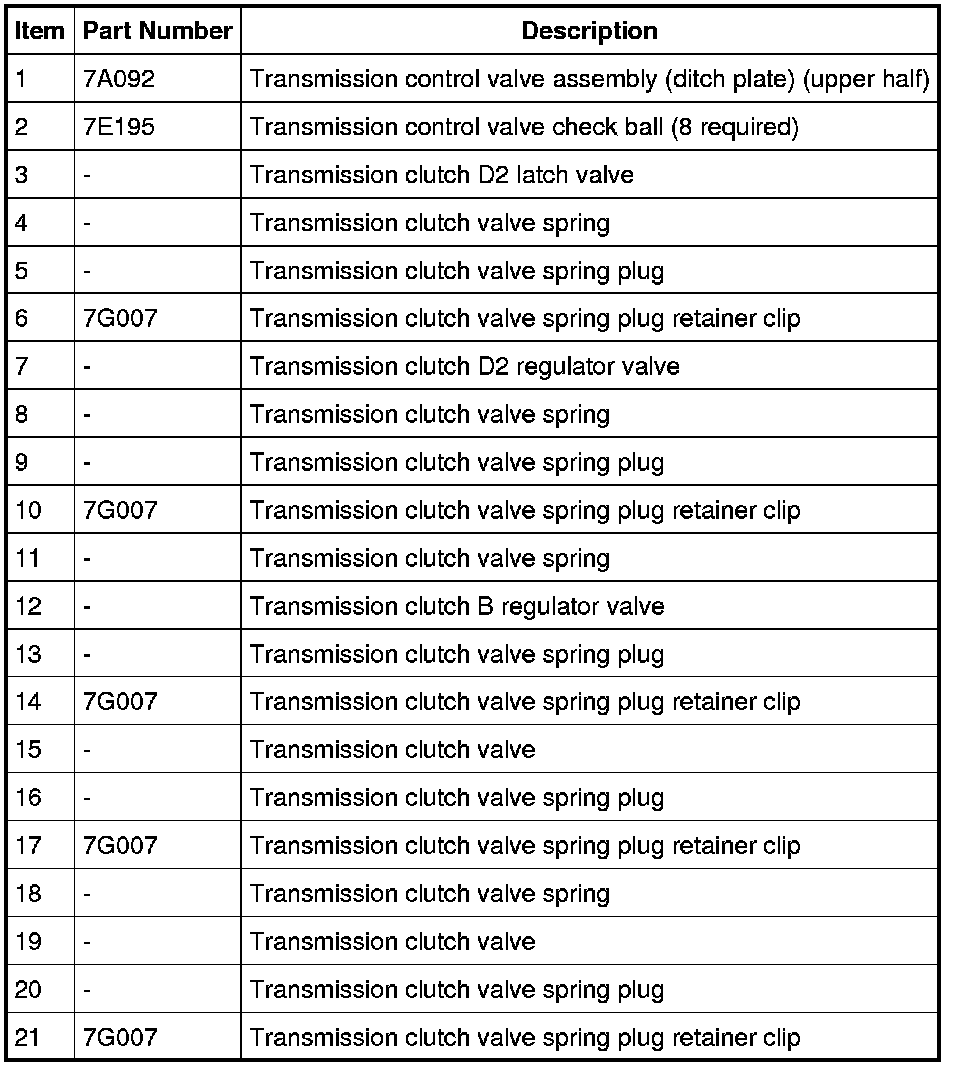

Mechatronic Upper Half

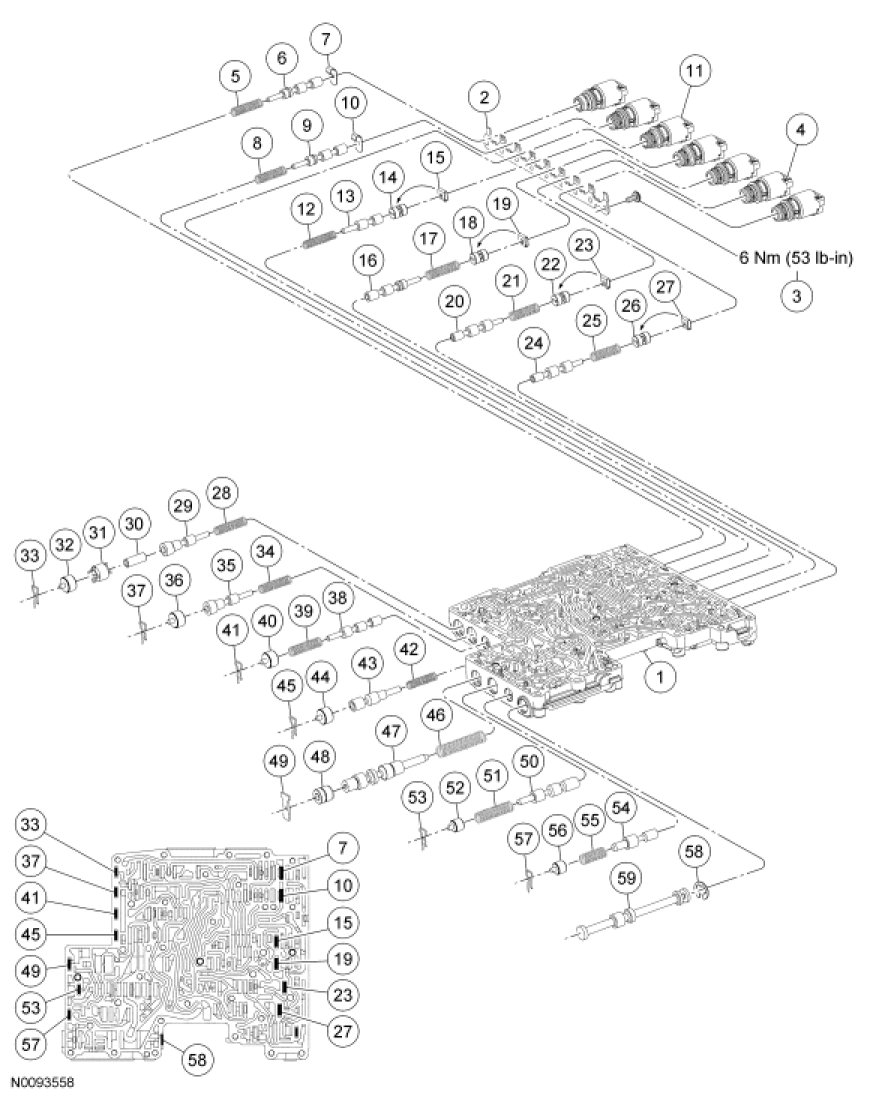

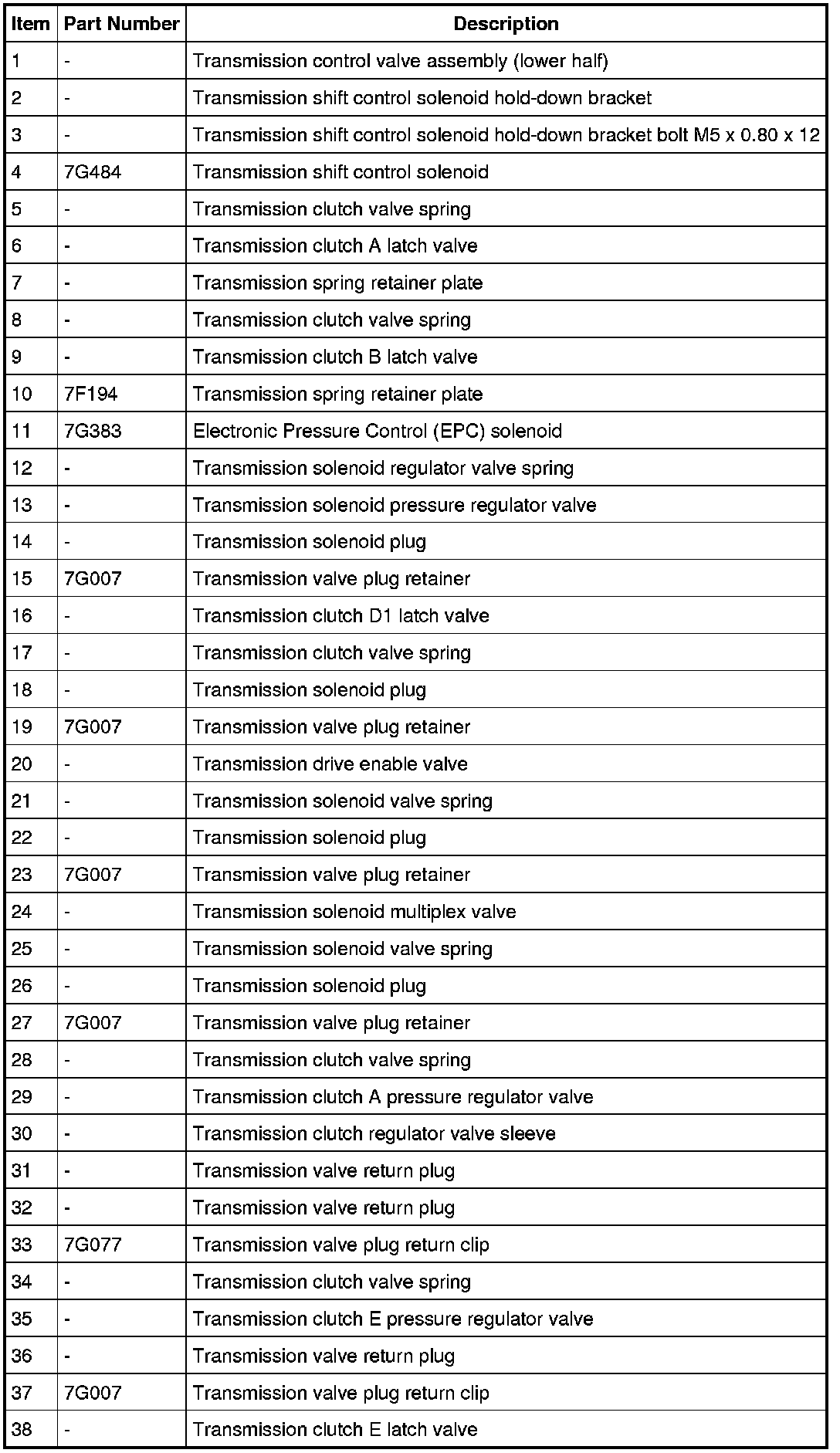

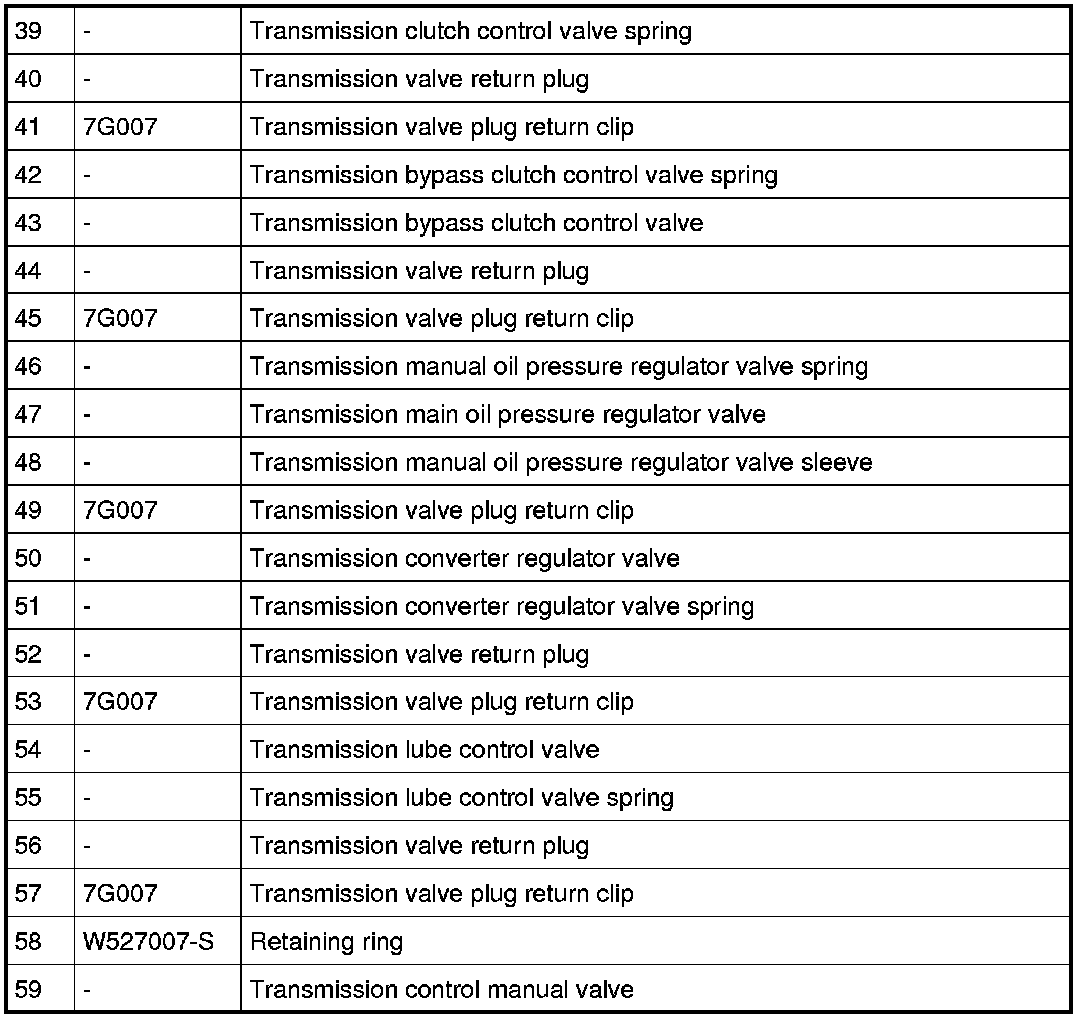

Mechatronic Lower Half

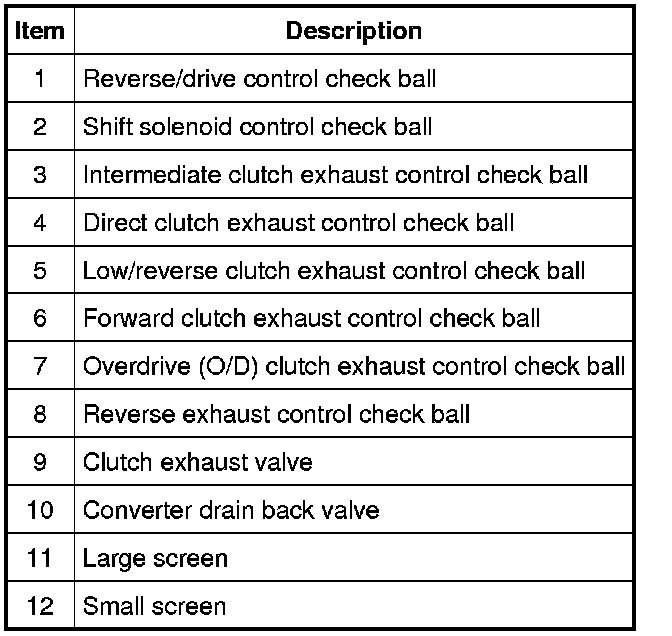

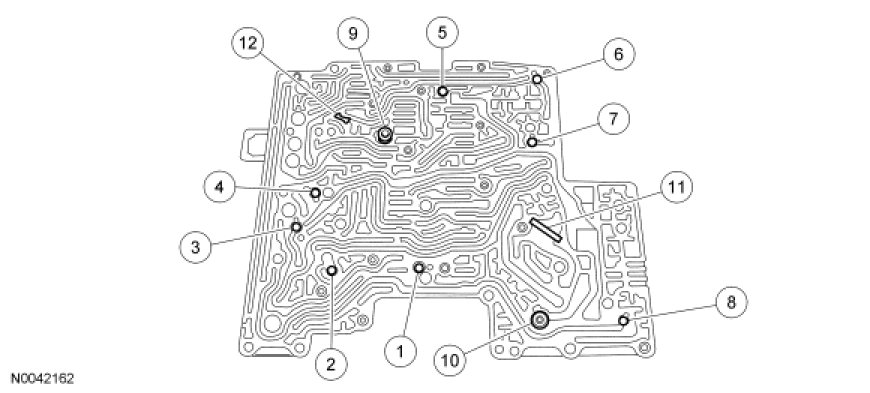

Check Ball Location
