Home >> Ford >> 2011 >> Edge FWD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Weld Nugget Chart

Weld Nugget Chart

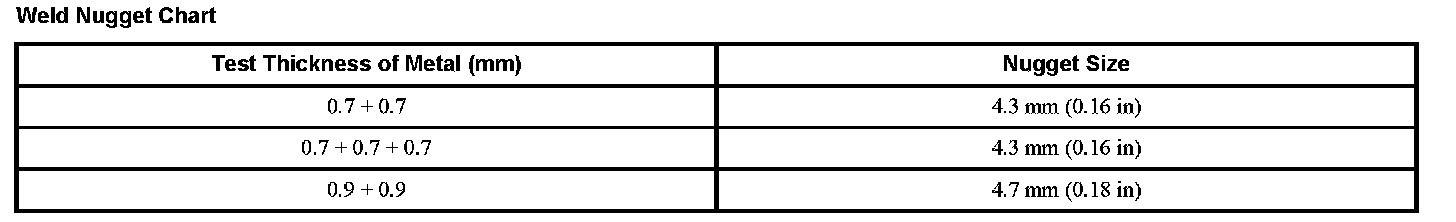

Weld Nugget Chart (Part 1):

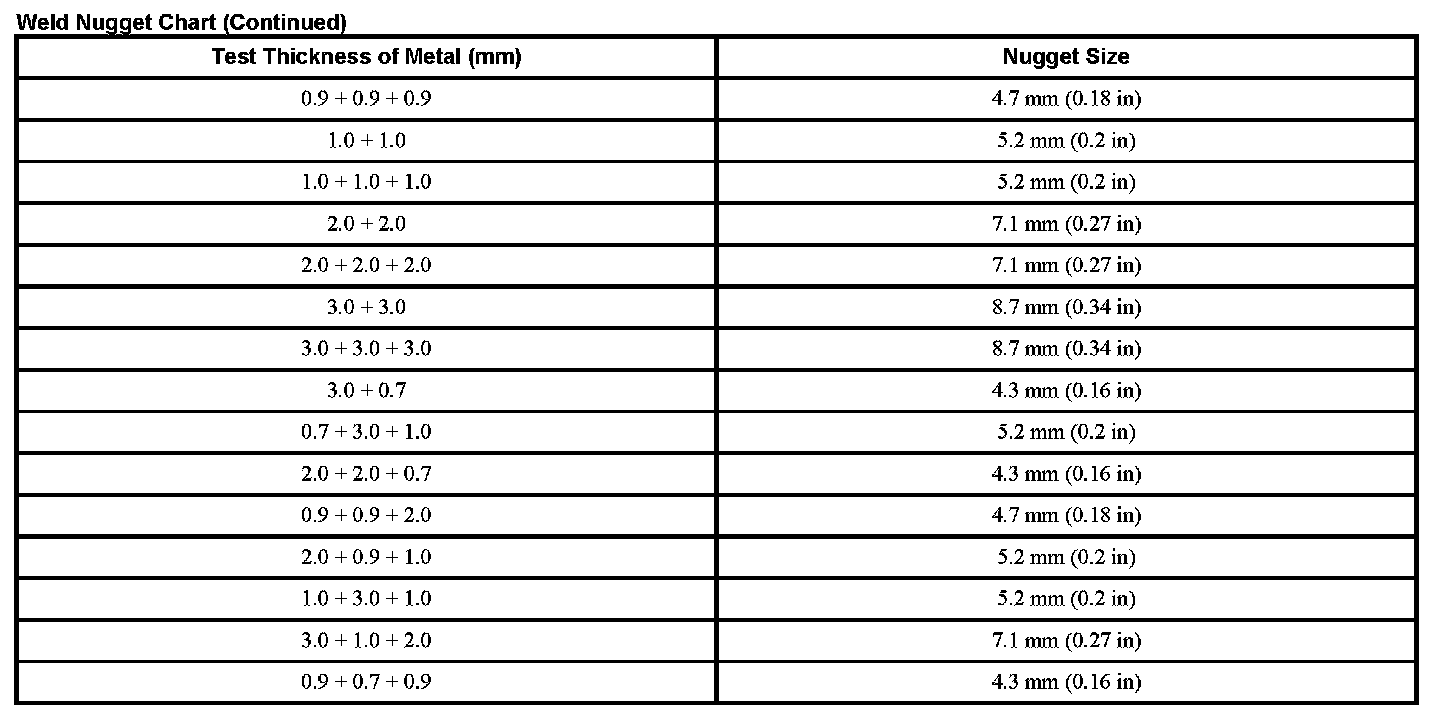

Weld Nugget Chart (Part 2):
