Home >> Ford >> 2011 >> Edge FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Access Cover, Engine

Access Cover, Engine

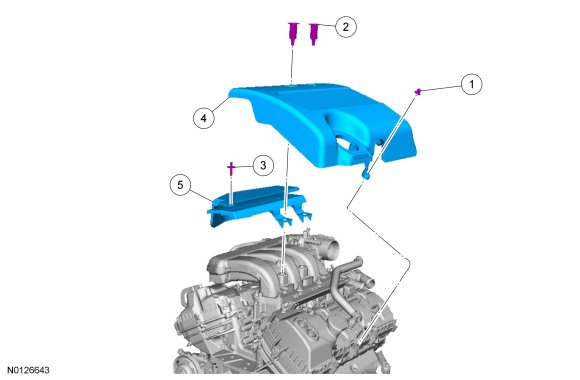

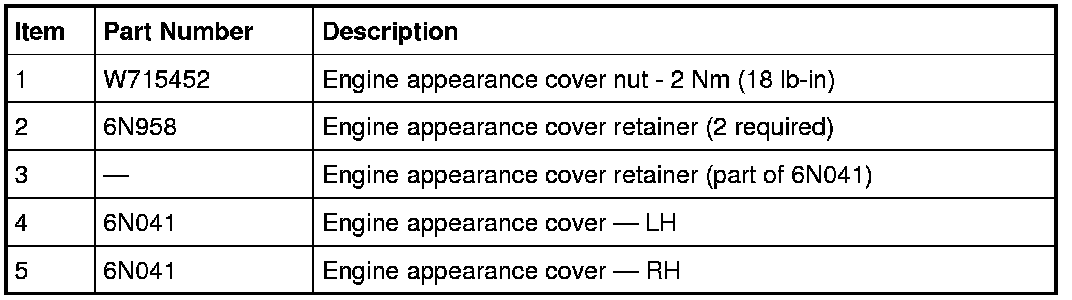

Engine Appearance Cover - Exploded View










1. Use only a mild soap and water solution to clean the engine appearance cover.
