Ford
>>
2011
>>
Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>

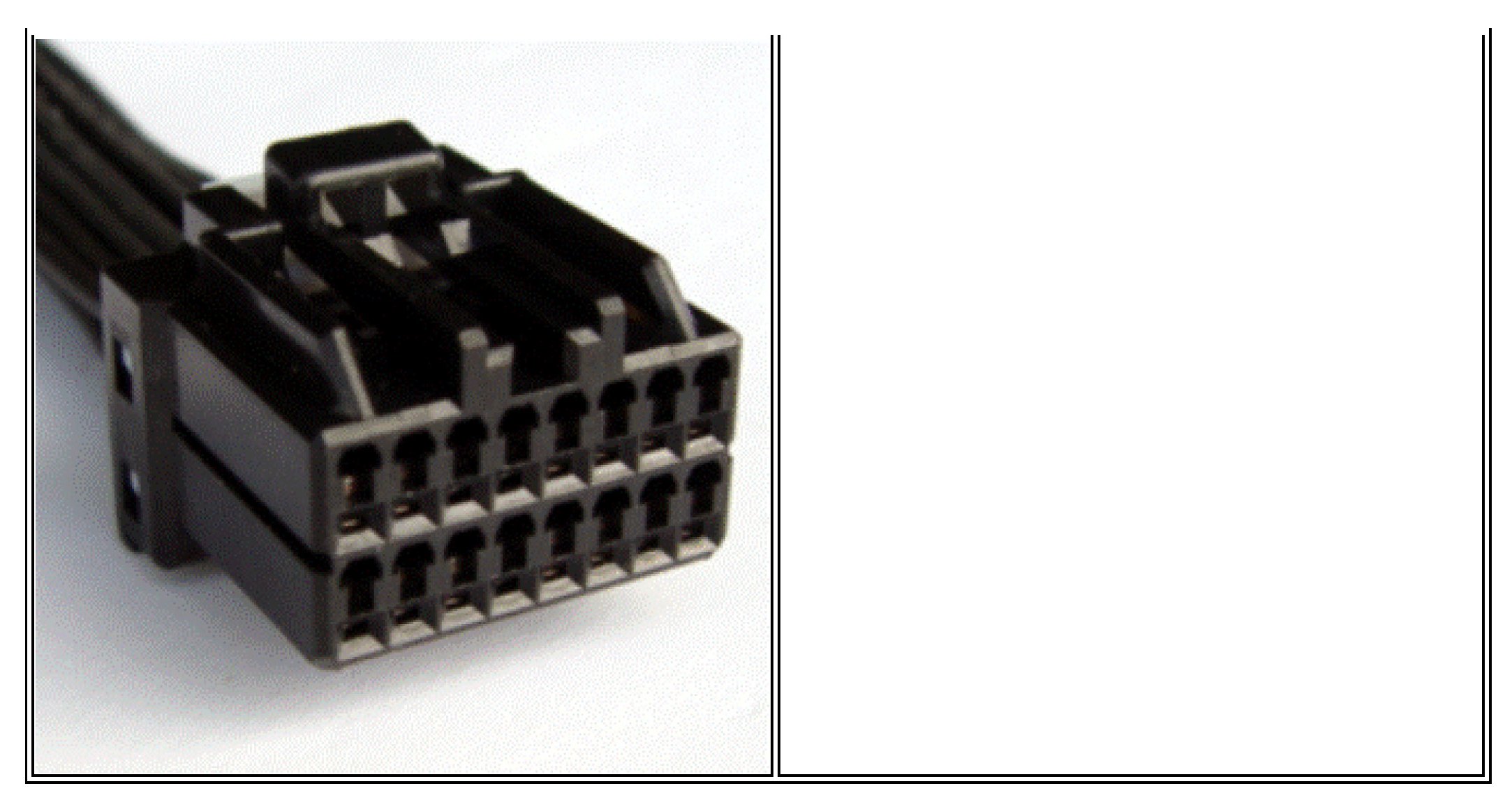

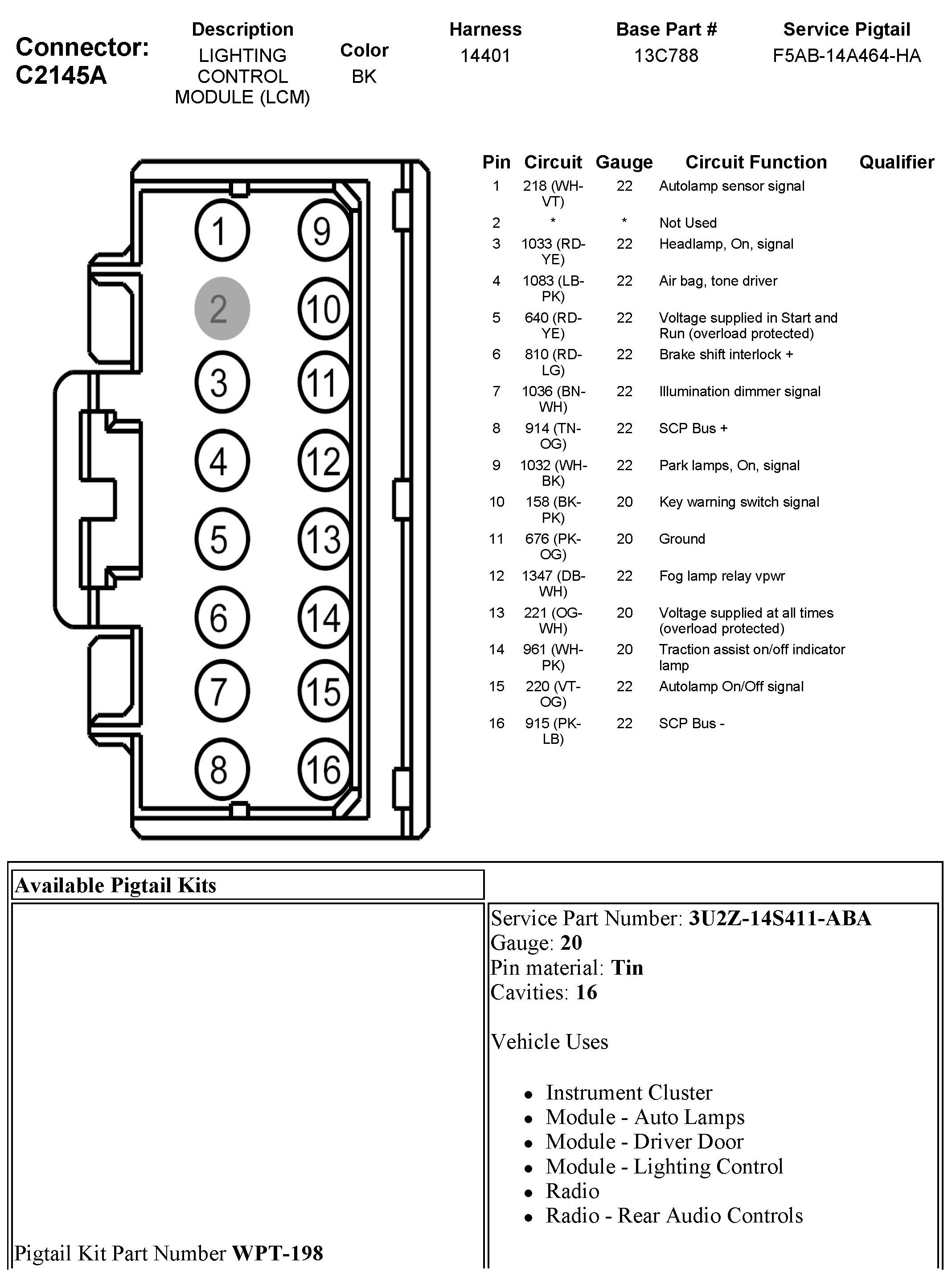

C2145A Lighting Control Module (LCM)
C2145A Lighting Control Module (LCM)
