Home >> Ford >> 2010 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

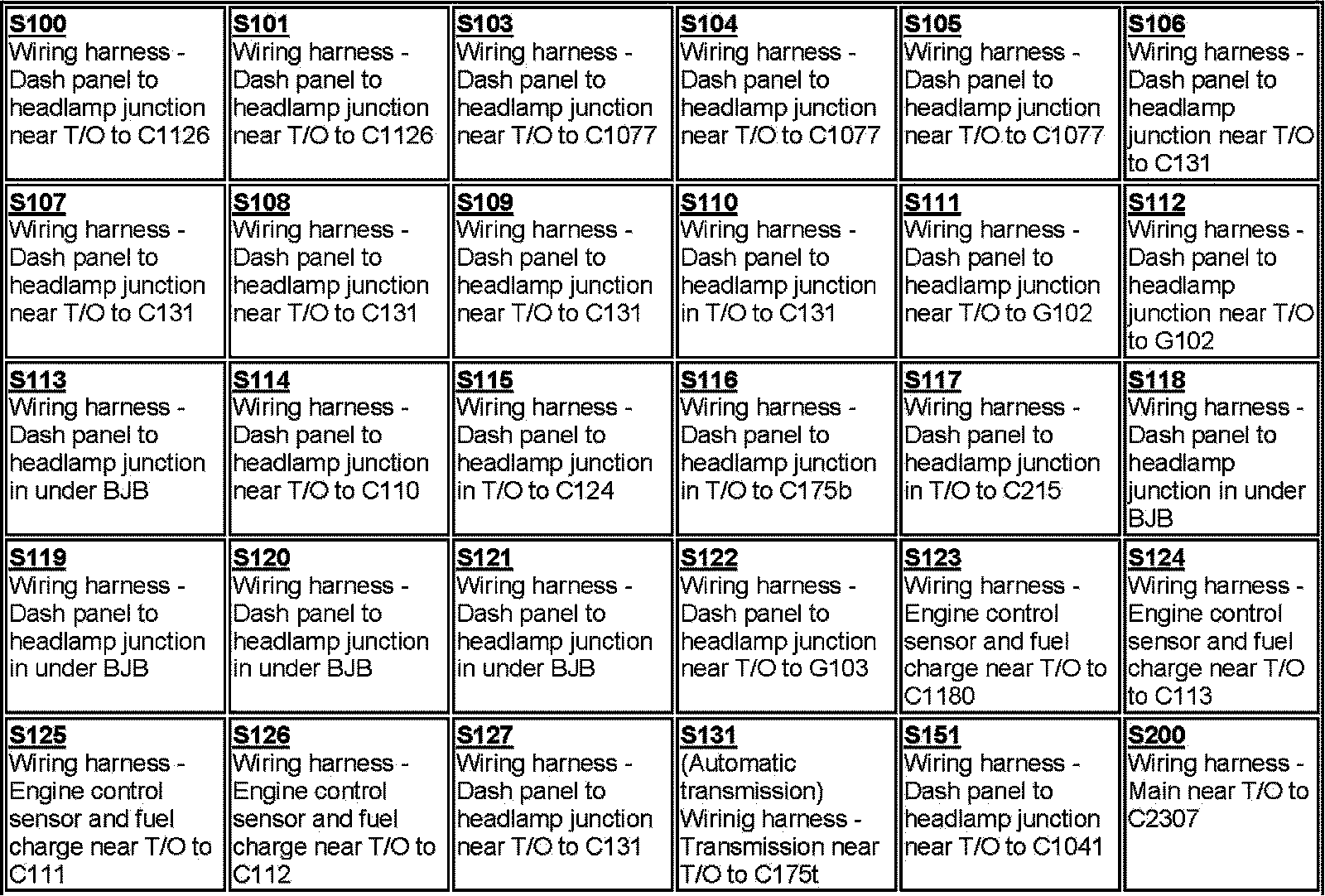

S100-S200:

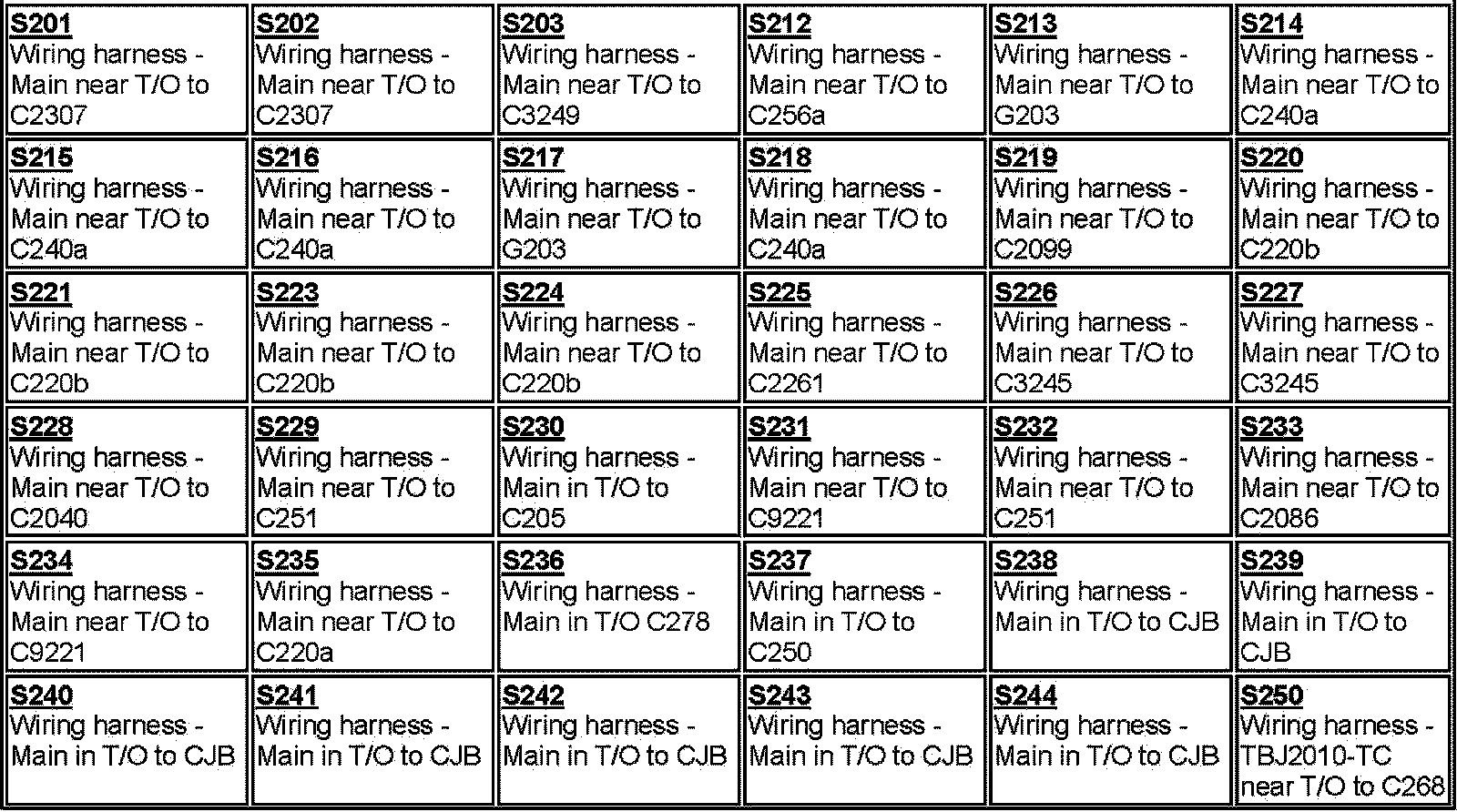

S201-S250:

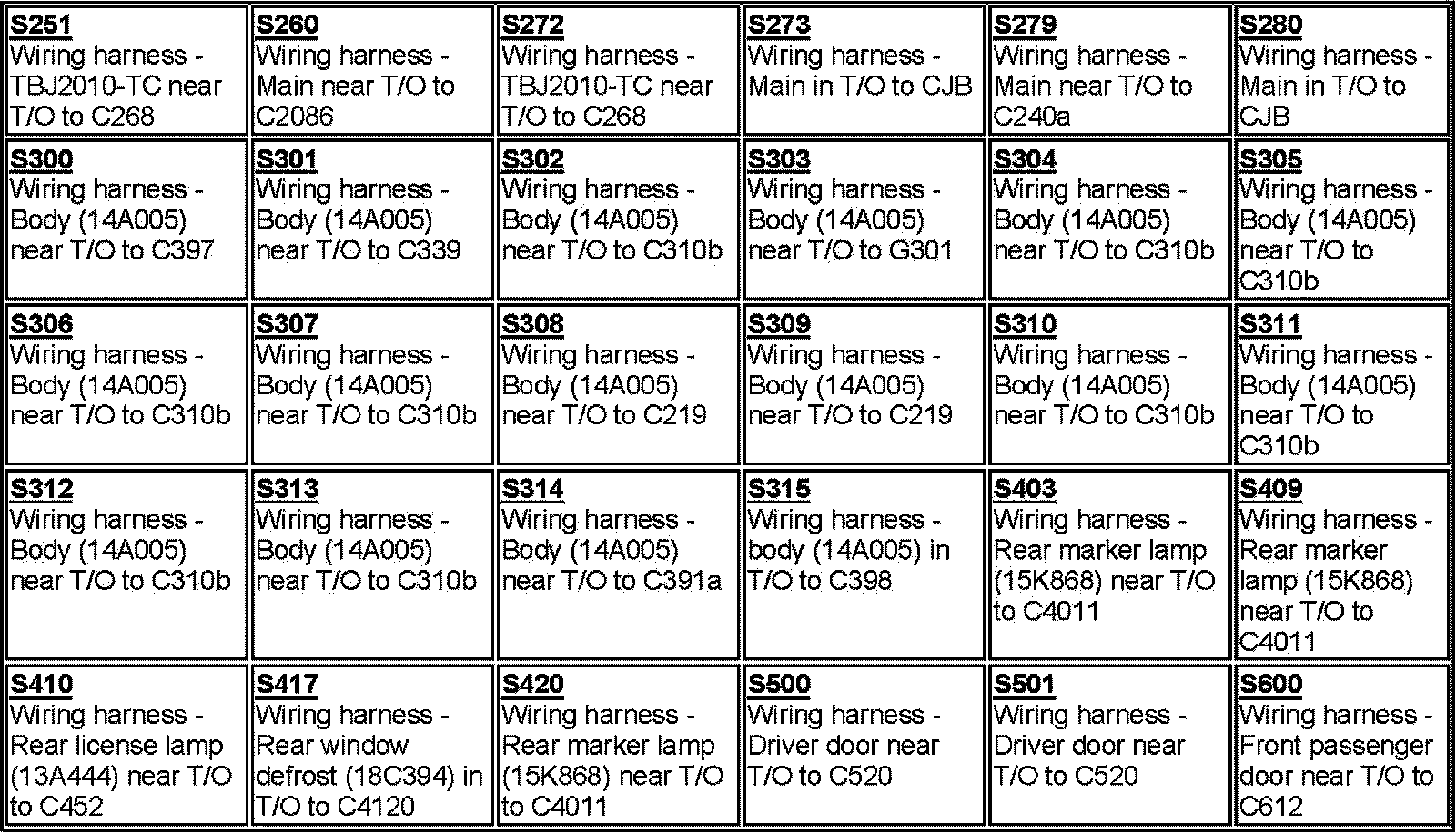

S251-S600:
