Locations
>>
Connector Locations
Connector Locations

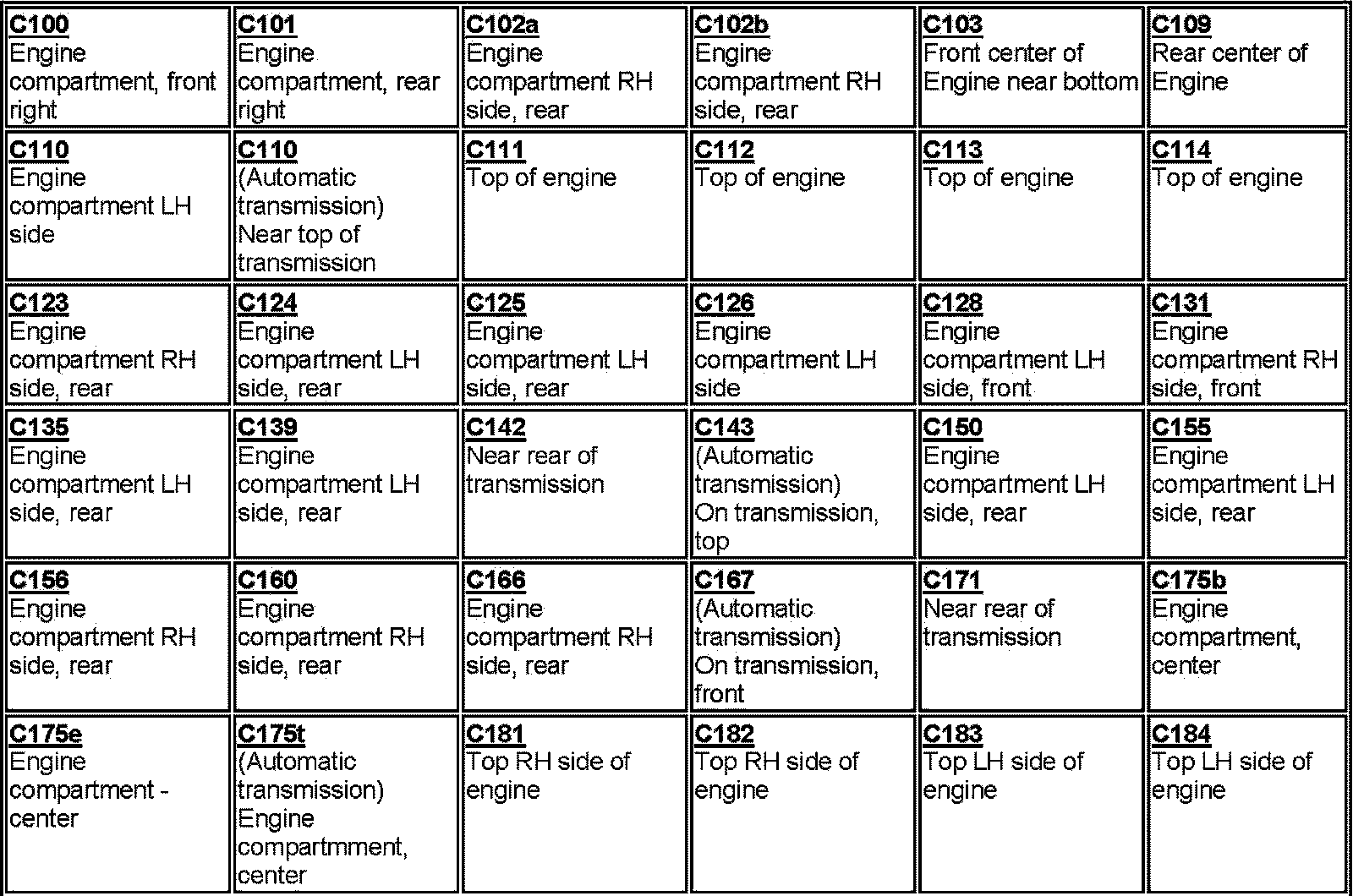

C100-C184:

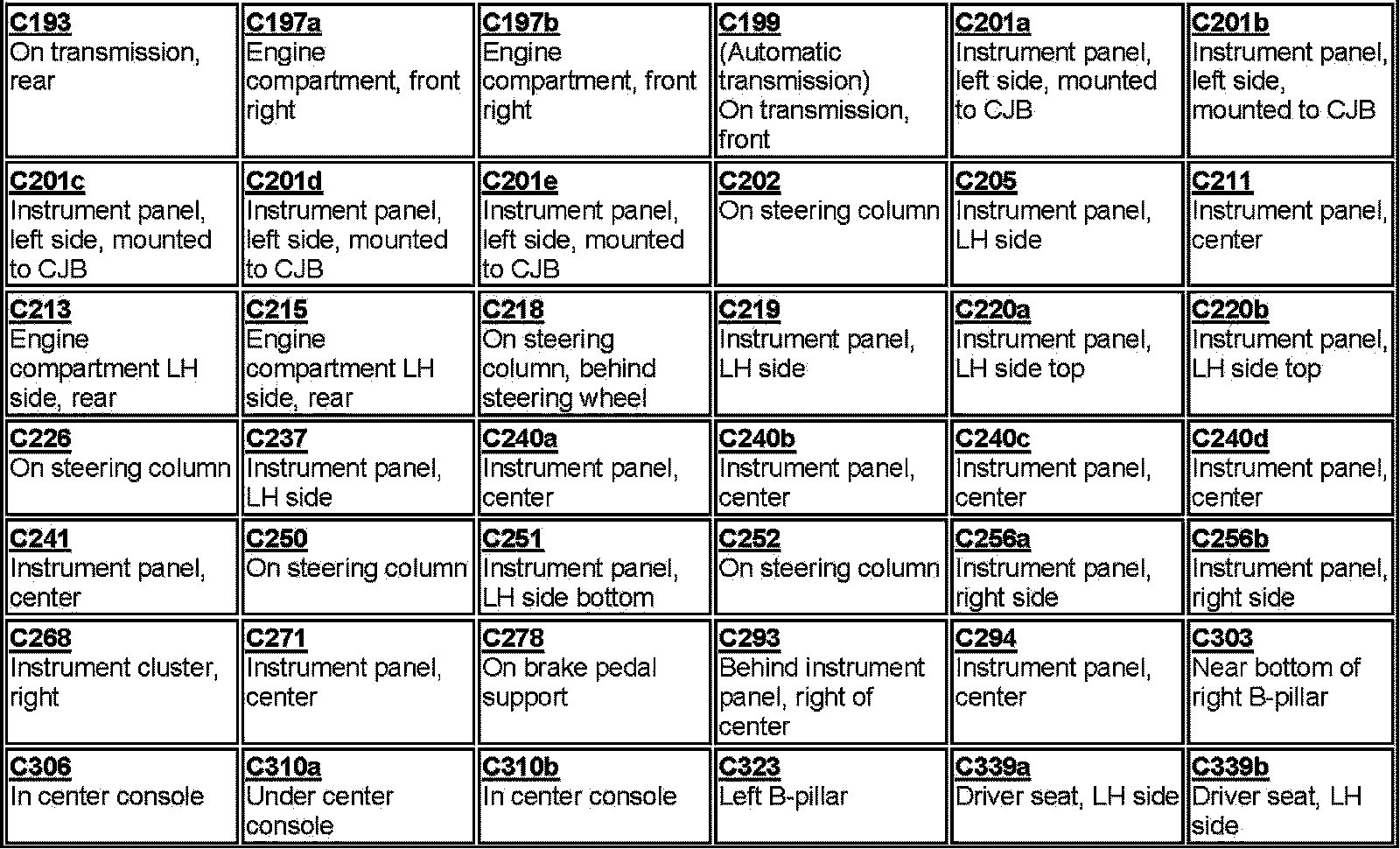

C193-C339b:

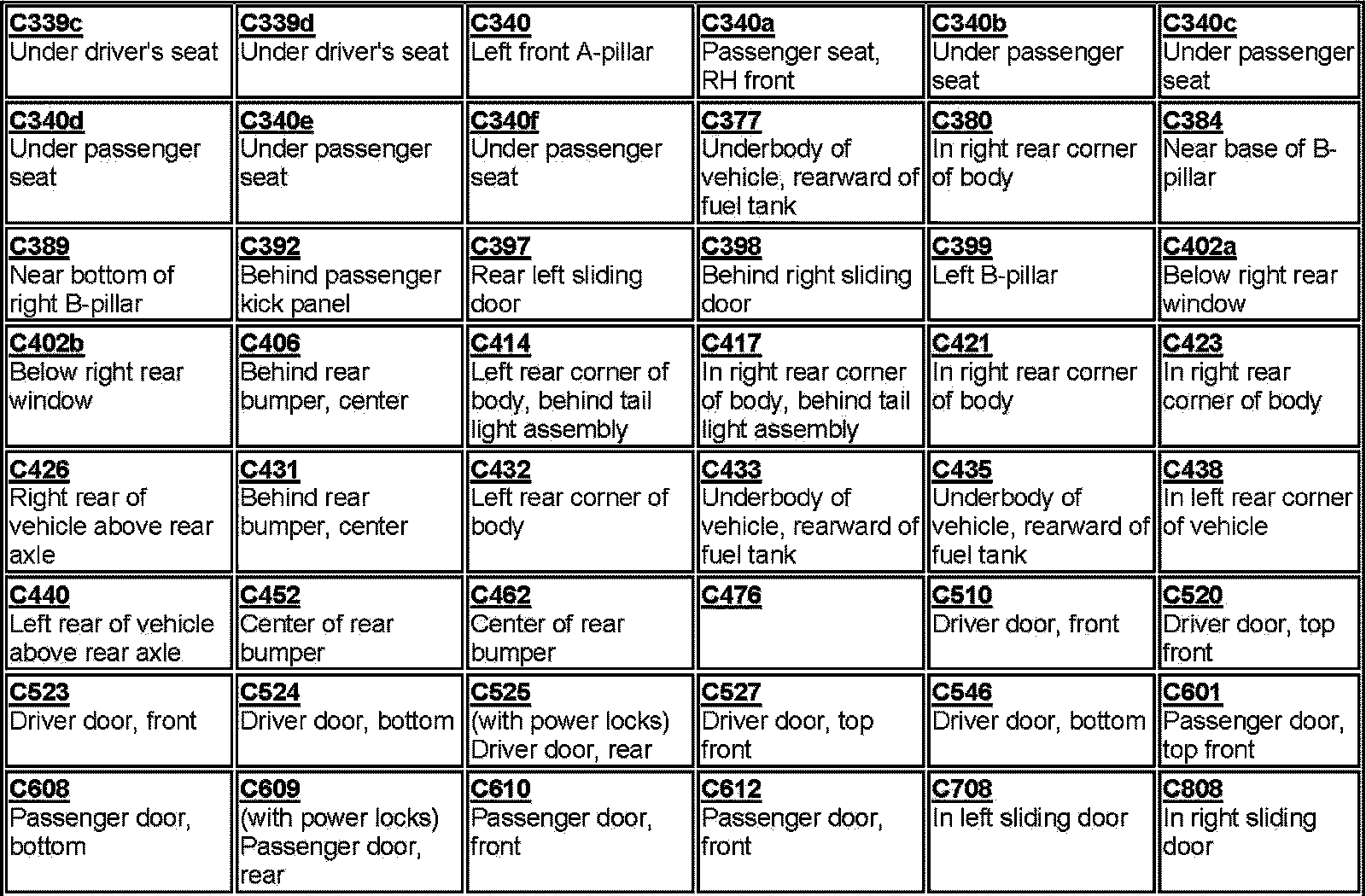

C339c-C808:

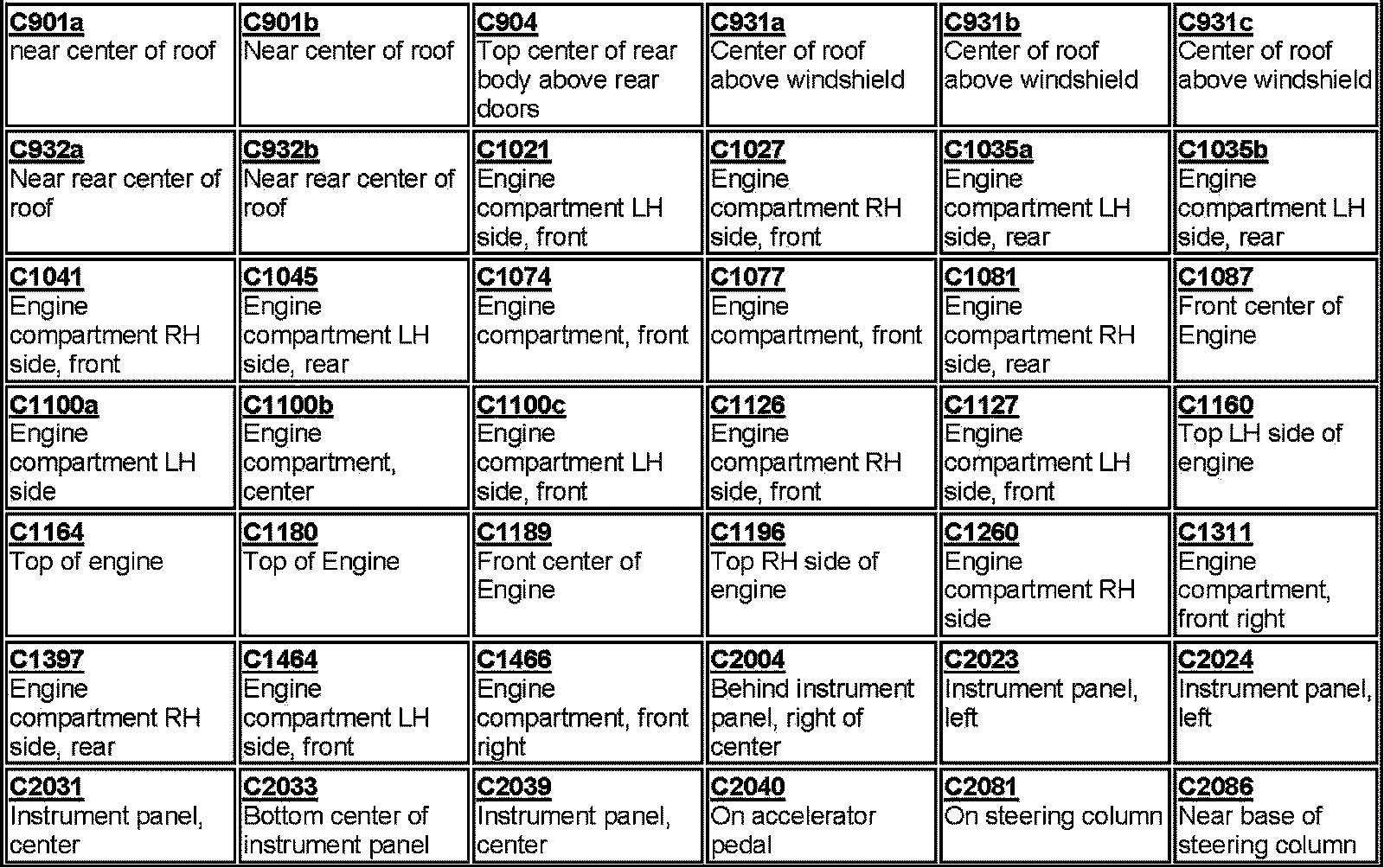

C901a-C2086:

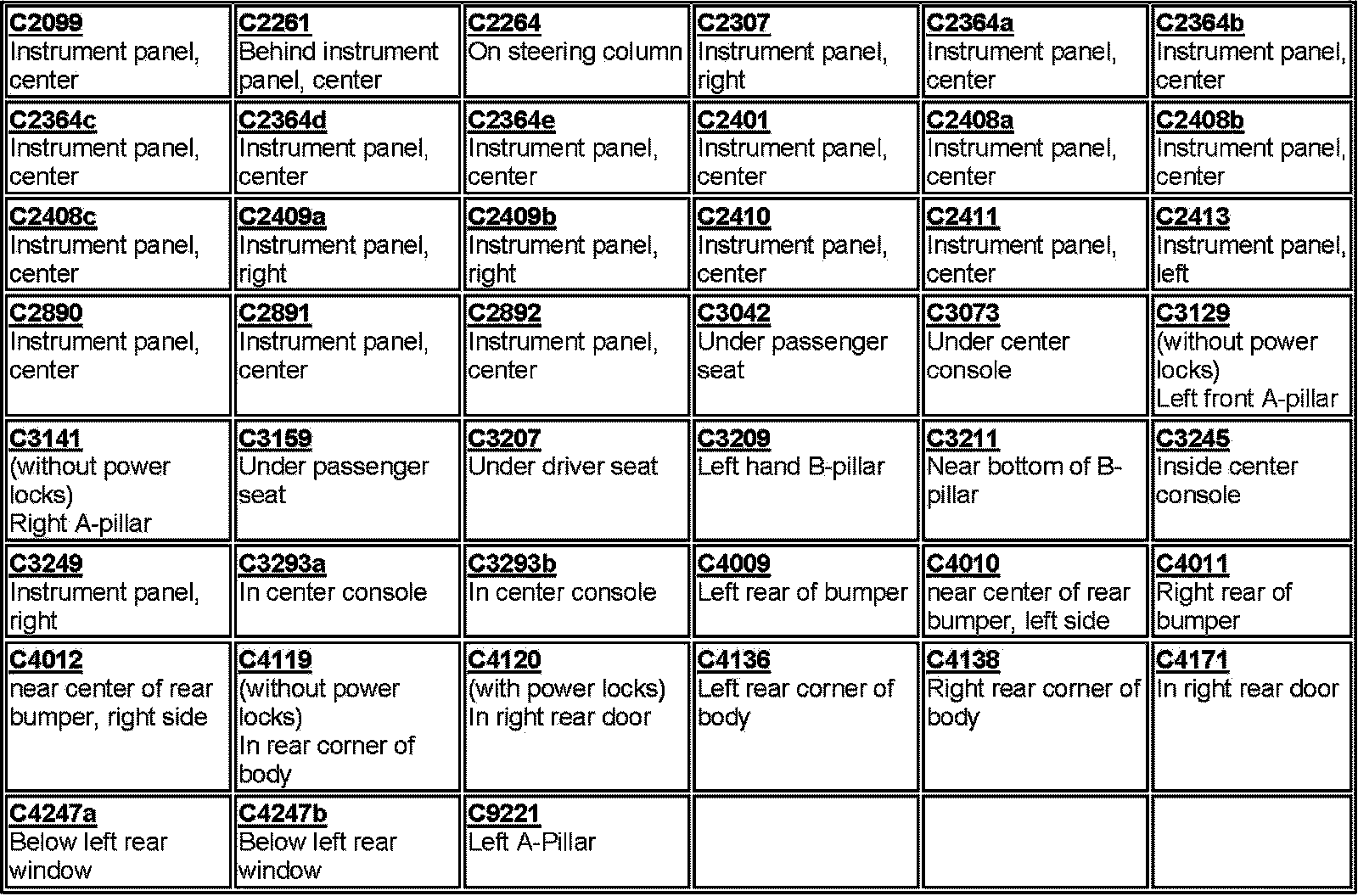

C2099-C9221:
