Oil Filter, Engine

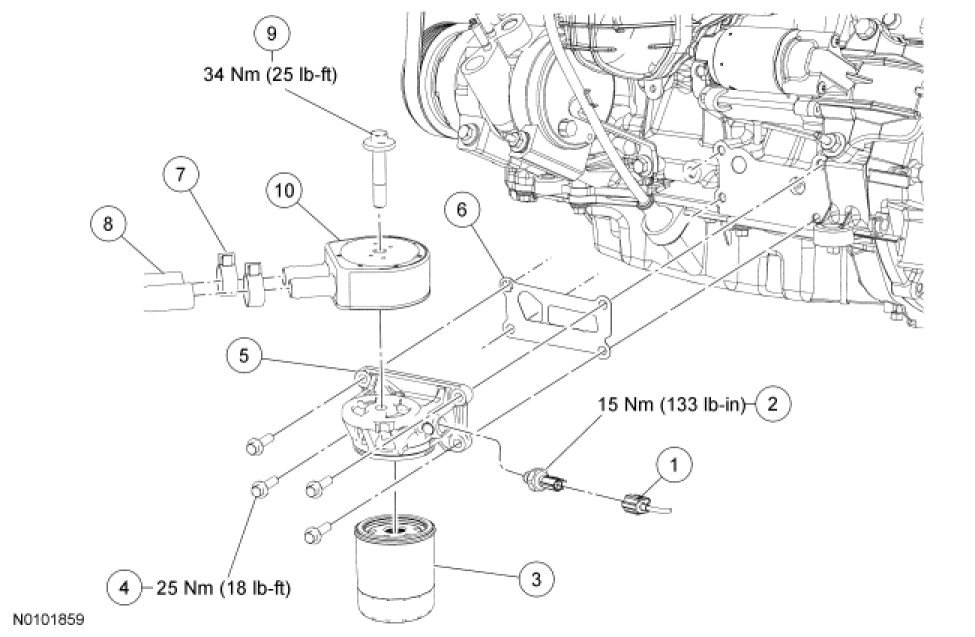

Engine Lubrication Components - Exploded View

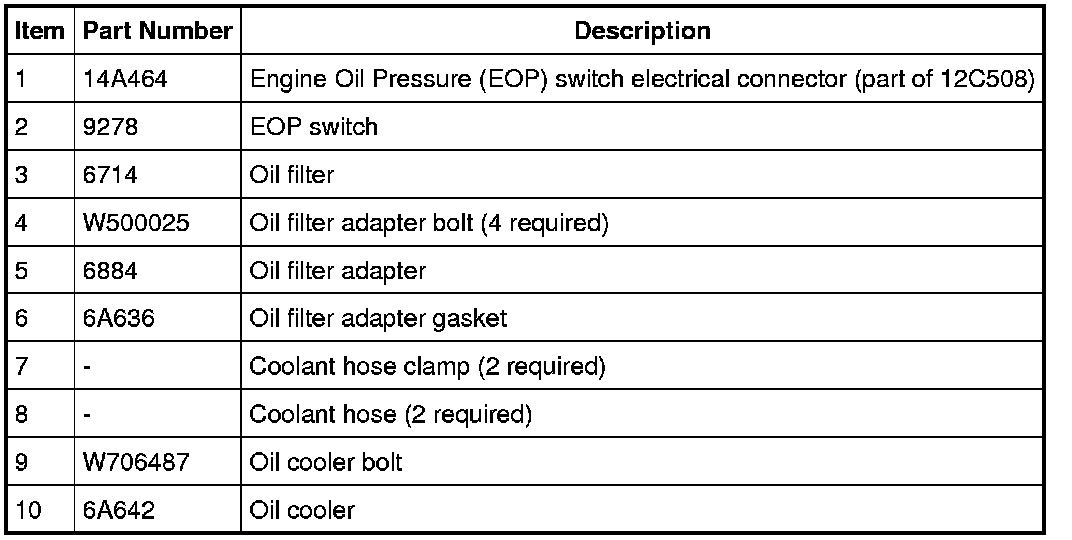

Oil Filter, Oil Filter Adapter, Oil Cooler and Engine Oil Pressure (EOP) Switch
