Intake Manifold

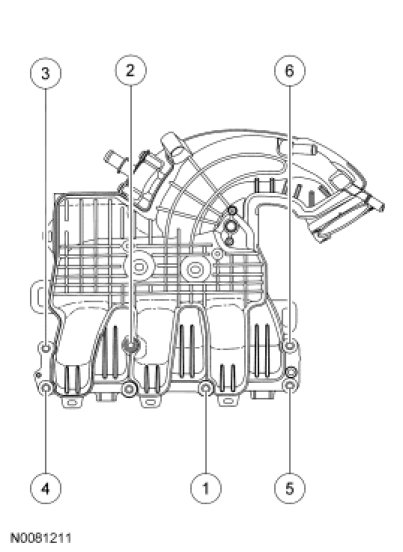

Using new gaskets, install the upper intake manifold and the 6 bolts.

Tighten in the sequence shown to 10 Nm (89 lb-in).

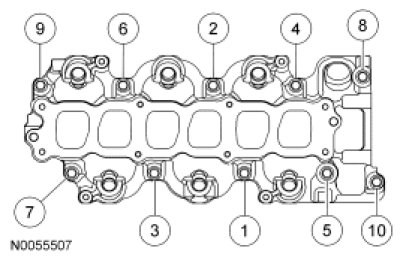

Using new intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.

Tighten in the sequence shown to 10 Nm (89 lb-in).
