Home >> Ford >> 2010 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Latch

Seat Latch

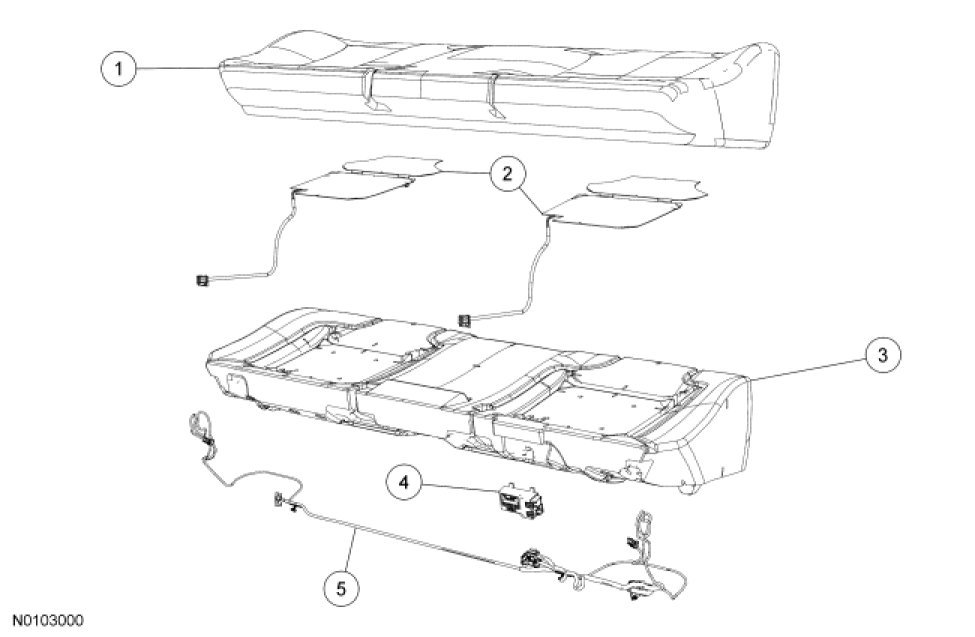

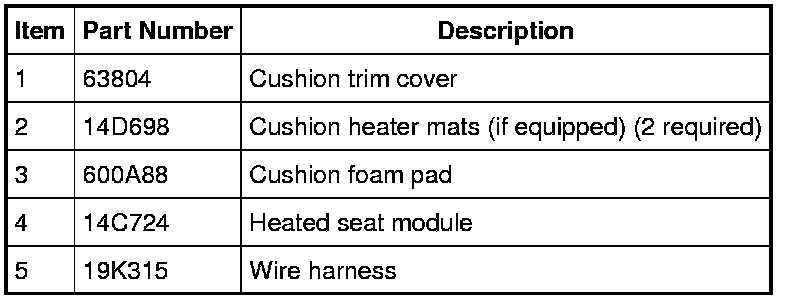

Seat - Exploded View, Second Row

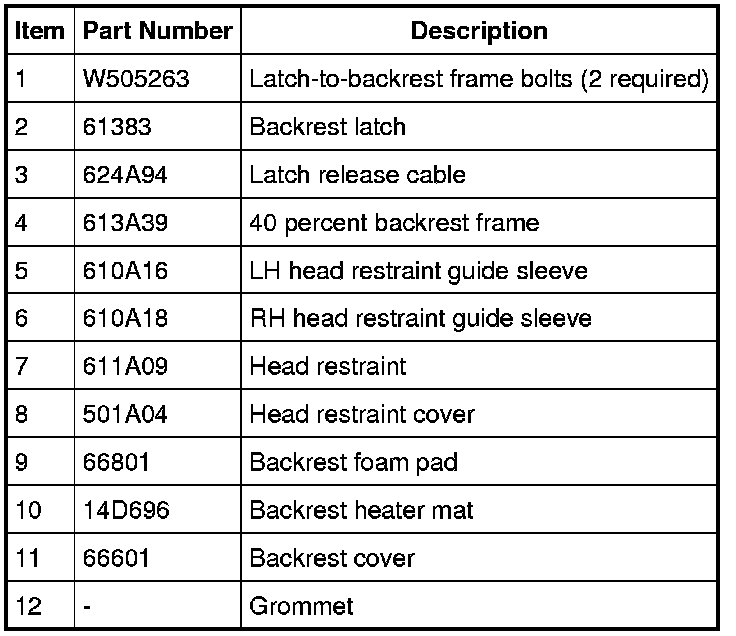

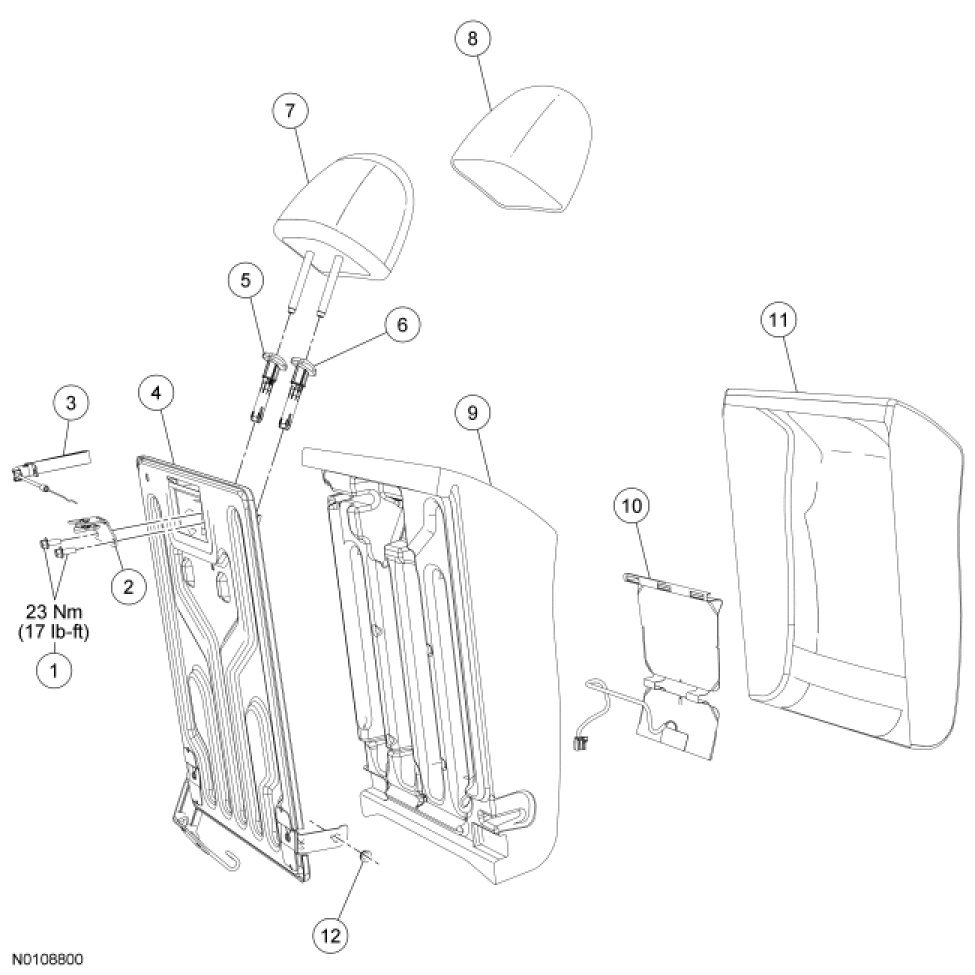

40 Percent Backrest

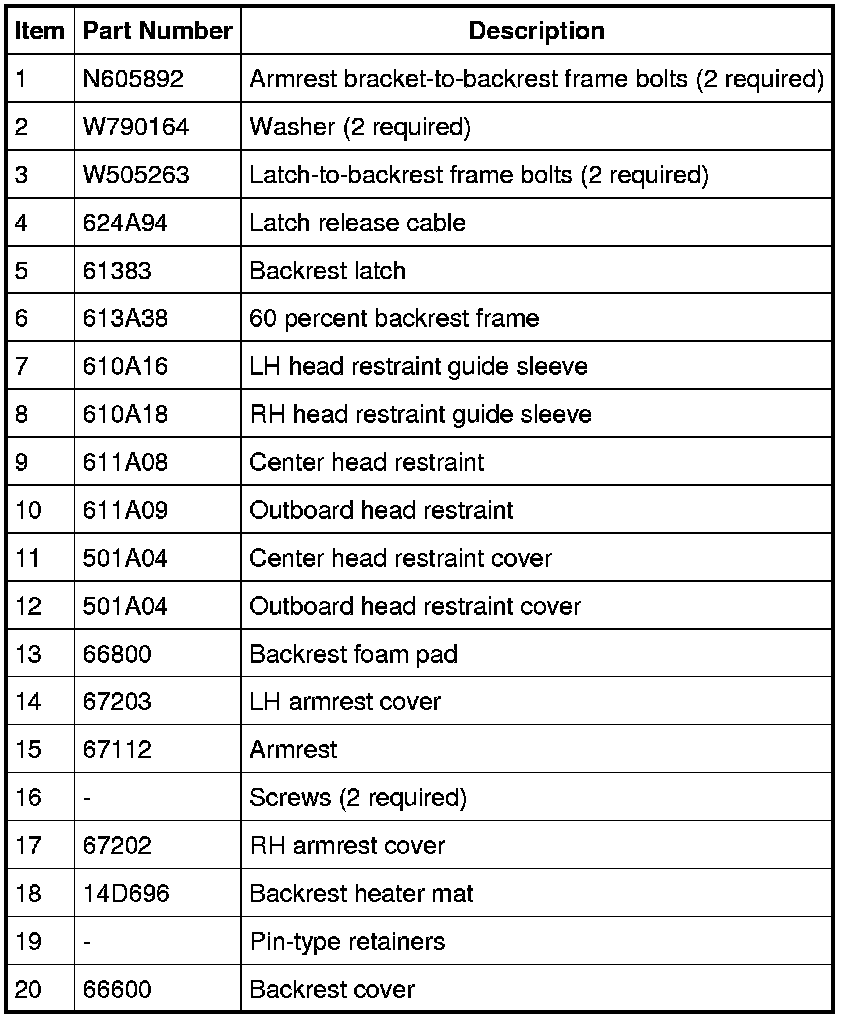

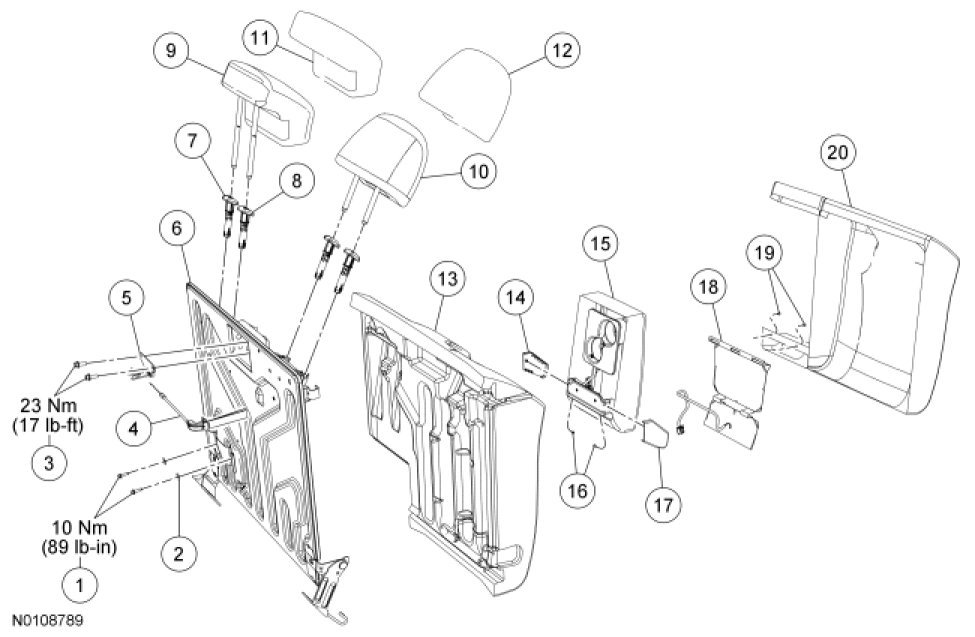

60 Percent Backrest
