Ford
>>
2010
>>
Taurus FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>

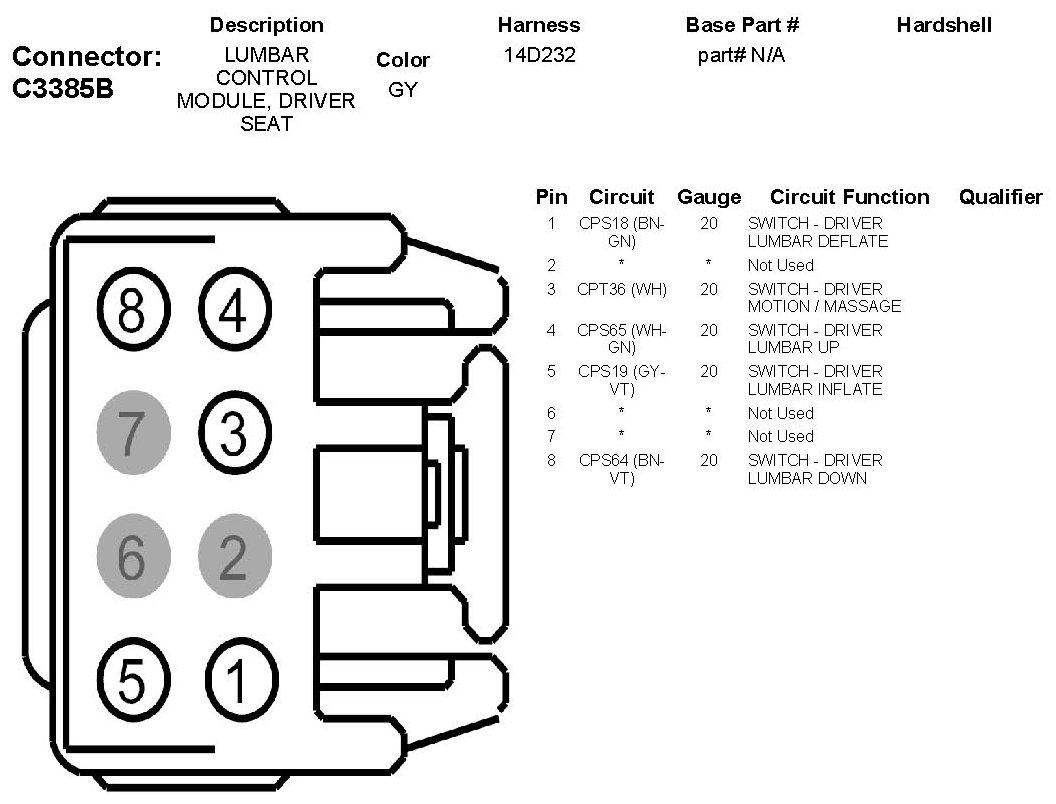

Lumbar Control Module, Driver Seat

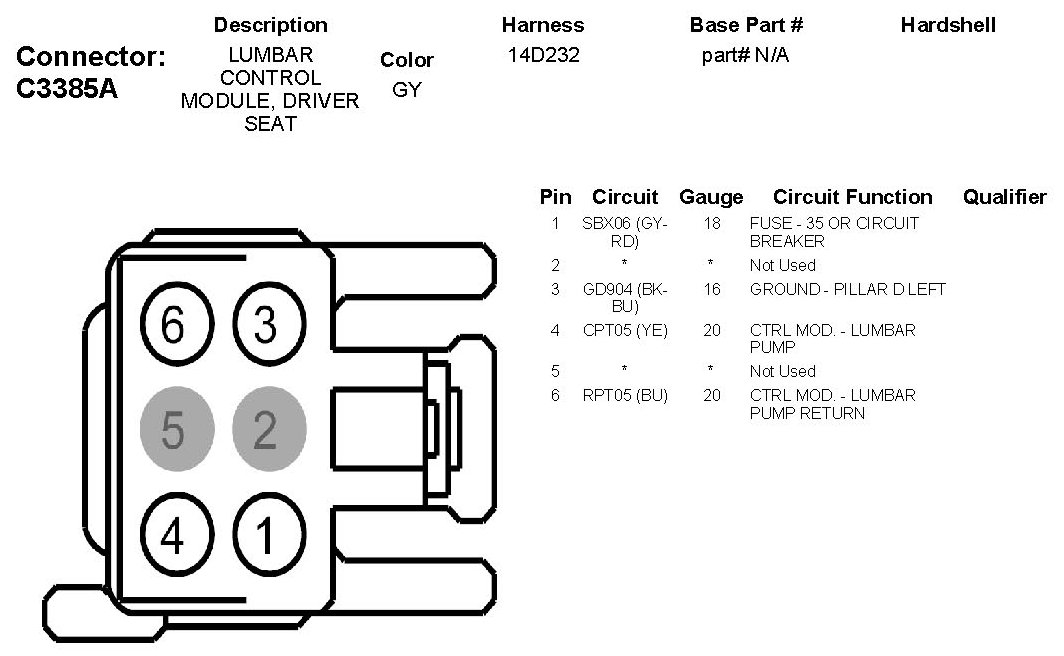

Lumbar Control Module, Driver Seat
