Home >> Ford >> 2010 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Front Display Interface Module (FDIM)

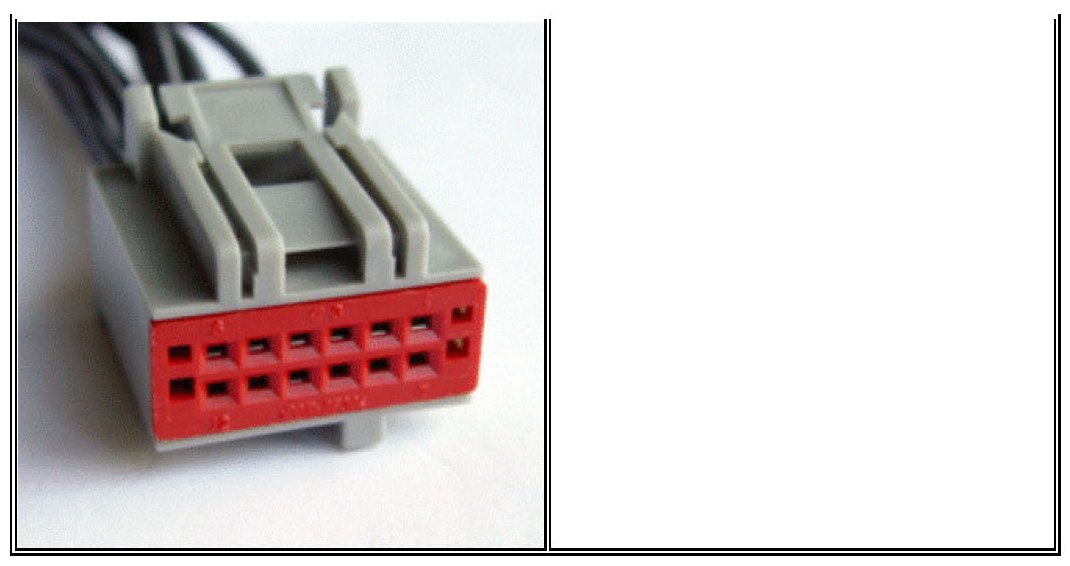

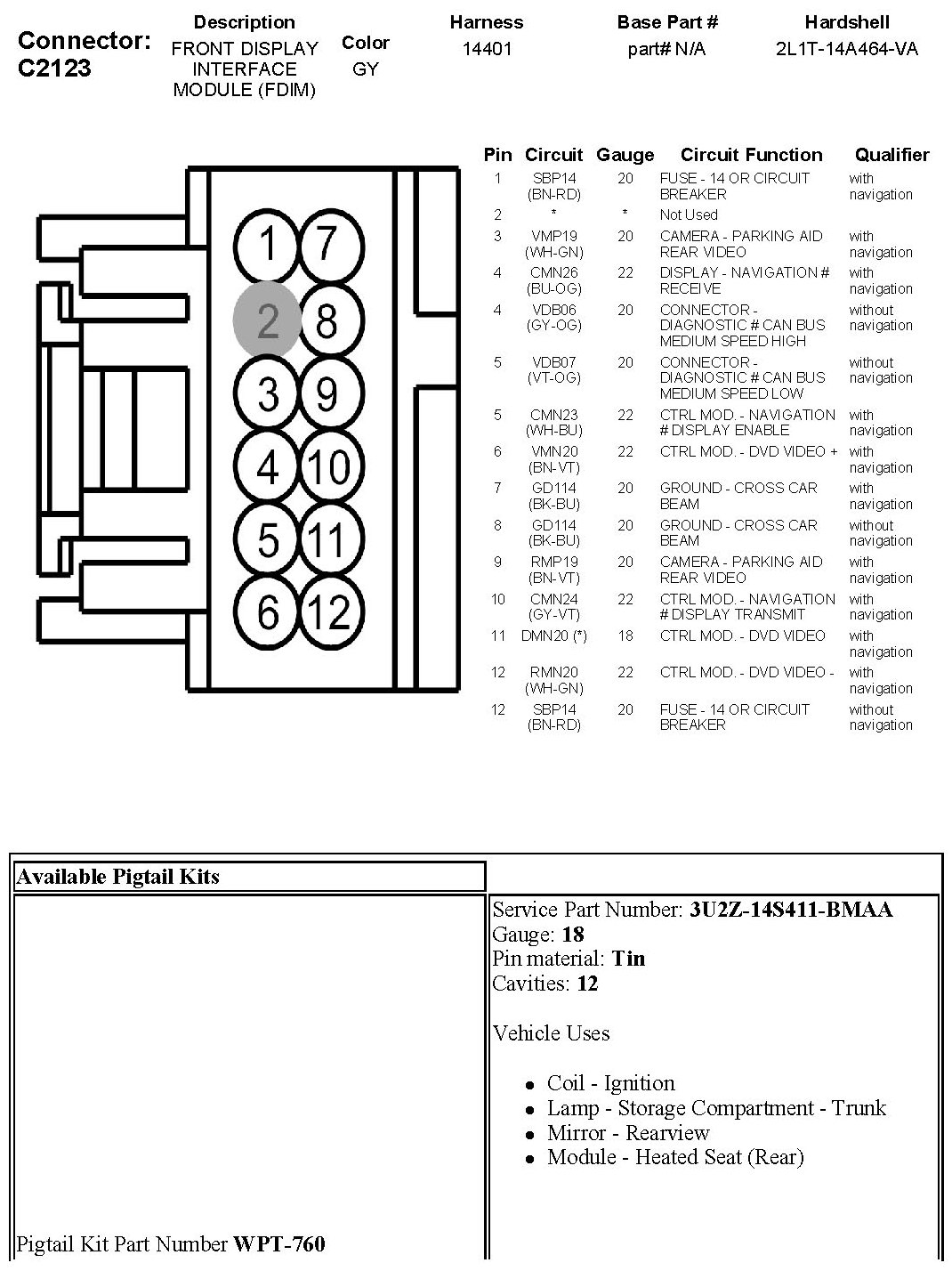

Front Display Interface Module (FDIM)
