Communications Control Module
>>
Accessory Protocol Interface Module (APIM)

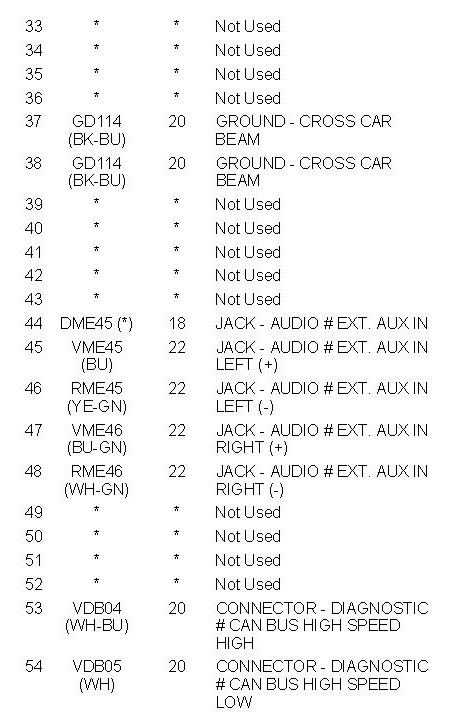

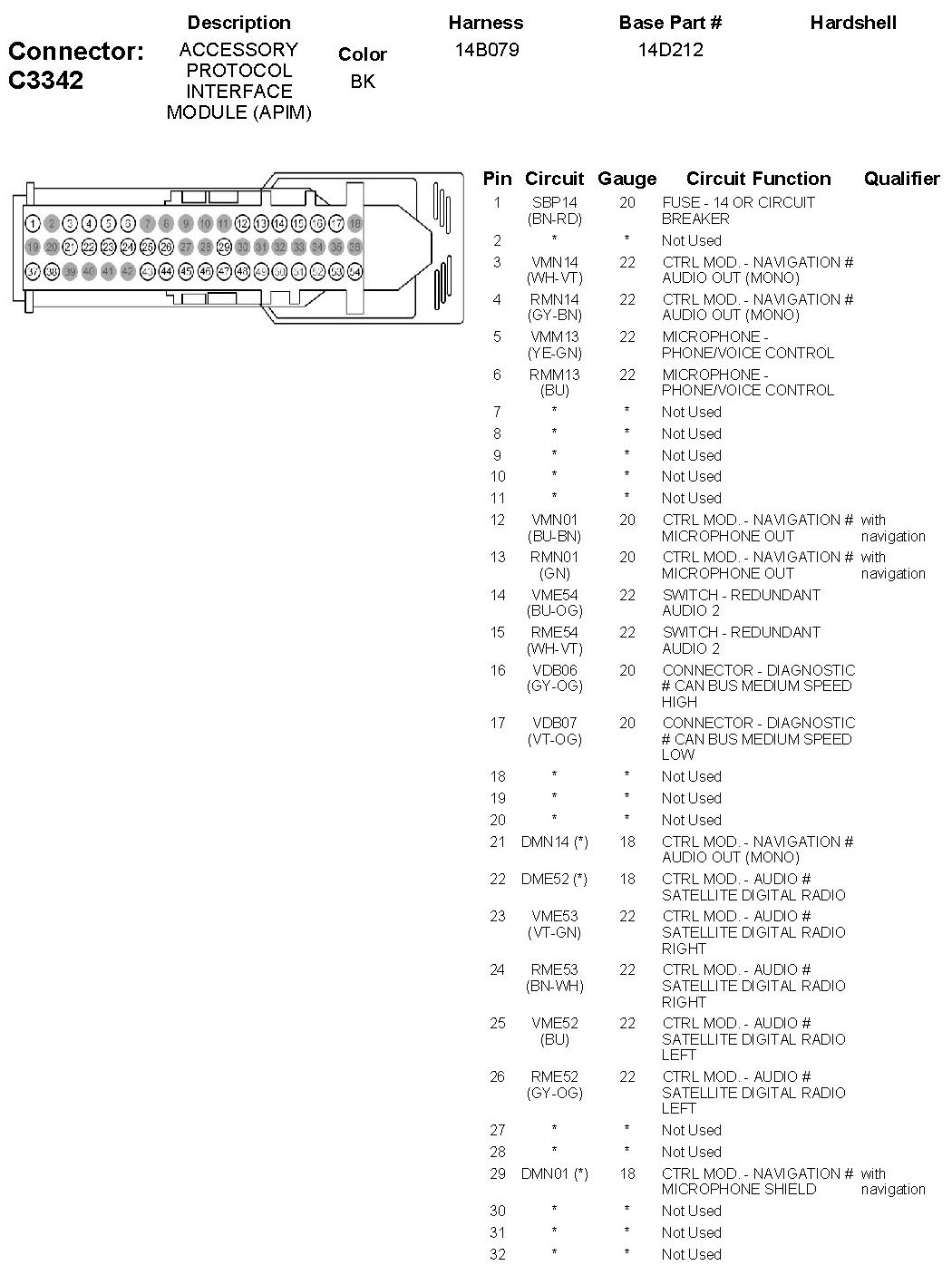

Accessory Protocol Interface Module (APIM)
