Radiator Hose
Radiator Hose
Engine Lubrication Components - Exploded View

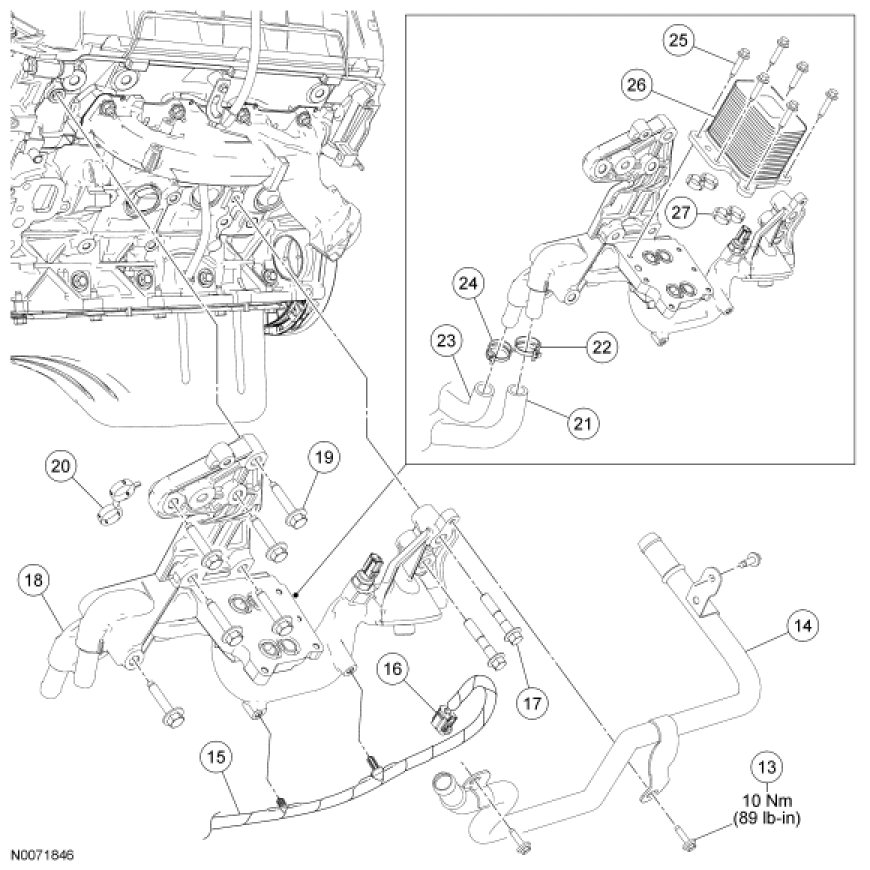

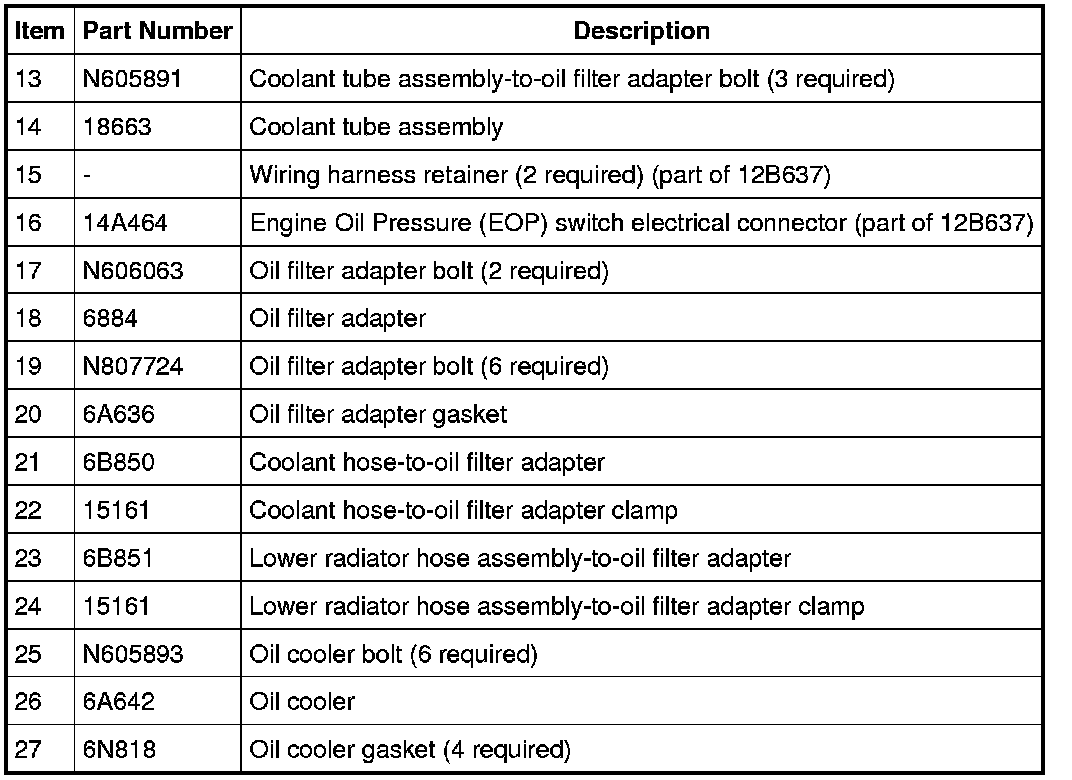

Oil Filter Adapter, Coolant Hoses and Oil Cooler
