Cylinder Block Assembly

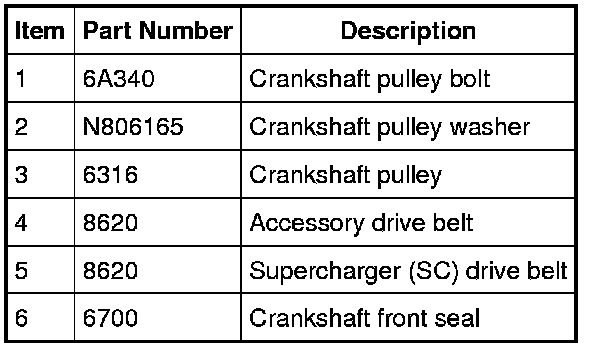

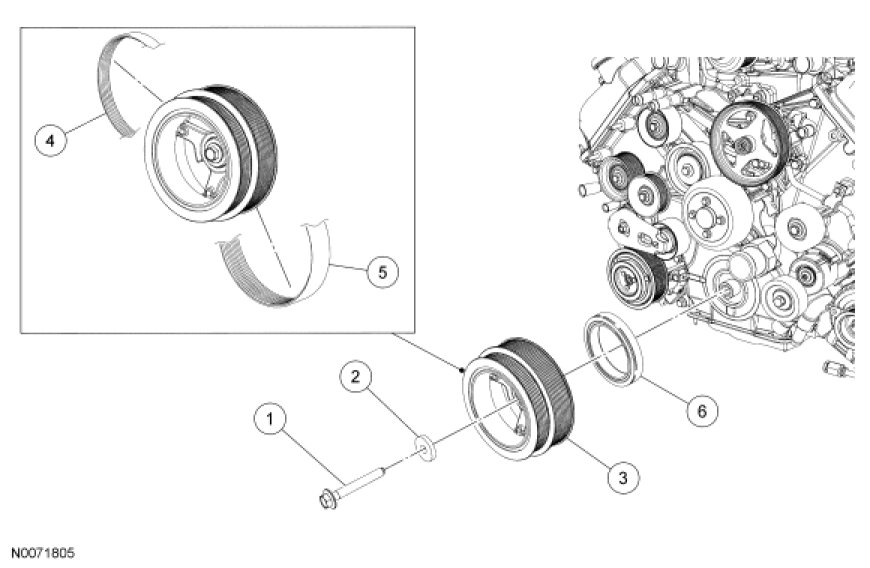

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal
