lemon-mirror
:
Home
>>
Ford
>>
2010
>>
Mustang V6-4.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Front Subframe
>>
Service and Repair
>>

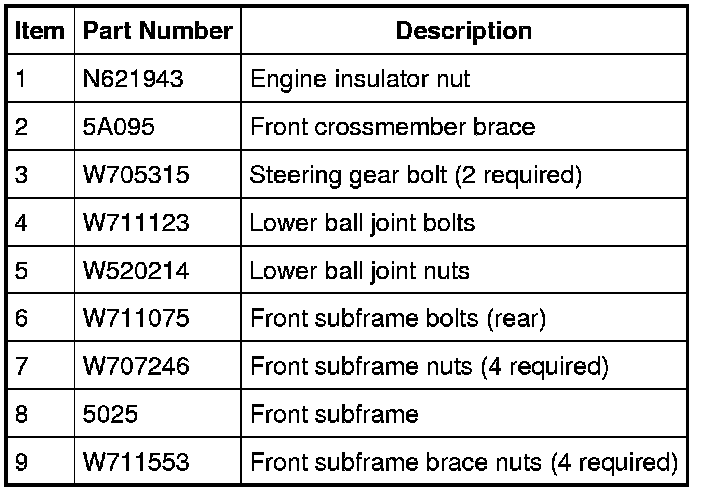

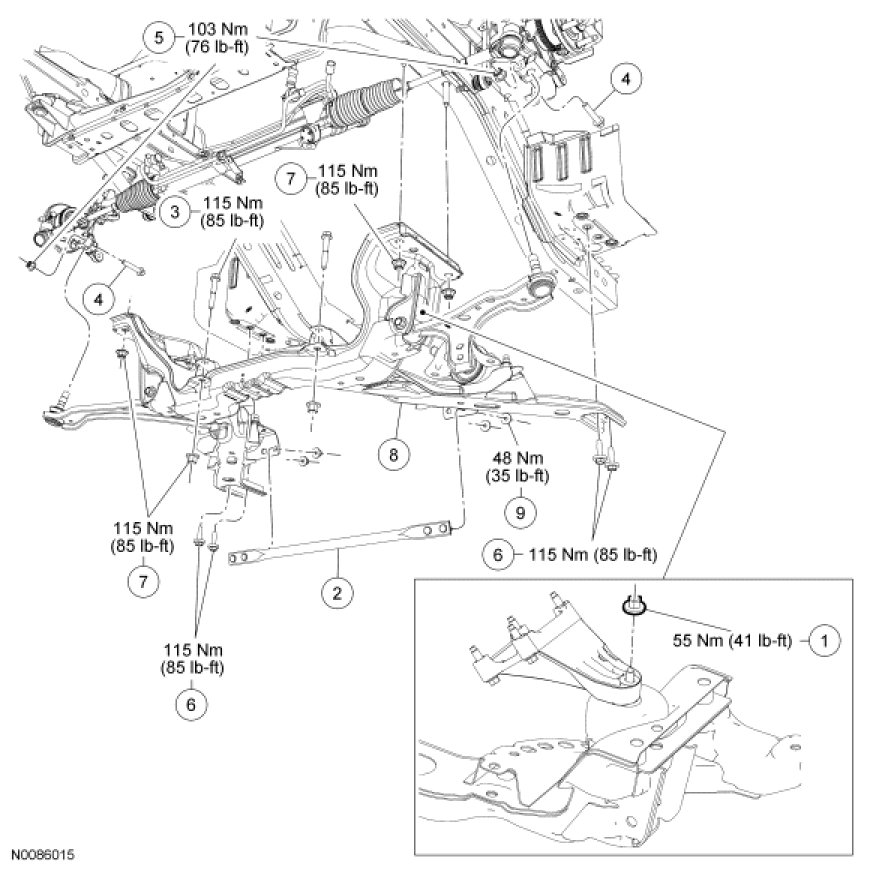

Subframe and Components - Exploded View, Front
Subframe and Components - Exploded View, Front
Subframe
and Components - Exploded View, Front
NOTE:
4.0L
subframe
shown, all others similar.
