Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

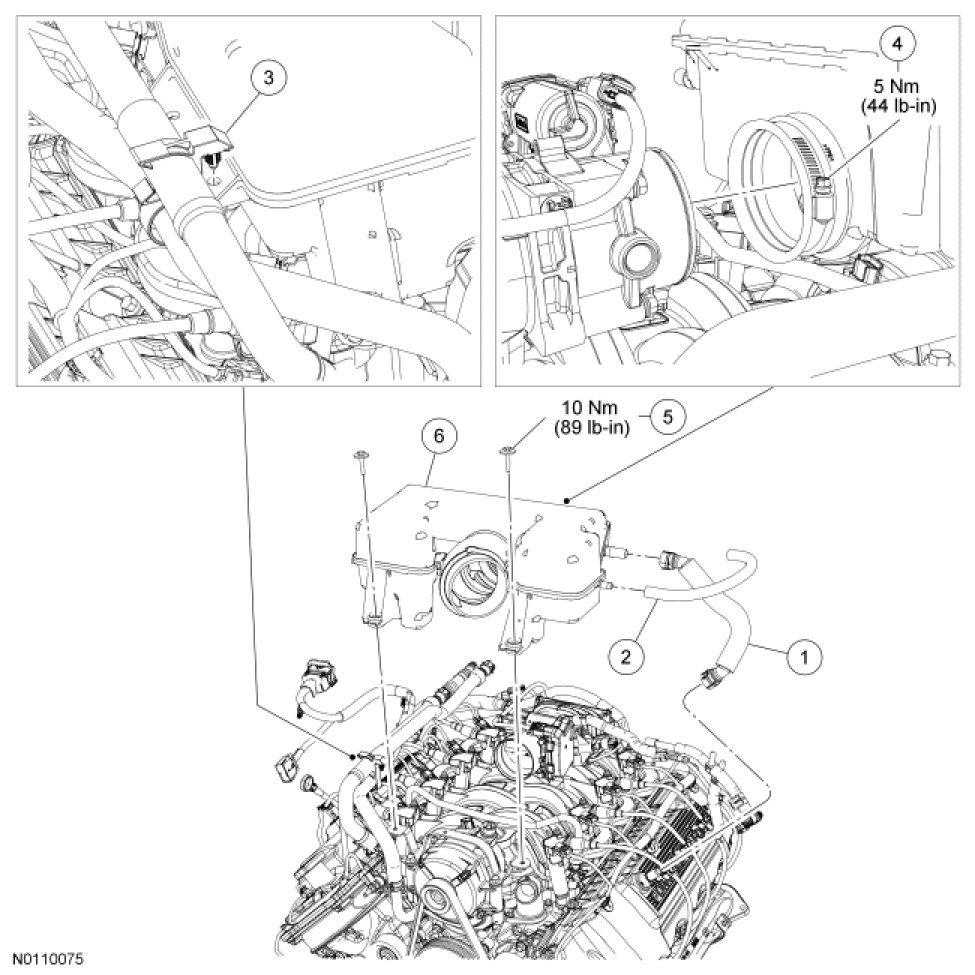

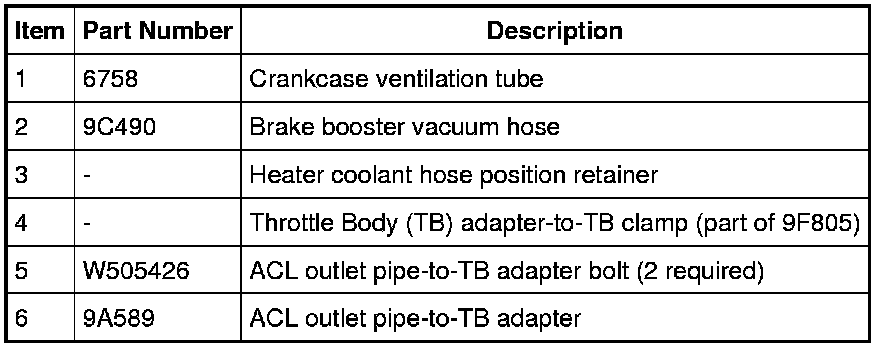

Air Cleaner (ACL) Outlet Pipe-to-Throttle Body (TB) Adapter

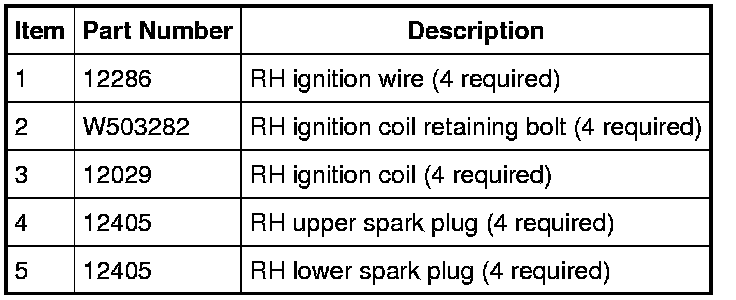

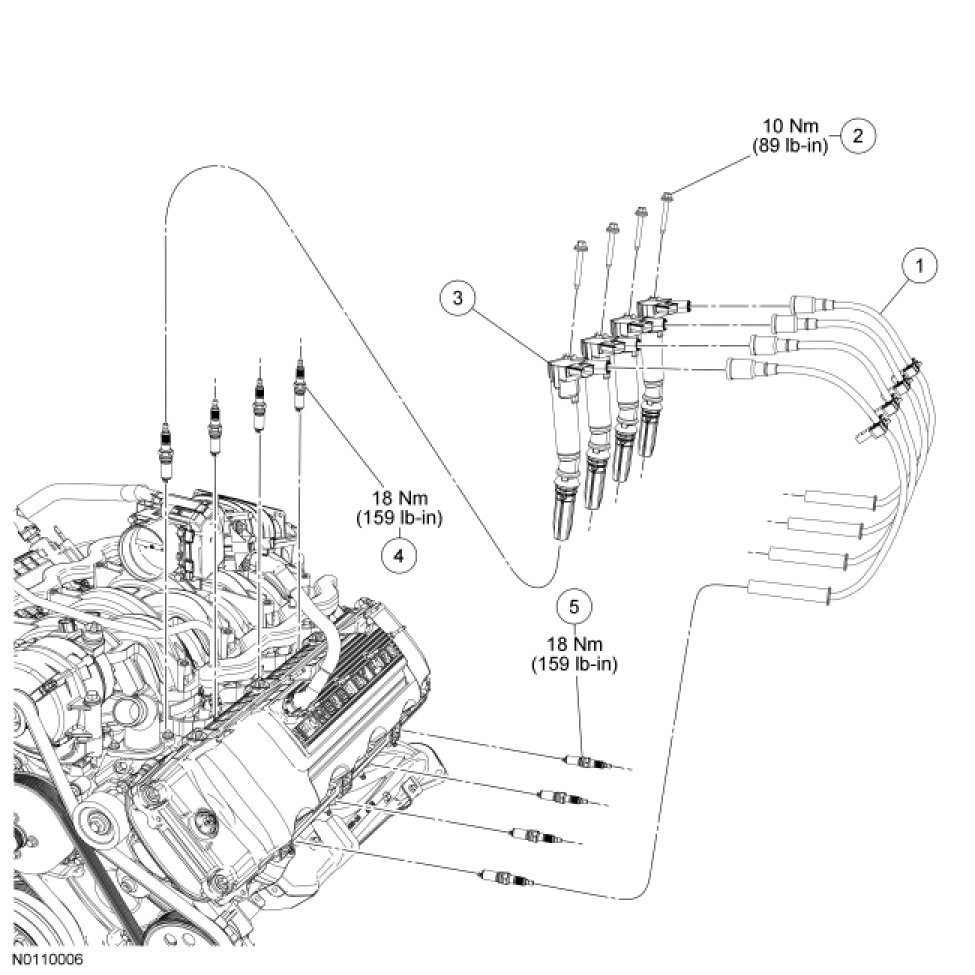

Engine Ignition - RH

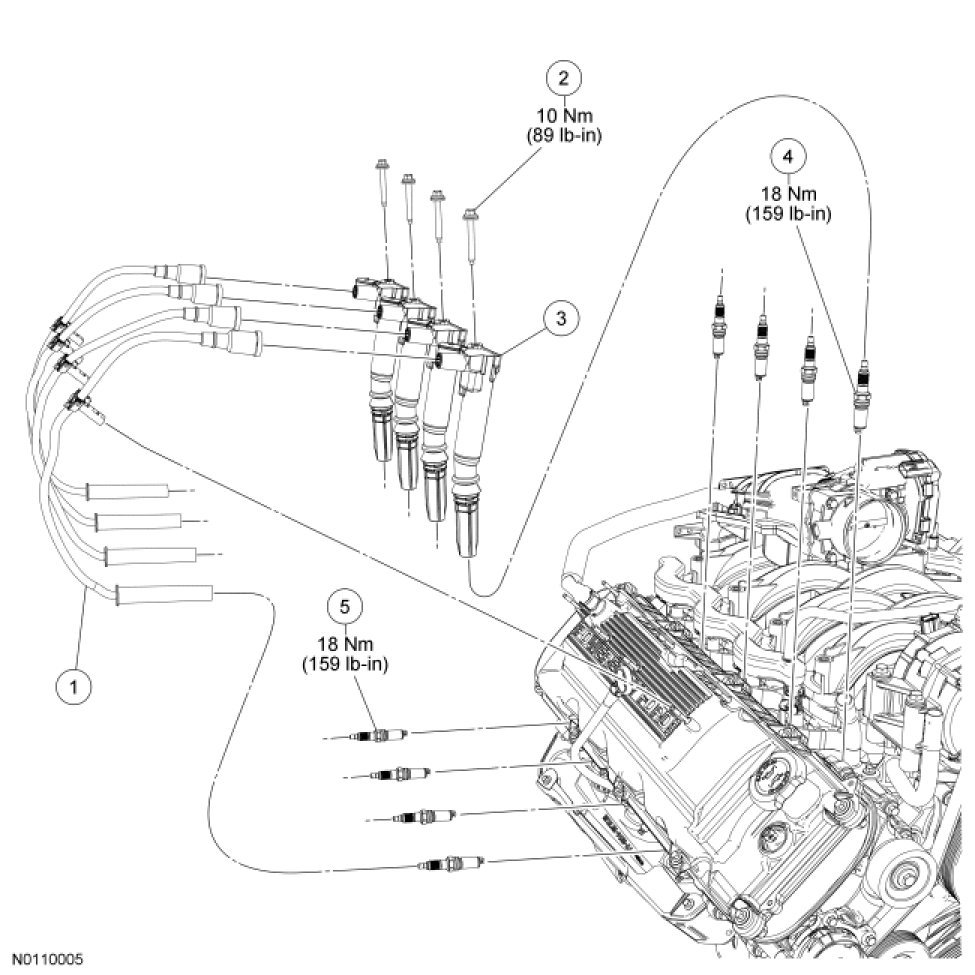

Engine Ignition - LH
