Flex Plate
Flex Plate

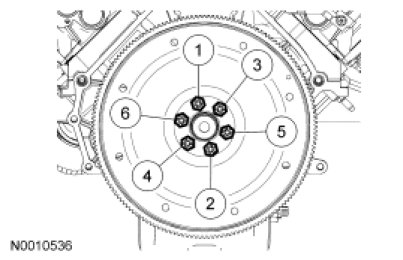

Remove the 6 bolts and the flexplate.
To install, tighten to
80 Nm (59 lb-ft) in the sequence shown.
