Oil Filter, Engine
Oil Filter, Engine

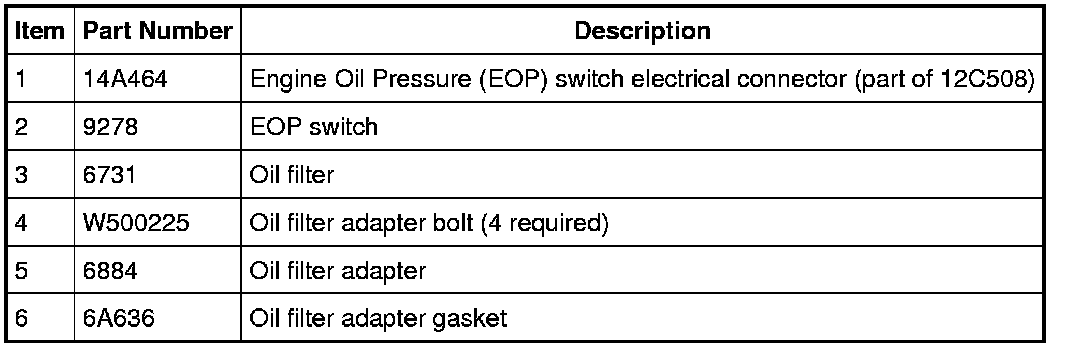

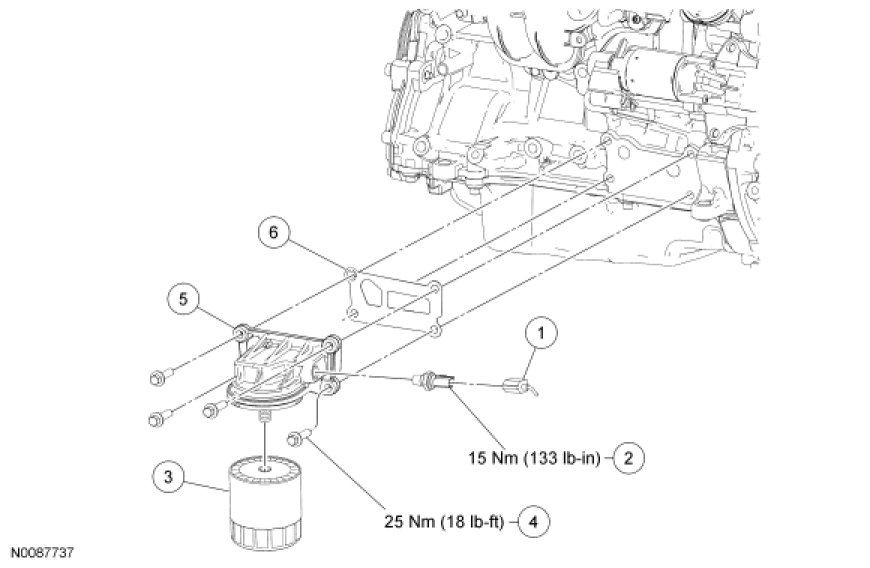

Engine Lubrication Components - Exploded View
Oil Filter Adapter,
Oil Filter
and Engine Oil Pressure (EOP) Switch
