Home >> Ford >> 2010 >> Edge FWD V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Alignment Specifications

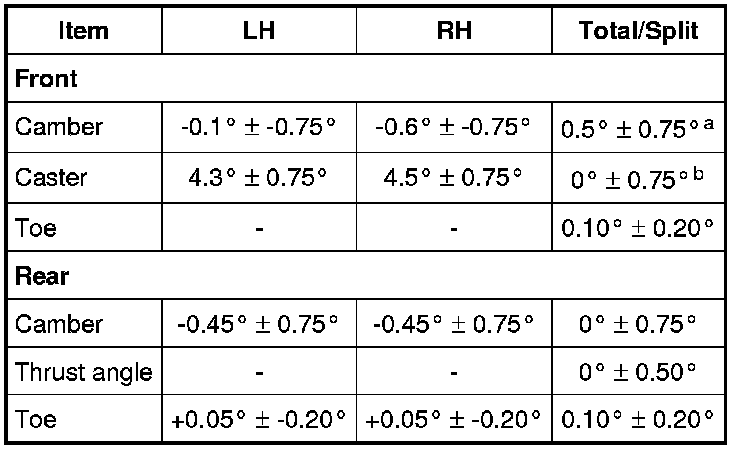

Alignment Specifications

Alignment Specifications

a Camber Total/Split = LH Camber - RH Camber

b Caster Total/Split = LH Caster - RH Caster
